IR100 Universal Infrared Gas Analyzer
14Pages

{{requestButtons}}

Catalog excerpts

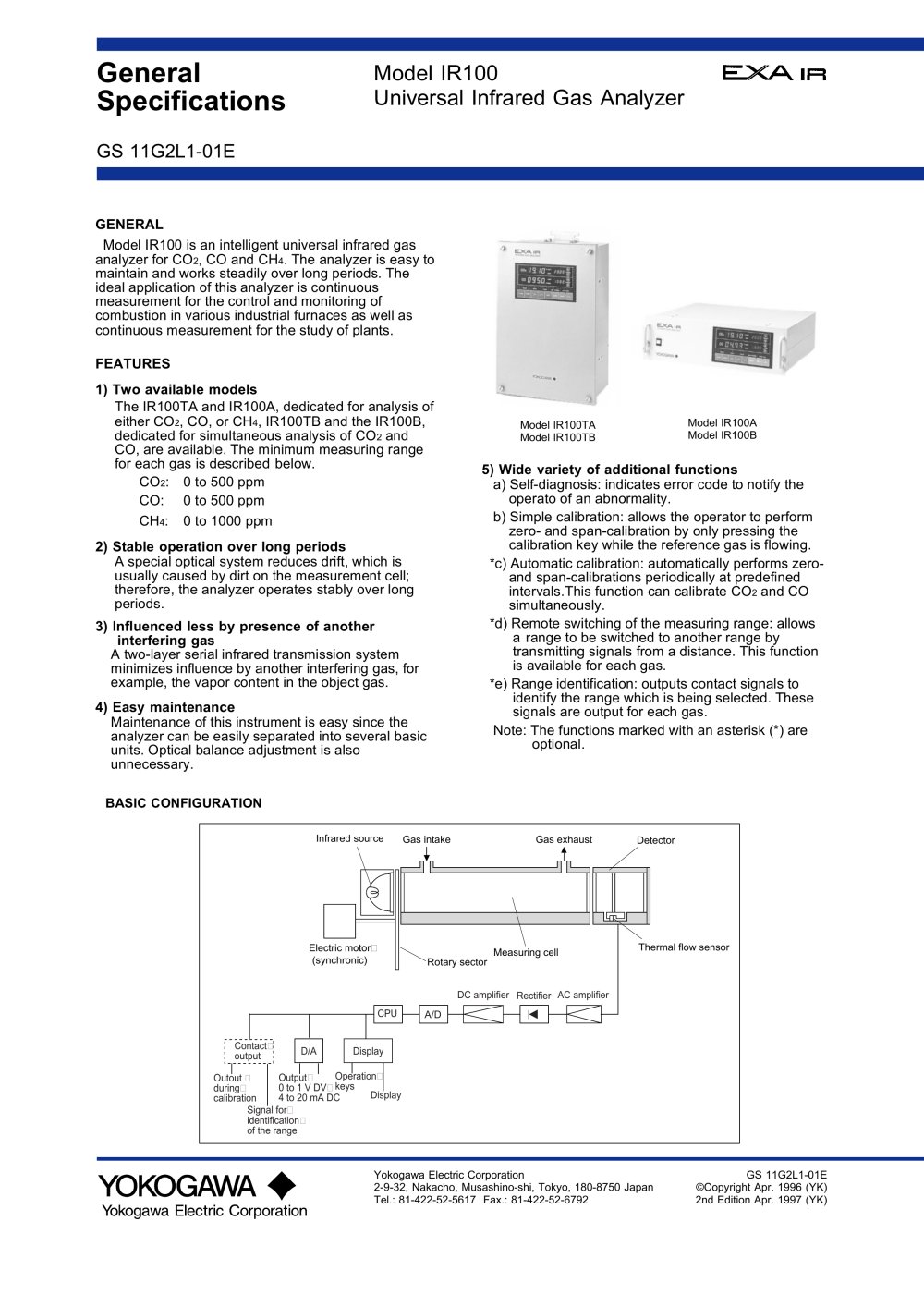

IR100 Universal Infrared Gas Analyzer   - 1

General Specifications Model IR100 Universal Infrared Gas Analyzer GENERAL Model IR100 is an intelligent universal infrared gas analyzer for CO2, CO and CH4. The analyzer is easy to maintain and works steadily over long periods. The ideal application of this analyzer is continuous measurement for the control and monitoring of combustion in various industrial furnaces as well as continuous measurement for the study of plants. FEATURES 1) Two available models The IR100TA and IR100A, dedicated for analysis of either CO2, CO, or CH4, IR100TB and the IR100B, dedicated for simultaneous analysis of CO2 and CO, are available. The minimum measuring range for each gas is described below. CO2: 0 to 500 ppm CO: 0 to 500 ppm CH4: 0 to 1000 ppm 2) Stable operation over long periods A special optical system reduces drift, which is usually caused by dirt on the measurement cell; therefore, the analyzer operates stably over long periods. 3) Influenced less by presence of another interfering gas A two-layer serial infrared transmission system minimizes influence by another interfering gas, for example, the vapor content in the object gas. 4) Easy maintenance Maintenance of this instrument is easy since the analyzer can be easily separated into several basic units. Optical balance adjustment is also unnecessary. 5) Wide variety of additional functions a) Self-diagnosis: indicates error code to notify the operato of an abnormality. b) Simple calibration: allows the operator to perform zero- and span-calibration by only pressing the calibration key while the reference gas is flowing. *c) Automatic calibration: automatically performs zeroand span-calibrations periodically at predefined intervals.This function can calibrate CO2 and CO simultaneously. *d) Remote switching of the measuring range: allows a range to be switched to another range by transmitting signals from a distance. This function is available for each gas. *e) Range identification: outputs contact signals to identify the range which is being selected. These signals are output for each gas. Note: The functions marked with an asterisk (*) are optional. BASIC CONFIGURATION Infrared source Electric motor (synchronic) Measuring cell Thermal flow sensor Rotary sector DC amplifier Rectifier AC amplifier CPU Contact output Operation Output Outout 0 to 1 V DV keys during Display 4 to 20 mA DC calibration Signal for identification of the range Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 Japan Tel.: 81-422-52-5617 Fax.: 81-422-52-6792

Open the catalog to page 1
IR100 Universal Infrared Gas Analyzer   - 2

STANDARD SPECIFICATIONS INSTALLTION CONDITIONS Ambient temperature: Ϫ5Њ to ϩ45ЊC Ambient humidity: 90% RH or less Vibration: should be avoided Direct sunlight: should be avoided Atmospheric gas concentration: CO2 2000 ppm or less CO 100 ppm or less SO2 5 ppm or less CH4 100 ppm or less Horizontal model IR100A (single-gas analyzer), IR100B(dual-gas analyzer) Vertical model IR100TA (single-gas analyzer), IR100TB(dual-gas analyzer) Operating principle: Non-dispersive infrared absorption, deflection method, single infrared-source, single-flux (single-beam) Measured gas: CO2, CO, CH4 Measuring...

Open the catalog to page 2
IR100 Universal Infrared Gas Analyzer   - 3

MODEL AND SUFFIX CODE 1. IR100A Horizontal Single-gas Analyzer Suffix Code Model IR100A Measured gas -1 -2 -3 Primary range A B C D E F G H J K L M P Q R S Secondary range A B C D E F G H J K L M N Power supply -5 -6 -7 -8 -3 -4 Style A B C Piping A J Panel Option Code Additional function Description Single-gas analyzer CO CO2 CH4 0 to 500 ppm (not available for CH4) 0 to 1000 ppm 0 to 2000 ppm 0 to 2500 ppm 0 to 5000 ppm 0 to 1% 0 to 2% 0 to 5% 0 to 10% 0 to 20% 0 to 50% 0 to 100% 0 to 3% 0 to 30% 0 to 40% 0 to 70% 0 to 500 ppm (not available for CH4) 0 to 1000 ppm 0 to 2000 ppm 0 to 2500...

Open the catalog to page 3
IR100 Universal Infrared Gas Analyzer   - 4

IR100B Horizontal Dual-gas Analyzer Model IR100B Measured gas -G Primary range of E F CO2 (Note 1) G H J K L M Option Code Suffix Code Secondary range of 1 2 CO2 (Note 2) N Primary range of CO A (Note 1) B C D E F G H J K L M Secondary range of CO (Note 2) Power supply Piping Panel Description Dual-gas analyzer CO2 + CO CO2/CO (Primary Gas/secondary)gas Additional function x2 x 2.5 Not available 100 V AC, 50 Hz 100 V AC, 60 Hz 115 V AC, 50 Hz 115 V AC, 60 Hz 220 V AC, 50 Hz 220 V AC, 60 Hz Desk top 19-inch rack-mounted Panel-mounted 1/4 NPT Rc 1/4 English Japanese Automatic calibration /P...

Open the catalog to page 4
IR100 Universal Infrared Gas Analyzer   - 5

IR100TA Vertical single-gas Analyzer Model Suffix Code IR100TA Measured -1 gas -2 -3 Primary range A B C D E F G H J K L M P Q R S Secondary range A B C D E F G H J K L M N Power supply -5 -6 -7 -8 -3 -4 Style C D Piping A J Panel Option Code Additional function Description Single-gas analyzer CO CO2 CH4 0 to 500 ppm (not available for CH 4) 0 to 1000 ppm 0 to 2000 ppm 0 to 2500 ppm 0 to 5000 ppm 0 to 1% 0 to 2% 0 to 5% 0 to 10% 0 to 20% 0 to 50% 0 to 100% 0 to 3% 0 to 30% 0 to 40% 0 to 70% 0 to 500 ppm (not available for CH 4) 0 to 1000 ppm 0 to 2000 ppm 0 to 2500 ppm 0 to 5000 ppm 0 to 1%...

Open the catalog to page 5
IR100 Universal Infrared Gas Analyzer   - 6

IR100TB Vertical Dual-gas Analyzer Suffix Code Description Model Option Code IR100TB Dual-gas analyzer CO2 + CO CO2/CO (Primary Gas/secondary)gas Measured gas -G Primary range E 0 to 5000 ppm (0 to 500 ppm cannot be specified for CO) F 0 to 1% of CO2 (Note 1) G 0 to 2% H 0 to 5% J 0 to 10% K 0 to 20% L 0 to 50% M 0 to 100% Secondary range 1 x2 2 x 2.5 of CO2 (Note 2) N Not available Primary range of CO A 0 to 500 ppm (Note 1) B 0 to 1000 ppm C 0 to 2000 ppm D 0 to 2500 ppm E 0 to 5000 ppm F 0 to 1% G 0 to 2% H 0 to 5% J 0 to 10% K 0 to 20% L 0 to 50% M 0 to 100% Secondary range of CO 1 x2...

Open the catalog to page 6
IR100 Universal Infrared Gas Analyzer   - 7

<> <> Measuring Range (Combination of Two Ranges or Gases) (1) Combination of two ranges for IR100A and for IR100TA Secondary Range Primary Range (2) Combination of two gases for IR100B and for IR100TB Secondary Gas(CO) 0 to 500ppm 0 to 1000ppm Not available 0 to 2000ppm 0 to 2500ppm 0 to 5000ppm 0 to 1% 0 to 2% ‫ء‬ 0 to 5% 0 to 10% 0 to 20% 0 to 50% 0 to 100% : Both gases can be measured. Note that for the secondary range of the IR100B, you can specify the range as either two or 2.5 times that of the first range. However, for a section marked with ‫ء‬ the combination of 0 to 2/5% CO 2 and...

Open the catalog to page 7
