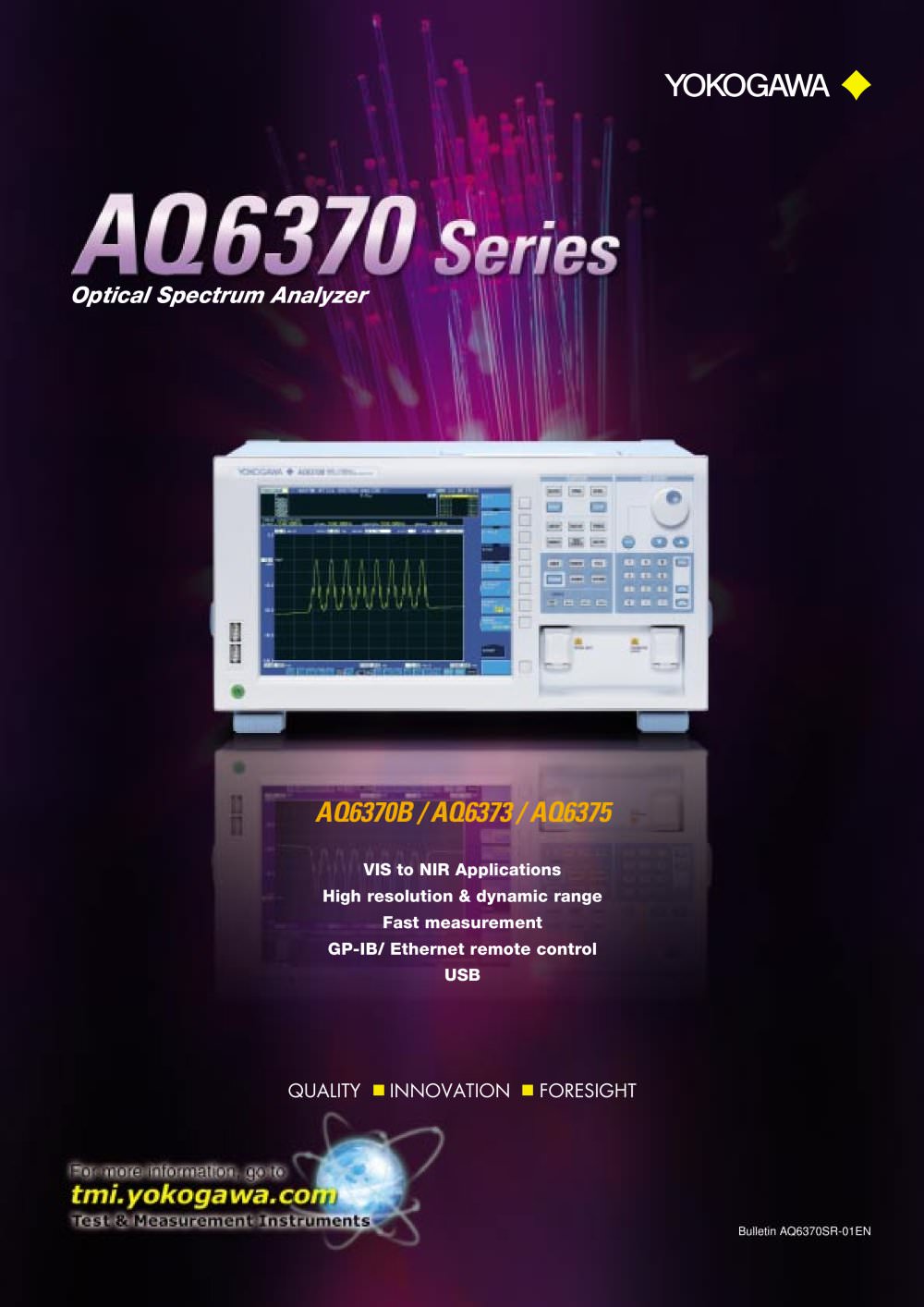

Bulletin AQ6370SR-01EN Optical Spectrum Analyzer VIS to NIR Applications High resolution & dynamic range Fast measurement GP-IB/ Ethernet remote control USB QUALITY INNOVATION FORESIGHT AQ6370B / AQ6373 / AQ6375
Open the catalog to page 1
3 EE-LED Acetylene absorption cell Calibration output ccoovveerraaggee peerrffoorrmaanccee AQ6370B, Peak ±0.4nm, resolution setting 0.02 nm, High dynamic mode:ON, typical AQ6370B, Sensitivity setting: HIGH3, High dynamic mode: OFF, typical Exxcceelllleentt eeffffiicciieenccyy Eaassyy ttoo Keeeep Accccurraattee AQ6375 can cover the entire wavelength range from 350nm through 2400nm. With an advanced monochromator, faster electrical circuits, and noise reduction techniques, the AQ6370 series achieves fast measurement speed even when measuring a steep spectrum from DFB-LD or DWDM signals, or...
Open the catalog to page 2
5 Various Analysis Functions Point the item to modify Modify settings using the keys on the screen - Simultaneous multi-trace display - Calculation between traces (subtraction between traces) - Max/Min hold - Front panel operation proven intuitive and easy to use by our many of users. - Even easier with a mouse. - The keyboard helps enter labels and file names. WDM (OSNR) Analysis Function Result table Easy to find a particular file out of thousands of files in internal and external storage. Building Automated Test System LabVIEW® Driver available (Free space input) (Wavelength reference...
Open the catalog to page 3
6 AQ6370B 600 to 1700nm STANDARD Wavelength accuracy : ±0.02 nm Wavelength resolution : 0.02 to 2 nm Max input power : +20 dBm Level sensitivity : -90 dBm Dynamic range : 70dB (typ) Single-mode and Multimode fibers Built-in wavelength reference source for wavelength calibration and optical alignment Universal type optical connectors Optimized performance and functions for WDM systems - High wavelength linearity and Level flatness (1450 to 1620nm) - WDM (OSNR) analysis and EDFA analysis X-axis : nm / THz AQ6375 1200 to 2400nm Wavelength accuracy : ±0.05 nm Wavelength resolution : 0.05 to 2...
Open the catalog to page 4
7 NETWORK TCP/IP Remote control & File transfer AQ6370B Viewer AQ6370B connected to LAN Menu bar Status bar Panel key menu SHORT wavelength AQ6373 350 to 1200nm Wavelength accuracy: ±0.05 nm Wavelength resolution : 0.02 to 10 nm and 0.01nm (400 to 470nm) Max safe input power : +20 dBm Level sensitivity : -80 dBm Dynamic range : 60dB Single-mode, Multimode, and Large-core fibers Built-in optical alignment source Wavelength calibration with an external reference source Various analysis functions including the Color analysis function for VIS The AQ6370Viewer is a package of PC application...
Open the catalog to page 5
8 ë1 Tx1 Optical ë2 amplifier Tx2 ë3 Tx3 ë4 Tx4 ën TxN MUX AQ6370B SIMPLE EDFA TEST The ASE interpolation method is used to measure gain, NF, and key parameters for optical fiber amplifier evaluation. With WDM-NF analysis function, up to 1024 channels of multiplexed signals can simultaneously be tested. An ASE level for NF measurements is calculated by using a curve-fit function for each WDM channel. The curve-fit and source spontaneous emission (SSE) suppress function enhance a measurement accuracy. TRANSCEIVER / LD TEST In conjunction with bit error rate test (BERT) equipment, the AQ6370B...
Open the catalog to page 6
9 Major Specifications Items Electrical interface Remote control * Data storage Display ** Printer Dimensions Mass Power requirement Environmental conditions Specifications GP-IB x 2 (standard/controller), RS-232, Ethernet, USB 1.1 x2, PS/2 (keyboard), SVGA output, Analog output port, Trigger input port, Trigger output port GP-IB, RS-232, Ethernet (TCP/IP) AQ6317 series compatible commands (IEEE488.1) and IEEE488.2 Internal storage: Max. 128M Bytes, Internal memory: 64 Traces, 64 programs, 3 template lines, External storage: USB storage (memory/HDD), FAT32 format File types: CSV (text),...
Open the catalog to page 7
10 Major Specifications AQ6373 Horizontal scale: Wavelength display mode. Actual wavelength resolution varies according to a measured wavelength. Actual resolution at 10nm resolution setting is about 8nm at most. Vertical scale: Absolute power display mode. High dynamic mode: OFF, Number of sampling: 1001, Average number: 1, Span: 100 nm excluding 450 to 470 nm and 690 to 700 nm. *1 : *2 : *3 : *4 : Items Wavelength range *1 Span *1 Wavelength accuracy *1 Wavelength resolution setting *1, *2 Minimum sampling resolution *1 Number of sampling Level sensitivity setting High dynamic mode Level...
Open the catalog to page 8
11 Unit : mm (approx. inch) REAR VIEW 13 426 13 20 221 (0.51) (16.77) (0.51) ( 0.79) (8.70) ( 14.8 32 427 32 0.58) (1.26) (18.22) (1.26) Functions Factory Installed Options Built-in Printer Optical connector adapters (AQ6370B&AQ6375) For optical input port AQ9447 Connector Adapter /FC, /SC, /ST For calibration output port AQ9441 Universal Adapter /RFC, /RSC, /RST Dimensions An optional built-in thermal printer is provided to instantly print out a screenshot of the display, the analysis results, a marker list and a macro program list. Accessory: printer roll paper (1 roll) Measurement...
Open the catalog to page 9
Related Products Tunable Laser Source AQ2200-136 White Light Source Broadband AQ4305 S+C+L band Multi Application Test System AQ2200 system Modular Platform Models and Suffix codes AQ6370B & AQ6375 AQ6373 Accessories (optional) Model Suffix code Descriptions 735371 AQ6370 Viewer (Including AQ6370, AQ6370B, AQ6375, and AQ6373 Viewers) 810804602 AQ9447 Connector Adapter Connector type -FCC FC type -SCC SC type -STC ST type 813917321 AQ9441 Universal Adapter Connector type -FCC FC type -SCC SC type -STC ST type 751535-E5 19 inch Rack mount kit B9988AE Printer roll paper (10 m roll, 10 rolls/1...
