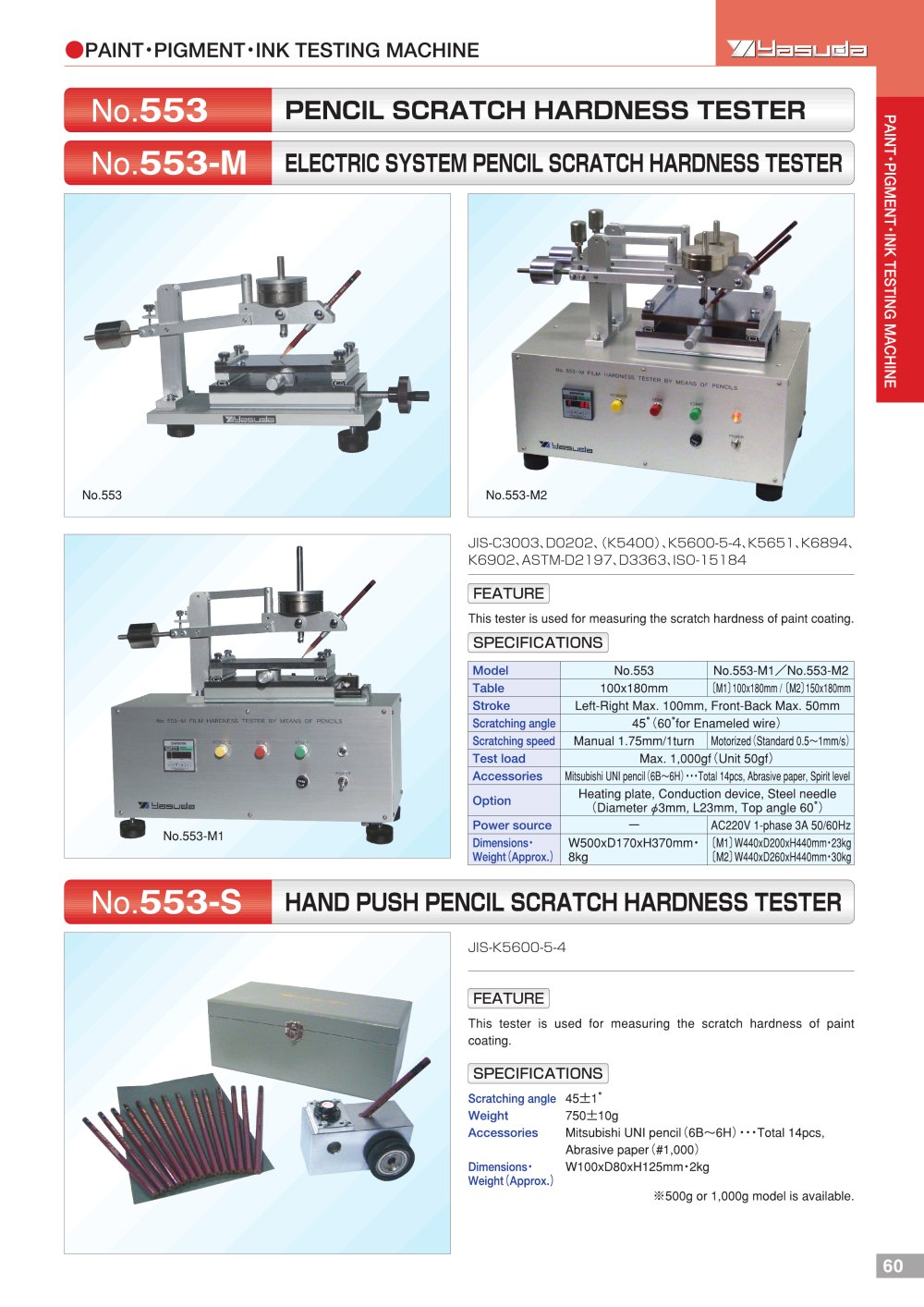

ÏPAINT-PIGMENT-INK TESTING MACHINE
PENCIL SCRATCH HARDNESS TESTER
ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER
N0.553-M2
No.553
JIS-C3003, D0202. (K5400), K5600-5-4> K5651. K6894, K6902, ASTM-D21 97. D3363, ISO-1 51 84
FEATURE
This tester is used for measuring the scratch hardness of paint coating.
SPECIFICATIONS
Model
No.553
No.553-M1/No.553-M2
Table
100x180mm
(M1)100x180mm/[M2)150x180mm
Stroke
Left-Rïght Max. 100mm, Front-Back Max. 50mm
Scratching angle
45° (60°for Enameled wire)
Scratching speed
Manual 1.75mm/1 turn Motorized (Standard 0.5—1 mm/s)
Test load
Max. 1,000gf(Unit50gf)
Accessories
Mitsubishi UNI pencil (6B~6H) • ■ -Total 14pcs, Abrasive paper, Spirit level
Option
Heating plate, Conduction device, Steel needle (Diameter e43mm, L23mm, Top angle 60°)
Power source
-
AC220V1-phase 3A50/60HZ
Dimensions-Weight(Approx.)
W500xD170xH370mm-8kg
(M1)W440xD200xH440mm-23kg [M2)W440xD260xH440mm-30kg
N0.553-M1
HAND PUSH PENCIL SCRATCH HARDNESS TESTER
JIS-K56D0-5-4
FEATURE
This tester is used for measuring the scratch hardness of paint coating.
SPECIFICATIONS
Scratching angle 45+1'
Weight Accessories
Dimensions-Weight (Approx.i
750±10g
Mitsubishi UNI pencil (6B—6H) ■ Abrasive paper (#1,000) W100xD80xH 125mm • 2kg
•Total 14pcs,
S£500g or 1,000g model is available.
