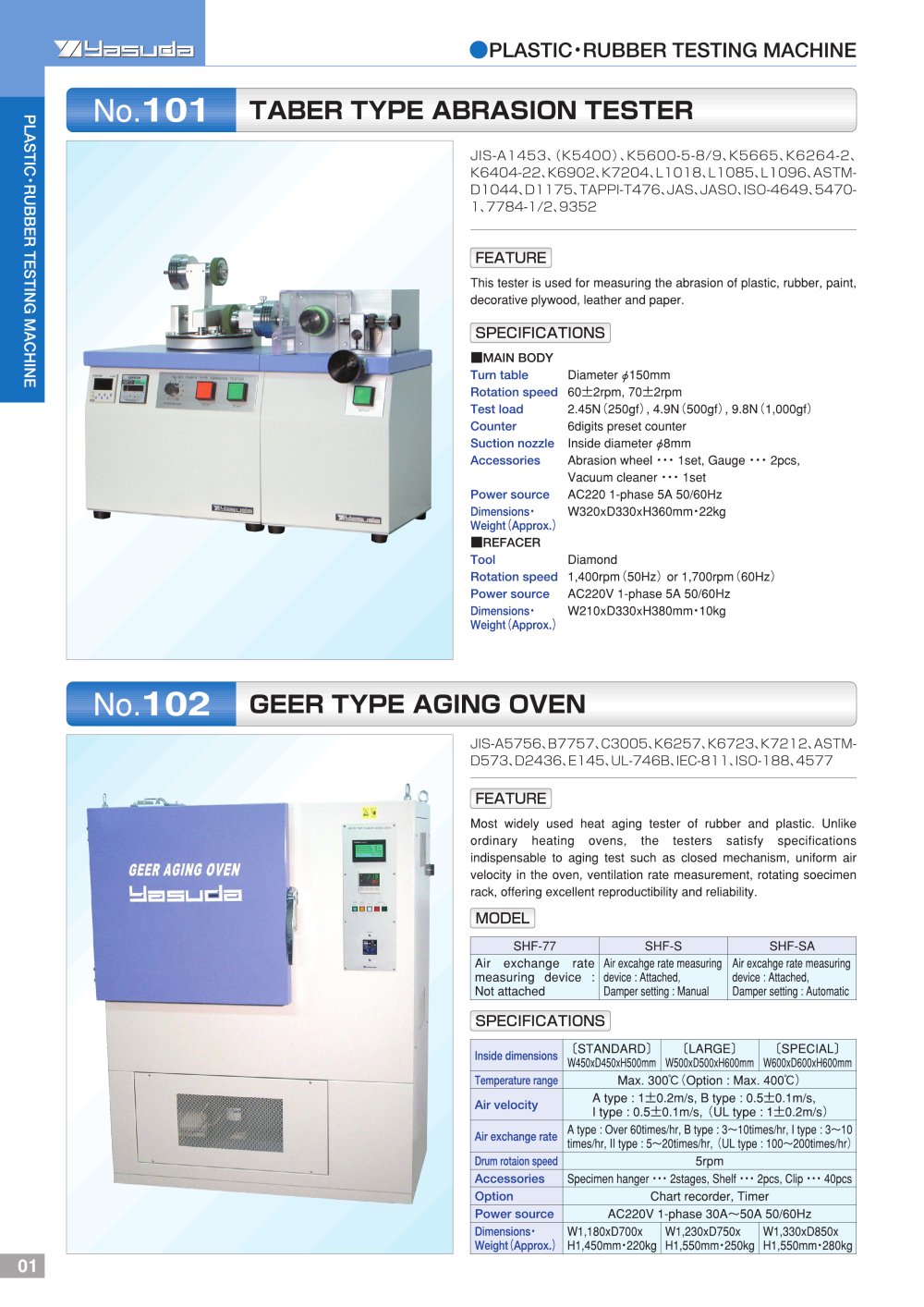

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } IPLASTIC-RUBBER TESTING MACHINE TABER TYPE ABRASION TESTER JIS-A1 453, (K5400), K5600-5-8/9, K5665, K6264-2, K6404-22, K6902, K7204, L1 01 8. L1 085, L1 096, ASTM-□ 1 044, D1 1 75, TAPPI-T476, JAS, JASO, ISO-4649,5470­1,7784-1/2,9352 FEATURE This tester is used for measuring the abrasion of plastic, rubber, paint, décorative plywood, leather and paper. SPECIFICATIONS ■MAIN BODY Turn table Rotation speed Test load Counter Suction nozzle Accessories Power source Dimensions-Weight (Approx.) ■REFACER Tool Rotation speed Power source Dimensions-Weight (Approx.) Diameter ^150mm 60±2rpm, 70±2rpm 2.45N (250gf), 4.9N (500gf), 9.8N (1,000gf) 6digits preset counter Inside diameter jS8mm Abrasion wheel • • • 1 set, Gauge 2pcs, Vacuum cleaner ••• 1set AC220 1-phase 5A 50/60Hz W320xD330xH360mm • 22kg Diamond 1,400rpm(50Hz) or 1,700rpm (60Hz) AC220V 1-phase 5A 50/60HZ W210xD330xH380mm • 10kg GEER TYPE AGING OVEN JIS-A5756, B7757, C3005, K6257, K6723, K721 2, ASTM-□573, D2436, E145, UL-74BB, IEC-81 1JSO-1 88,4577 FEATURE Most widely used heat aging tester of rubber and plastic. Unlike ordinary heating ovens, the testers satisfy spécifications indispensable to aging test such as closed mechanism, uniform air velocity in the oven, ventilation rate measurement, rotating soecimen rack, offering excellent reproductibility and reliability. MODEL SHF-77 SHF-S SHF-SA Air exchange rate measuring device : Not attached Air excahge rate measuring device : Attached, Damper setting : Manual Air excahge rate measuring device : Attached, Damper setting : Automatic SPECIFICATIONS Inside dimensions [STANDARD] W450xD450xH500mm [LARGE] W500xD500xH600mm [SPECIAL] W600xD600xH600mm Température range Max. 300°C (Option : Max. 400°C) Air velocity A type : 1 ±0.2m/s, B type : 0.5+0.1 m/s, I type : 0.5±0.1m/s, (ULtype : 1±0.2m/s) Air exchange rate A type : Over 60times/hr, B type : 3~1 Otimes/hr, I type : 3~10 times/hr, Il type : 5~20times/hr, (ULtype : 100~200times/hr) Drum rotaion speed 5rpm Accessories Spécimen hanger ••• 2stages, Shelf ••• 2pcs, Clip ••• 40pcs Option Chart recorder, Timer Power source AC220V 1-phase 30A-50A 50/60HZ Dimensions-Weight (Approx.) W1,180xD700x H1,450mm-220kg W1,230xD750x H1,550mm-250kg W1,330xD850x H1,550mm-280kg
