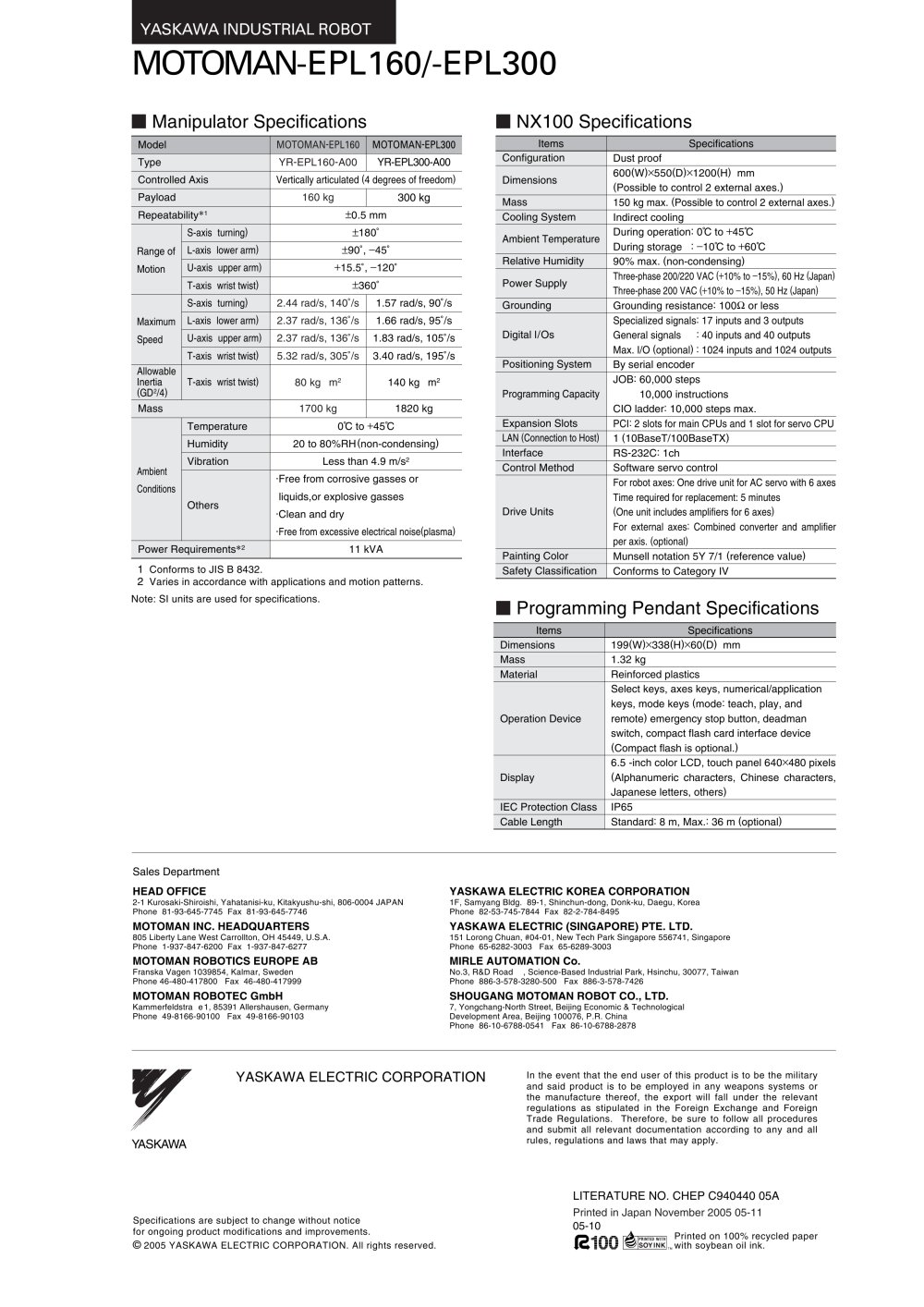

YASKAWA INDUSTRIAL ROBO'

MOTOMAN-EPL160/-E

■ Manipulator Specifications

■ NX100 Specifications


Model		MOTOMAN-EPL160	MOTOMAN-EPL300
Type		YR-EPL160-A00	YR-EPL300-A00
Controlled Axis		Vertically articulated (4 degrees of freedom)
Payload		160 kg	300 kg
Repeatability*¹		±0.5 mm
Range of Motion	S-axis (turning)	±180"
	L-axis (lower arm)	±90", -45"
	U-axis (upper arm)	+15.5", -120"
	T-axis (wrist twist)	±360"
Maximum Speed	S-axis (turning)	2.44 rad/s, 140"/s	1.57 rad/s, 90Ys
	L-axis (lower arm)	2.37 rad/s, 136"/s	1.66 rad/s, 95Ys
	U-axis (upper arm)	2.37 rad/s, 136"/s	1.83 rad/s, 1057s
	T-axis (wrist twist)	5.32 rad/s, 305"/s	3.40 rad/s, 1957s
Allowable Inertia (GD²/4)	T-axis (wrist twist)	80 kg • m²	140 kg -m²
Mass		1700 kg	1820 kg
Ambient Conditions	Temperature	0"C to +45"C
	Humidity	20 to 80%RH(non-condensing)
	Vibration	Less than 4.9 m/s²
	Others	•Free from corrosive gasses or liquids,or explosive gasses •Clean and dry •Free from excessive electrical noise(plasma)
Power Requirements*²		11 kVA


	Items	Specifications
	Configuration	Dust proof
	Dimensions	600(W)X550(D)X1200(H) mm (Possible to control 2 external axes.)
	Mass	150 kg max. (Possible to control 2 external axes.)
	Cooling System	Indirect cooling
	Ambient Temperature	During operation: 0C to +45C During storage : -10C to +60"C
	Relative Humidity	90% max. (non-condensing)
	Power Supply	Three-phase 200/220 VAC (+10% to -15%), 60 Hz (Japan) Three-phase 200 VAC (+10% to -15%), 50 Hz (Japan)
	Grounding	Grounding resistance: 100Q or less
	Digital l/Os	Specialized signals: 17 inputs and 3 outputs General signals : 40 inputs and 40 outputs Max. I/O (optional) : 1024 inputs and 1024 outputs
	Positioning System	By serial encoder
	Programming Capacity	JOB: 60,000 steps 10,000 instructions CIO ladder: 10,000 steps max.
	Expansion Slots	PCI: 2 slots for main CPUs and 1 slot for servo CPU
	LAN (Connection to Host)	1 (10BaseT/100BaseTX)
	Interface	RS-232C: 1ch
	Control Method	Software servo control
	Drive Units	For robot axes: One drive unit for AC servo with 6 axes Time required for replacement: 5 minutes (One unit includes amplifiers for 6 axes) For external axes: Combined converter and amplifier per axis. (optional)
	Painting Color	Munsell notation 5Y 7/1 (reference value)
	Safety Classification	Conforms to Category IV
	■ Programming Pendant Specifications
	Items	Specifications
	Dimensions	199(W)X338(H)X60(D) mm
	Mass	1.32 kg
	Material	Reinforced plastics
	Operation Device	Select keys, axes keys, numerical/application keys, mode keys (mode: teach, play, and remote) emergency stop button, deadman switch, compact flash card interface device (Compact flash is optional.)
	Display	6.5 -inch color LCD, touch panel 640X480 pixels (Alphanumeric characters, Chinese characters, Japanese letters, others)
	IEC Protection Class	IP65
	Cable Length	Standard: 8 m, Max.: 36 m (optional)

*1: Conforms to JIS B 8432.

*2: Varies in accordance with applications and motion patterns. Note: SI units are used for specifications.
