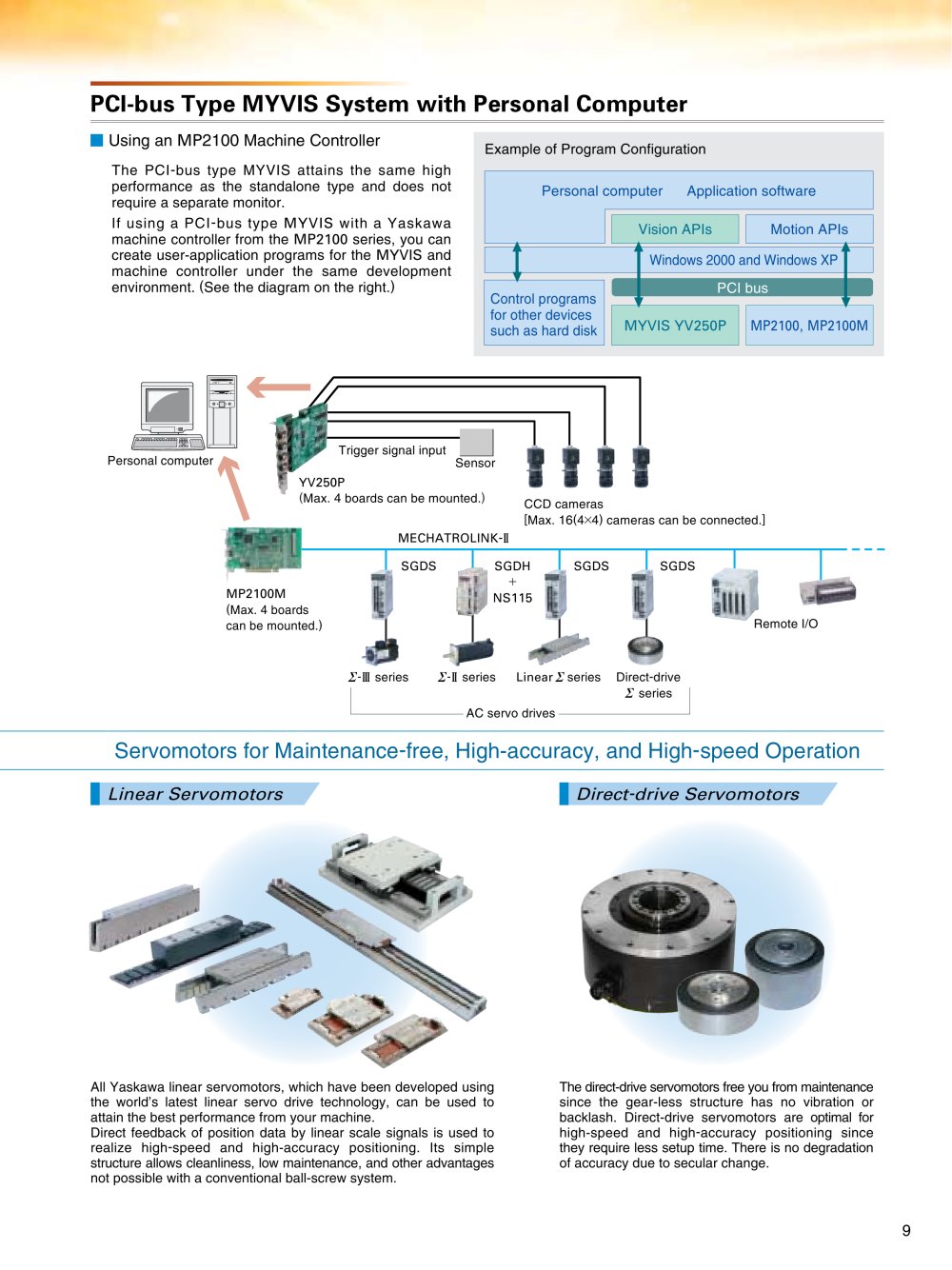

Using an MP2100 Machine Controller

The PCI-bus type MYVIS attains the same high performance as the standalone type and does not require a separate monitor.

If using a PCI-bus type MYVIS with a Yaskawa machine controller from the MP2100 series, you can create user-application programs for the MYVlS and machine controller under the same development environment. (See the diagram on the right.)

Example of Program Configuration

Personal computer Application software

Vision APIs

Motion APIs

Windows 2000 and Windows XP

PCI bus

Control programs for other devices such as hard disk

MYVIS YV250P

lvalue, MP2100M

™Trigger signal input

Personal computer

Sensor

YV250P

(Max. 4 boards can be mounted.)

MECHATROLINK-ïï

CCD cameras

[Max. 16(4x4) cameras can be connected.]

sgds

sgdh

+

NS115

sgds

sgds

MP2100M (Max. 4 boards can be mounted.)

Remote I/O

S-M series Z-i series Linear X series Direct-drive

E series

AC servo drives-

Servomotors for Maintenance-free, High-accuracy, and High-speed Operation

All Yaskawa linear servomotors, which have been developed using the world's latest linear servo drive technology, can be used to attain the best performance from your machine. Direct feedback of position data by linear scale signals is used to realize high-speed and high-accuracy positioning. Its simple structure allows cleanliness, low maintenance, and other advantages not possible with a conventional ball-screw system.

The direct-drive servomotors free you from maintenance since the gear-less structure has no vibration or backlash. Direct-drive servomotors are optimal for high-speed and high-accuracy positioning since they require less setup time. There is no degradation of accuracy due to secular change.
