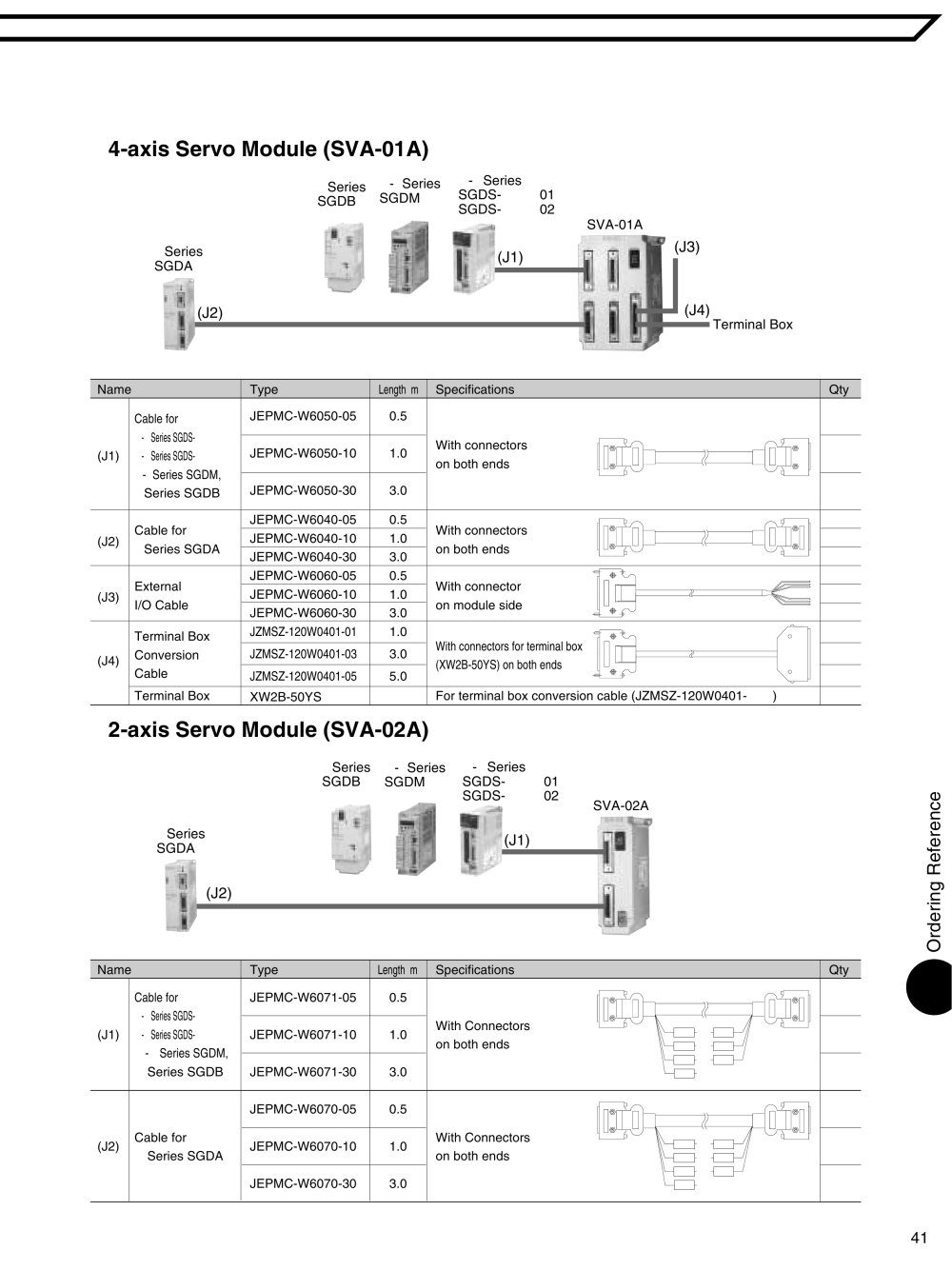

•4-axis Servo Module (SVA-01A)

ISeries I-HSeries SGDB SGDM

I-ISeries

SGDS-DDD01D,

SGDS-DDD02D

SVA-01A 1

ISeries SGDA

Terminal Box

I "


Name		Type	Length m
	Cable for	JEPMC-W6050-05	0.5
	I-ISeries SGDS-DDD01D, I-ISeries SGDS-DDD02D, I-ÏÏSeries SGDM, ISeries SGDB
(J1)		JEPMC-W6050-10	1.0
		JEPMC-W6050-30	3.0
	Cable for ISeries SGDA	JEPMC-W6040-05	0.5
(J2)		JEPMC-W6040-10	1.0
(J2)		JEPMC-W6040-30	3.0
	External I/O Cable	JEPMC-W6060-05	0.5
(J3)		JEPMC-W6060-10	1.0
(J3)		JEPMC-W6060-30	3.0
	Terminal Box	JZMSZ-120W0401-01	1.0
(J4)	Conversion	JZMSZ-120W0401-03	3.0
(J4)	Cable	JZMSZ-120W0401-05	5.0
	Terminal Box	XW2B-50YS	—

Specifications

Qty

With connectors on both ends

With connector on module side

With connectors for terminal box (XW2B-50YS) on both ends

For terminal box conversion cable (JZMSZ-120W0401-DD)

•2-axis Servo Module (SVA-02A)

ISeries

SGDB

I-HSeries

SGDM

I-ISeries

SGDS-DDD01Q

SGDS-DDD02D

SVA-02A

CD 1_

Se a> ce

~o O

I Series SGDA

'(J1)

(J2)

Name


	Type	Length m
Cable for I-ISeries SGDS-DDD01D, I-ISeries SGDS-DDD02D, I-ïï Series SGDM, I Series SGDB	JEPMC-W6071-05	0.5
	JEPMC-W6071-10	1.0
	JEPMC-W6071-30	3.0
Cable for I Series SGDA	JEPMC-W6070-05	0.5
	JEPMC-W6070-10	1.0
	JEPMC-W6070-30	3.0

Specifications

Qty

With Connectors on both ends

(J1)

(J2)

With Connectors on both ends
