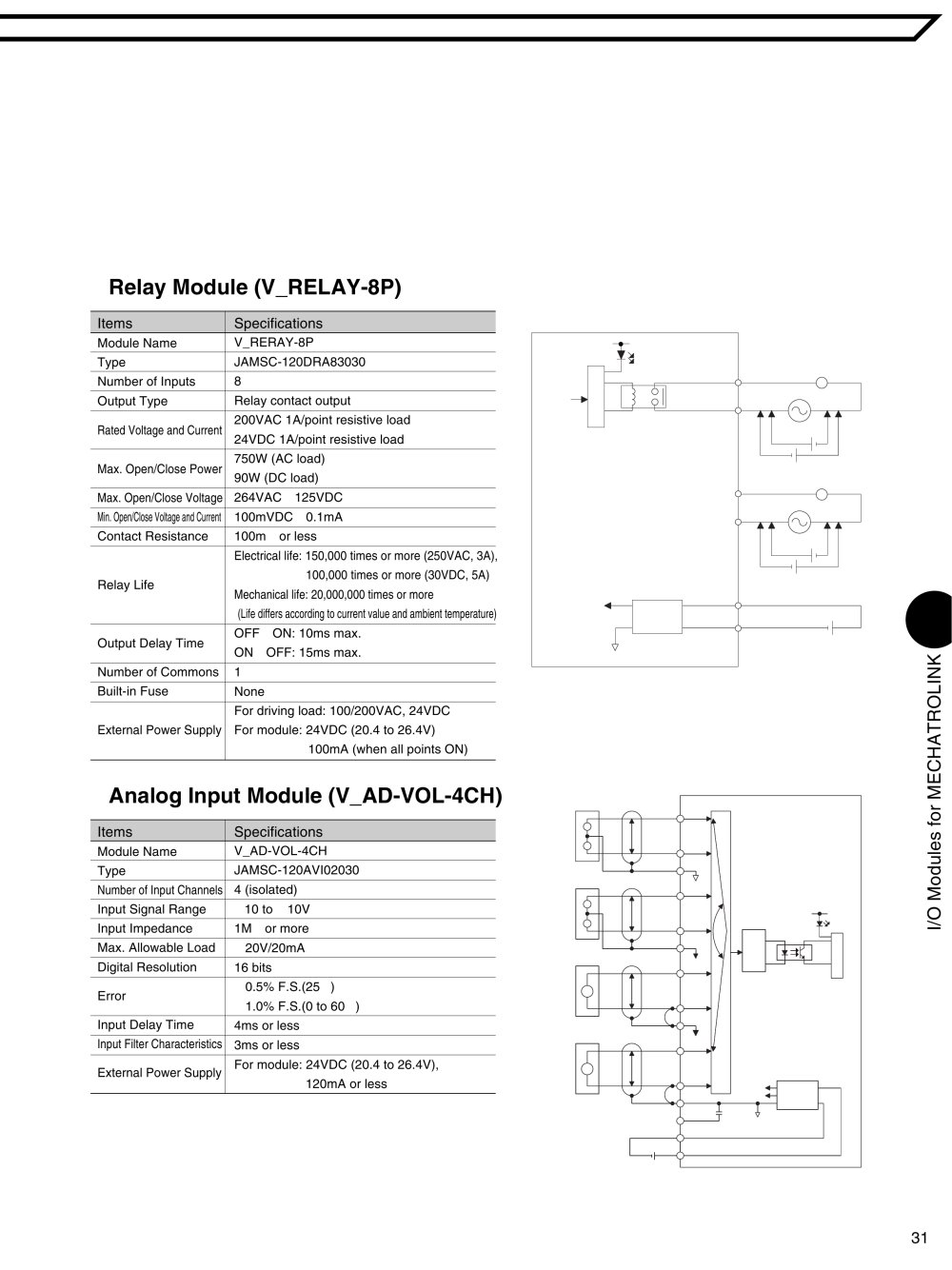

•Relay Module (V_RELAY-8P)

Circuit Diagram


	Items	Specifications
	Module Name	V_RERAY-8P
	Type	JAMSC-120DRA83030
	Number of Inputs	8
	Output Type	Relay contact output
	Rated Voltage and Current	200VAC lA/point resistive load 24VDC lA/point resistive load
	Max. Open/Close Power	750W (AC load) 90W (DC load)
	Max. Open/Close Voltage	264VAC 125VDC
	Min. Open/Close Voltage and Current	100mVDC 0.1mA
	Contact Resistance	100mO or less
	Relay Life	Electrical life: 150,000 times or more (250VAC, 3A) 100,000 times or more (30VDC, 5A) Mechanical life: 20,000,000 times or more (Life differs according to current value and ambient temperature)
	Output Delay Time	OFF—ON: 10ms max. ON—OFF: 15ms max.
	Number of Commons	1
	Built-in Fuse	None
	External Power Supply	For driving load: 100/200VAC, 24VDC For module: 24VDC (20.4 to 26.4V) 100mA (when all points ON)
	•Analog Input Module (V_AD-VOL-4CH
	Items	Specifications
	Module Name	V_AD-VOL-4CH
	Type	JAMSC-120AVI02030
	Number of Input Channels	4 (isolated)
	Input Signal Range	-10 to +10V
	Input Impedance	1MO or more
	Max. Allowable Load	±20V/20mA
	Digital Resolution	16 bits
	Error	±0.5% F.S.(25°C) ±1.0% F.S.(0 to 60C)
	Input Delay Time	4ms or less
	Input Filter Characteristics	3ms or less
	External Power Supply	For module: 24VDC (20.4 to 26.4V), 120mA or less

24VDC

External Main

Circuit Diagram

Balanced Signal Source

5 Multiplexer DH1+ ,

C/) O

DH1-

Shield 1

-10 to 10V

Balanced Signal Source

DH2+

er I—n^l

DH2-

s Photocouple

nbalanced Signal Source

DH3+

DH3-

Unbalanced Signal Source
