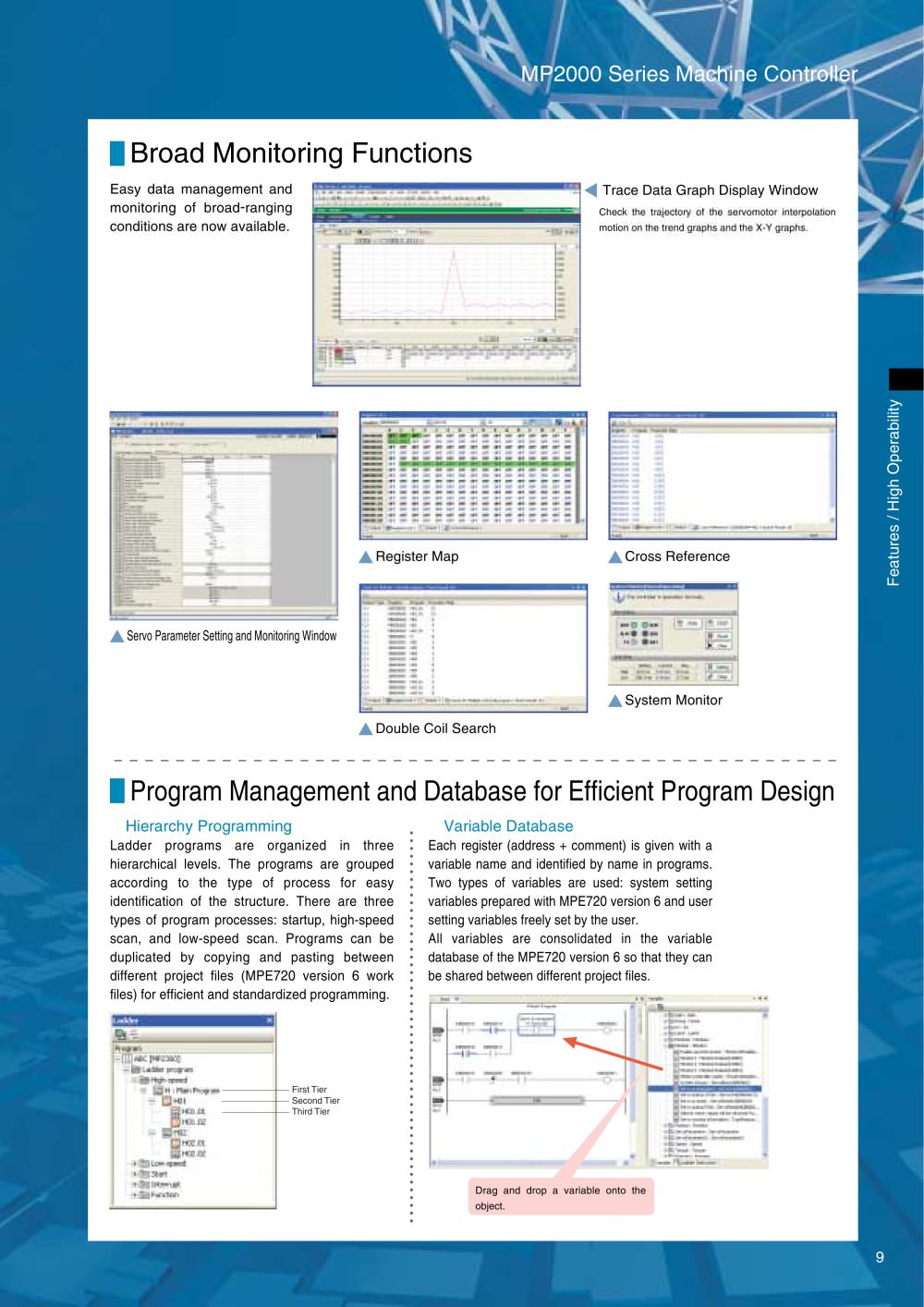

| MP2000 Series | |||||||||||||||||||||||||||||||||
| ■F | |||||||||||||||||||||||||||||||||
| Broad Monitoring Functions | |||||||||||||||||||||||||||||||||
| Easy data management and "r^ffli1* monitoring of broad-ranging conditions are now available. | |||||||||||||||||||||||||||||||||
| Trace Data Graph Display Window | |||||||||||||||||||||||||||||||||
| Check the trajectory of the servomotor interpolation motion on the trend graphs and the X-Y graphs. | |||||||||||||||||||||||||||||||||
| un», i—c | |||||||||||||||||||||||||||||||||
| Cross Reference | |||||||||||||||||||||||||||||||||
| — □ a— k-t m — | |||||||||||||||||||||||||||||||||
| A Servo Parameter Setting and Monitoring Window | |||||||||||||||||||||||||||||||||
| System Monitor | |||||||||||||||||||||||||||||||||
| Double Coil Search | |||||||||||||||||||||||||||||||||
| I Program Management and Database for Efficient Program Design | |||||||||||||||||||||||||||||||||
| • Hierarchy Programming Ladder programs are organized in three hierarchical levels. The programs are grouped according to the type of process for easy identification of the structure. There are three types of program processes: startup, high-speed scan, and low-speed scan. Programs can be duplicated by copying and pasting between different project files (MPE720 version 6 work files) for efficient and standardized programming. | • Variable Database Each register (address + comment) is given with a variable name and identified by name in programs. Two types of variables are used: system setting variables prepared with MPE720 version 6 and user setting variables freely set by the user. All variables are consolidated in the variable database of the MPE720 version 6 so that they can be shared between different project files. | ||||||||||||||||||||||||||||||||
| - First Tier - Second Tier Third Tier | |||||||||||||||||||||||||||||||||
| Drag and drop a variable onto the object. | |||||||||||||||||||||||||||||||||
