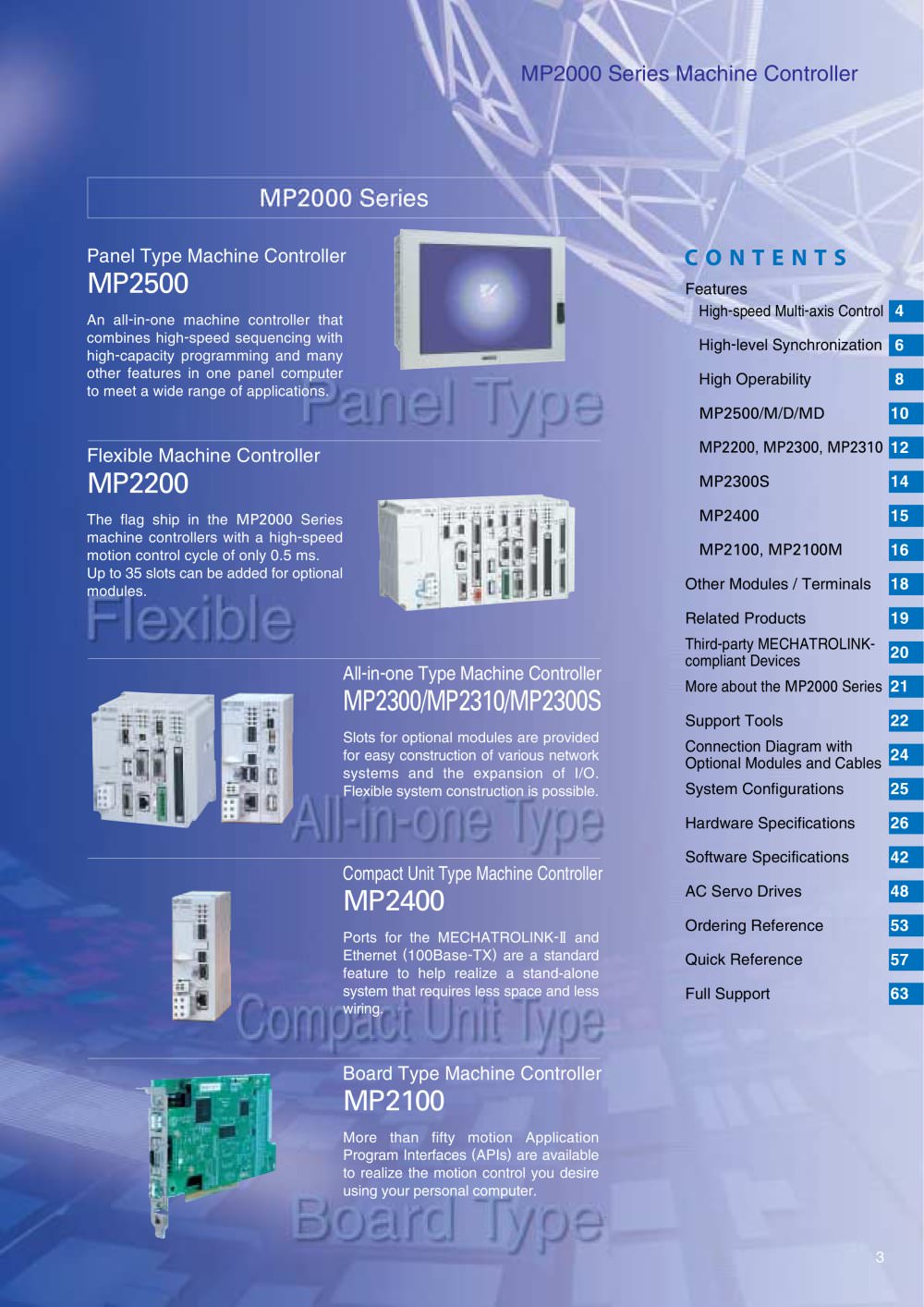

| MP2000 Series Machine Controller | ||||||||||||||||||||||||||||||||||||||||
| Panel Type Machine Controller MP2500,^m^H An all-in-one machine controller that combines high-speed sequencing with high-capacity programming and many other features in one panel computer to meet a wide range of applications. ■ | ||||||||||||||||||||||||||||||||||||||||
| CONTENTS Features _ High-speed Multi-axis Control |4 High-level Synchronization 6 High Operability 8 MP2500/M/D/MD |10 MP2200, MP2300, MP2310 12 MP2300S |14 MP2400 |15 MP2100, MP2100M |16 Other Modules / Terminals 18 Related Products 19 Third-party MECHATROLINK- 20 compliant Devices More about the MP2000 Series 21 Support Tools 22 Connection Diagram with 24 Optional Modules and Cables ■■■ System Configurations 25 Hardware Specifications 26 Software Specifications 42 AC Servo Drives 48 Ordering Reference 53 Quick Reference 57 Full Support 63 | ||||||||||||||||||||||||||||||||||||||||
| J X | ||||||||||||||||||||||||||||||||||||||||
| Flexible Machine Controller MP2200 The flag ship in the MP2000 Series machine controllers with a high-speed motion control cycle of only 0.5 ms. Up to 35 slots can be added for optional modules. | ||||||||||||||||||||||||||||||||||||||||
| II | ||||||||||||||||||||||||||||||||||||||||
| All-in-one Type Machine Controller MP2300/MP2310/MP2300S Slots for optional modules are provided for easy construction of various network systems and the expansion of I/O. Flexible system construction is possible. | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Compact Unit Type Machine Controller MP2400^H^H Ports for the MECHATROLINK-n and Ethernet (100Base-TX) are a standard feature to help realize a stand-alone system that requires less space and less wiring. ^^^^^^^^^^^^^^^^H | ||||||||||||||||||||||||||||||||||||||||
| I m | ||||||||||||||||||||||||||||||||||||||||
| Board Type Machine Controller MP2100 More than fifty motion Application Program Interfaces (APIs) are available to realize the motion control you desire using your personal computer. ^^^^h | ||||||||||||||||||||||||||||||||||||||||
