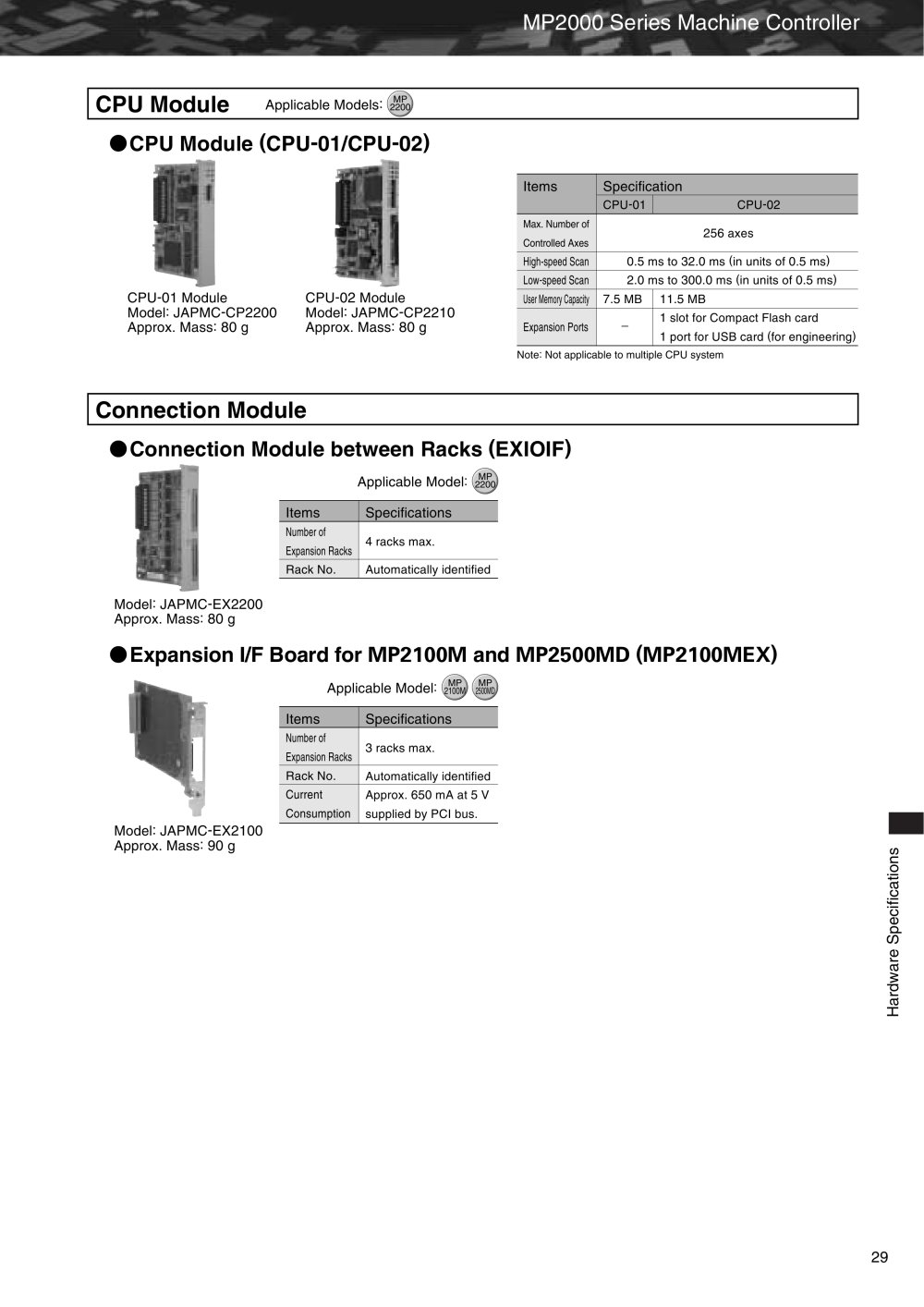

MP2000 Series Machine Controller

CPU Module

Applicable Models: 2ⁱ2q0

►CPU Module (CPU-01/CPU-02)


Items	Specification
	CPU-01	CPU-02
Max. Number of Controlled Axes	256 axes
High-speed Scan	0.5 ms to 32.0 ms (in units of 0.5 ms)
Low-speed Scan	2.0 ms to 300.0 ms (in units of 0.5 ms)
User Memory Capacity	7.5 MB	11.5 MB
Expansion Ports	-	1 slot for Compact Flash card 1 port for USB card (for engineering)

CPU-01 Module Model: JAPMC-CP2200 Approx. Mass: 80 g

CPU-02 Module Model: JAPMC-CP2210 Approx. Mass: 80 g

Note: Not applicable to multiple CPU system

Connection Module

►Connection Module between Racks (EXIOIF)

Applicable Model: (^Ù

Model: JAPMC-EX2200 Approx. Mass: 80 g

»Expansion I/F Board for MP2100M and MP2500MD (MP2100MEX)

Applicable Model:


	Items	Specifications
	Number of	3 racks max.
	Expansion Racks	3 racks max.
	Expansion Racks
	Rack No.	Automatically identified
	Current	Approx. 650 mA at 5 V supplied by PCI bus.
	Consumption	Approx. 650 mA at 5 V supplied by PCI bus.

Model: JAPMC-EX2100 Approx. Mass: 90 g
