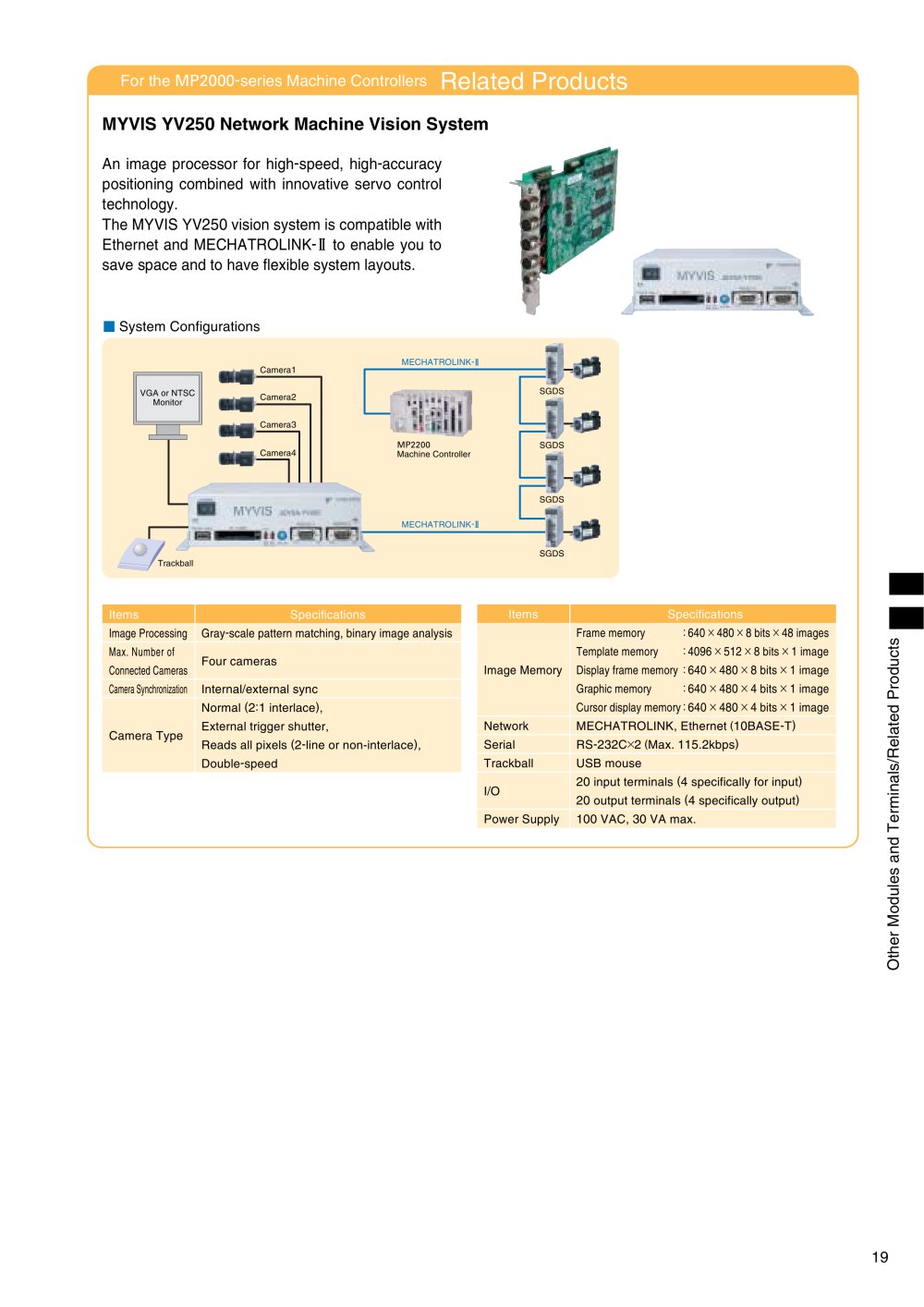

For the MP2000-series Machine Controllers Related Products

MYVIS YV250 Network Machine Vision System

An image processor for high-speed, high-accuracy positioning combined with innovative servo control technology.

The MYVIS YV250 vision system is compatible with Ethernet and MECHATROLINK- II to enable you to save space and to have flexible system layouts.

System Configurations

MECHATROLINK-II

SGDS SGDS SGDS

SGDS


	Items	Specifications
	Image Processing	Gray-scale pattern matching, binary image analysis
	Max. Number of Connected Cameras	Four cameras
	Camera Synchronization	Internal/external sync
	Camera Type	Normal (2:1 interlace), External trigger shutter, Reads all pixels (2-line or non-interlace), Double-speed


Items		Specifications
Image Memory	Frame memory Template memory Display frame memory Graphic memory Cursor display memory		640 x 480 x 8 bits x 48 Images 4096 x 512 x 8 bits x 1 Image 640 x 480 x 8 bits x 1 image 640 x 480 x 4 bits x 1 image 640 x 480 x 4 bits x 1 image
Network	MECHATROLINK, Ethernet (10BASE-T)
Serial	RS-232CX2 (Max. 115.2kbps)
Trackball	USB mouse
I/O	20 input terminals (4 specifically for input) 20 output terminals (4 specifically output)
Power Supply	100 VAC, 30 VA max.
