Selecting Cables




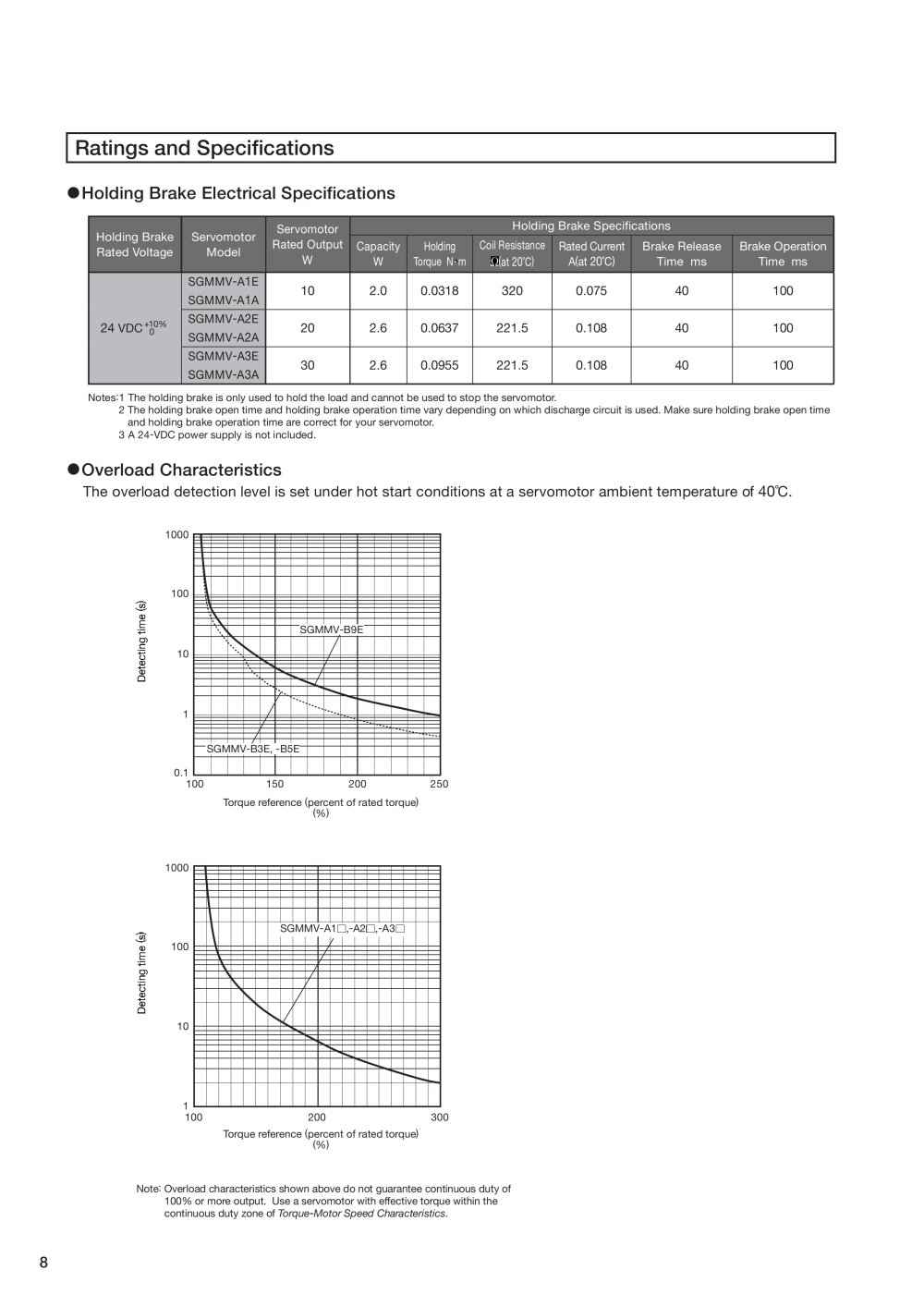

For Servomotor with Holding Brakes	50 to 100 W	3 m	JZSP-CSM11-03-E	JZSP-CSM31-03-E	SERVOPACK End Servomotor End 1 50 mm L	(2)
		5 m	JZSP-CSM11-05-E	JZSP-CSM31-05-E
		10 m	JZSP-CSM11-10-E	JZSP-CSM31-10-E
		15 m	JZSP-CSM11-15-E	JZSP-CSM31-15-E
		20 m	JZSP-CSM11-20-E	JZSP-CSM31-20-E
		30 m	JZSP-CSM11-30-E	JZSP-CSM31-30-E
		40 m	JZSP-CSM11-40-E	JZSP-CSM31-40-E
		50 m	JZSP-CSM11-50-E	JZSP-CSM31-50-E
	200 to 400 W	3 m	JZSP-CSM12-03-E	JZSP-CSM32-03-E
		5 m	JZSP-CSM12-05-E	JZSP-CSM32-05-E
		10 m	JZSP-CSM12-10-E	JZSP-CSM32-10-E
		15 m	JZSP-CSM12-15-E	JZSP-CSM32-15-E
		20 m	JZSP-CSM12-20-E	JZSP-CSM32-20-E	©^B=tF' Wire Markers M4 Crimped Terminal
		30 m	JZSP-CSM12-30-E	JZSP-CSM32-30-E
		40 m	JZSP-CSM12-40-E	JZSP-CSM32-40-E
		50 m	JZSP-CSM12-50-E	JZSP-CSM32-50-E
	750 W	3 m	JZSP-CSM13-03-E	JZSP-CSM33-03-E
		5 m	JZSP-CSM13-05-E	JZSP-CSM33-05-E
		10 m	JZSP-CSM13-10-E	JZSP-CSM33-10-E
		15 m	JZSP-CSM13-15-E	JZSP-CSM33-15-E
		20 m	JZSP-CSM13-20-E	JZSP-CSM33-20-E
		30 m	JZSP-CSM13-30-E	JZSP-CSM33-30-E
		40 m	JZSP-CSM13-40-E	JZSP-CSM33-40-E
		50 m	JZSP-CSM13-50-E	JZSP-CSM33-50-E
Servomotor-end Connector Kit	50 to 100 W		JZSP-CSM9-1-E		Crimping Type (A crimp tool is required.)	(3)
	200 to 400 W		JZSP-CSM9-2-E			(4)
	750 W		JZSP-CSM9-3-E			(5)
Cables	50 to 400 W	5 m	JZSP-CSM90-05-E	JZSP-CSM80-05-E		(6)
		10 m	JZSP-CSM90-10-E	JZSP-CSM80-10-E
		15 m	JZSP-CSM90-15-E	JZSP-CSM80-15-E
		20 m	JZSP-CSM90-20-E	JZSP-CSM80-20-E
		30 m	JZSP-CSM90-30-E	JZSP-CSM80-30-E
		40 m	JZSP-CSM90-40-E	JZSP-CSM80-40-E
		50 m	JZSP-CSM90-50-E	JZSP-CSM80-50-E
	750 W	5 m	JZSP-CSM91-05-E	JZSP-CSM81-05-E		(7)
		10 m	JZSP-CSM91-10-E	JZSP-CSM81-10-E
		15 m	JZSP-CSM91-15-E	JZSP-CSM81-15-E
		20 m	JZSP-CSM91-20-E	JZSP-CSM81-20-E
		30 m	JZSP-CSM91-30-E	JZSP-CSM81-30-E
		40 m	JZSP-CSM91-40-E	JZSP-CSM81-40-E
		50 m	JZSP-CSM91-50-E	JZSP-CSM81-50-E

Use flexible cables for movable sections such as robot arms.

(1) Wiring Specifications for Servomotors without Holding Brakes (2) Wiring Specifications for Servomotor with Holding Brakes

SERVOPACK-end Leads

Servomotor-end Connector

SERVOPACK-end Leads

Servomotor-end Connector


	Wire Color	Signal
	Green/yellow	FG
	Blue	Phase W
	White	Phase V
	Red	Phase U


Signal	Pin No.	Wire Color	Signal
FG	1	Green/yellow	FG
Phase W	2	Blue	Phase W
Phase V	3	White	Phase V
Phase U	4	Red	Phase U
-	5	Black	Brake
-	6	Black	Brake


	Signal	Pin No.
	FG	1
	Phase W	2
	Phase V	3
	Phase U	4
	Brake	5
	Brake	6

Note: No polarity for connection to a holding brake.
