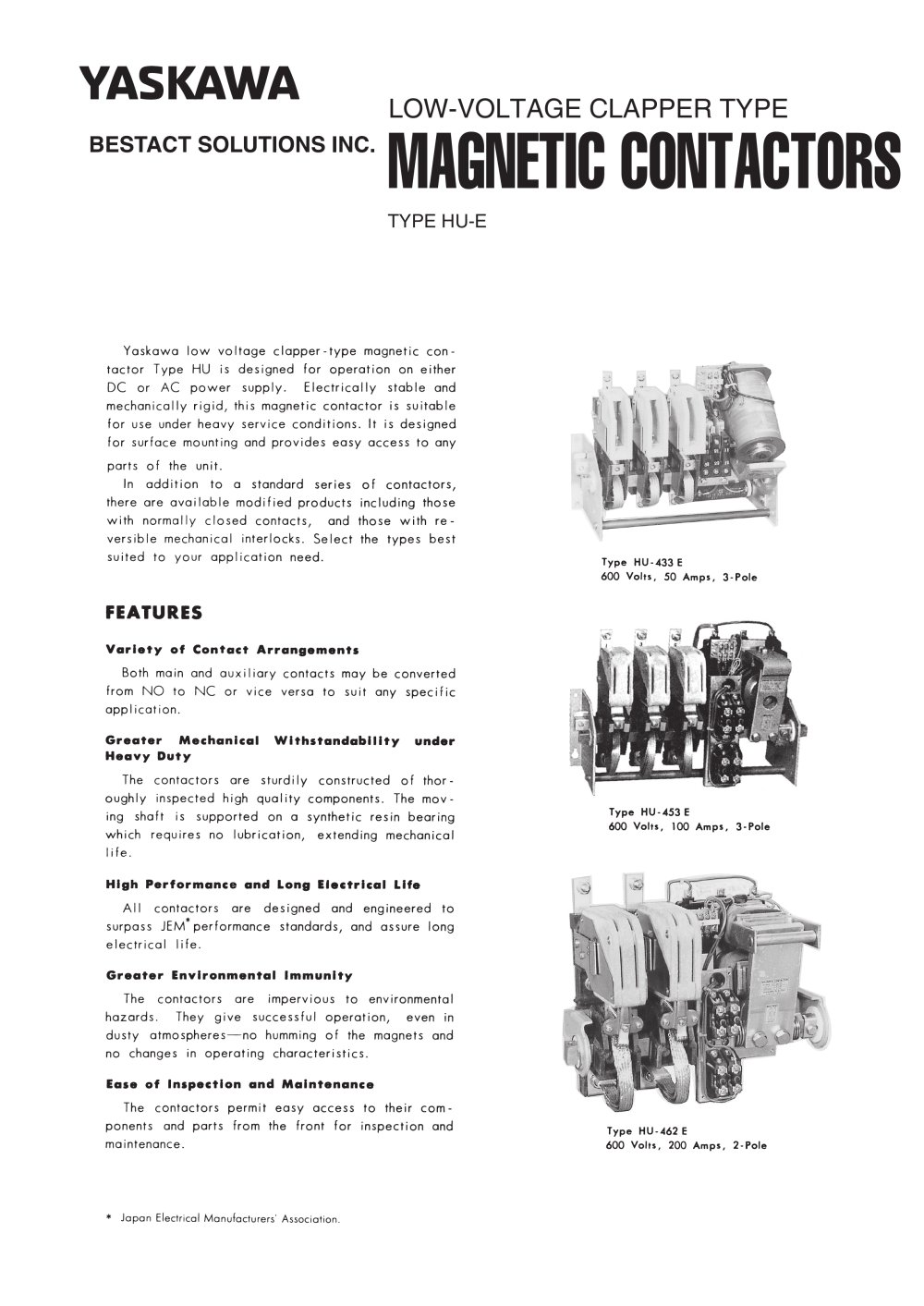

Yaskawa Magnetic Contactor HU-E series - Yaskawa Controls - #1

LOW-VOLTAGE CLAPPER TYPE

MAGNETIC CONTACTORS

yaskawa

control type hu-e

Yaskawa low voltage clapper-type magnetic con­tactor Type HU is designed for operation on either DC or AC power supply. Electrically stable and mechanically rigid, this magnetic contactor is suitable for use under heavy service conditions. It is designed for surface mounting and provides easy access to any

parts of the unit.

In addition to a standard series of contactors, there are available modified products including those with normally closed contacts, and those with re­versible mechanical interlocks. Select the types best suited to your application need.

Type HU-433 E

600 Volts, 50 Amps, 3-Pole

Both main and auxiliary contacts may be converted from NO to NC or vice versa to suit any specific appl ication.

The contactors are sturdily constructed of thor­oughly inspected high quality components. The mov­ing shaft is supported on a synthetic resin bearing which requires no lubrication, extending mechanical life.

All contactors are designed and engineered to surpass JEM performance standards, and assure long electrical life.

The contactors are impervious to environmental hazards. They give successful operation, even in dusty atmospheres—no humming of the magnets and no changes in operating characteristics.

The contactors permit easy access to their com­ponents and parts from the front for inspection and maintenance.

Type HU-453 E

600 Volts, 100 Amps, 3-Pole

Type HU-462 E

600 Volts, 200 Amps, 2-Pole

* Japan Electrical Manufacturers' Association.
