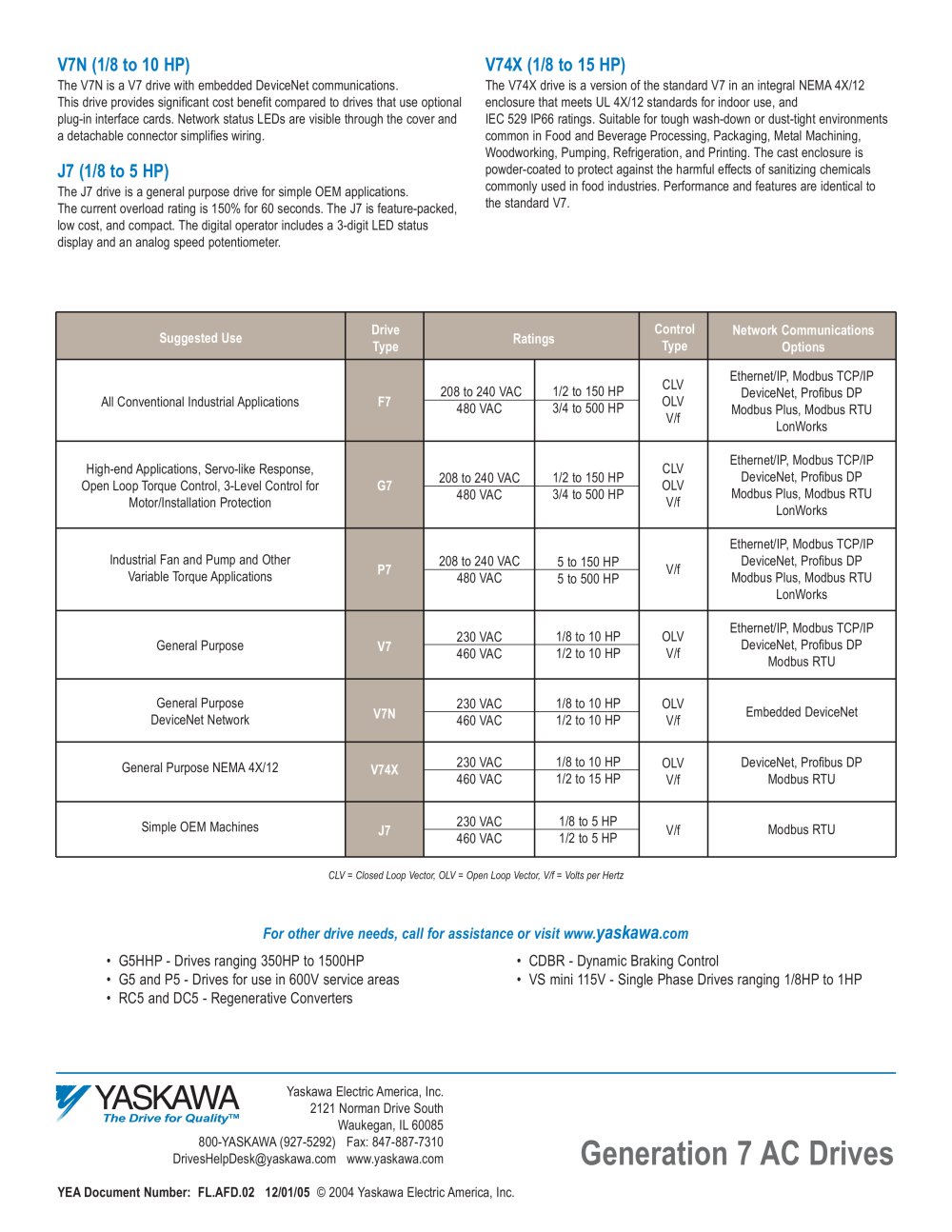

V7N (1/8 to 10 HP)

The V7N is a V7 drive with embedded DeviceNet communications. This drive provides significant cost benefit compared to drives that use optional plug-in interface cards. Network status LEDs are visible through the cover and a detachable connector simplifies wiring.

J7 (1/8 to 5 HP)

The J7 drive is a general purpose drive for simple OEM applications. The current overload rating is 150% for 60 seconds. The J7 is feature-packed, low cost, and compact. The digital operator includes a 3-digit LED status display and an analog speed potentiometer.

V74X (1/8 to 15 HP)

The V74X drive is a version of the standard V7 in an integral NEMA4X/12 enclosure that meets UL 4X/12 standards for indoor use, and IEC 529 IP66 ratings. Suitable for tough wash-down or dust-tight environments common in Food and Beverage Processing, Packaging, Metal Machining, Woodworking, Pumping, Refrigeration, and Printing. The cast enclosure is powder-coated to protect against the harmful effects of sanitizing chemicals commonly used in food industries. Performance and features are identical to the standard V7.


Suggested Use	Ratings			Network Communications Options
All Conventional Industrial Applications	208 to 240 VAC	1/2 to 150 HP	CLV OLV V/f	Ethernet/IP, Modbus TCP/IP DeviceNet, Profibus DP Modbus Plus, Modbus RTU LonWorks
All Conventional Industrial Applications	480 VAC	3/4 to 500 HP	CLV OLV V/f
High-end Applications, Servo-like Response, Open Loop Torque Control, 3-Level Control for Motor/Installation Protection	208 to 240 VAC	1/2 to 150 HP	CLV OLV V/f	Ethernet/IP, Modbus TCP/IP DeviceNet, Profibus DP Modbus Plus, Modbus RTU LonWorks
	480 VAC	3/4 to 500 HP	CLV OLV V/f
Industrial Fan and Pump and Other	208 to 240 VAC	5 to 150 HP	V/f	Ethernet/IP, Modbus TCP/IP DeviceNet, Profibus DP Modbus Plus, Modbus RTU LonWorks
Variable Torque Applications	480 VAC	5 to 500 HP	V/f
General Purpose	230 VAC	1/8 to 10 HP	OLV	Ethernet/IP, Modbus TCP/IP DeviceNet, Profibus DP Modbus RTU
General Purpose	460 VAC	1/2 to 10 HP	V/f
General Purpose DeviceNet Network	230 VAC	1/8 to 10 HP	OLV	Embedded DeviceNet
General Purpose DeviceNet Network	460 VAC	1/2 to 10 HP	V/f	Embedded DeviceNet
General Purpose NEMA4X/12	230 VAC	1/8 to 10 HP	OLV	DeviceNet, Profibus DP Modbus RTU
General Purpose NEMA4X/12	460 VAC	1/2 to 15 HP	V/f	DeviceNet, Profibus DP Modbus RTU
Simple OEM Machines	230 VAC	1/8 to 5 HP	V/f	Modbus RTU
Simple OEM Machines	460 VAC	1/2 to 5 HP	V/f	Modbus RTU

CLV = Closed Loop Vector, OLV = Open Loop Vector, V/f = Volts per Hertz

For other drive needs, call for assistance or visit www.yaskawa.com

G5HHP - Drives ranging 350HP to 1500HP • CDBR - Dynamic Braking Control

G5 and P5 - Drives for use in 600V service areas • VS mini 115V - Single Phase Drives ranging 1/8HP to 1HP

RC5 and DC5 - Regenerative Converters
