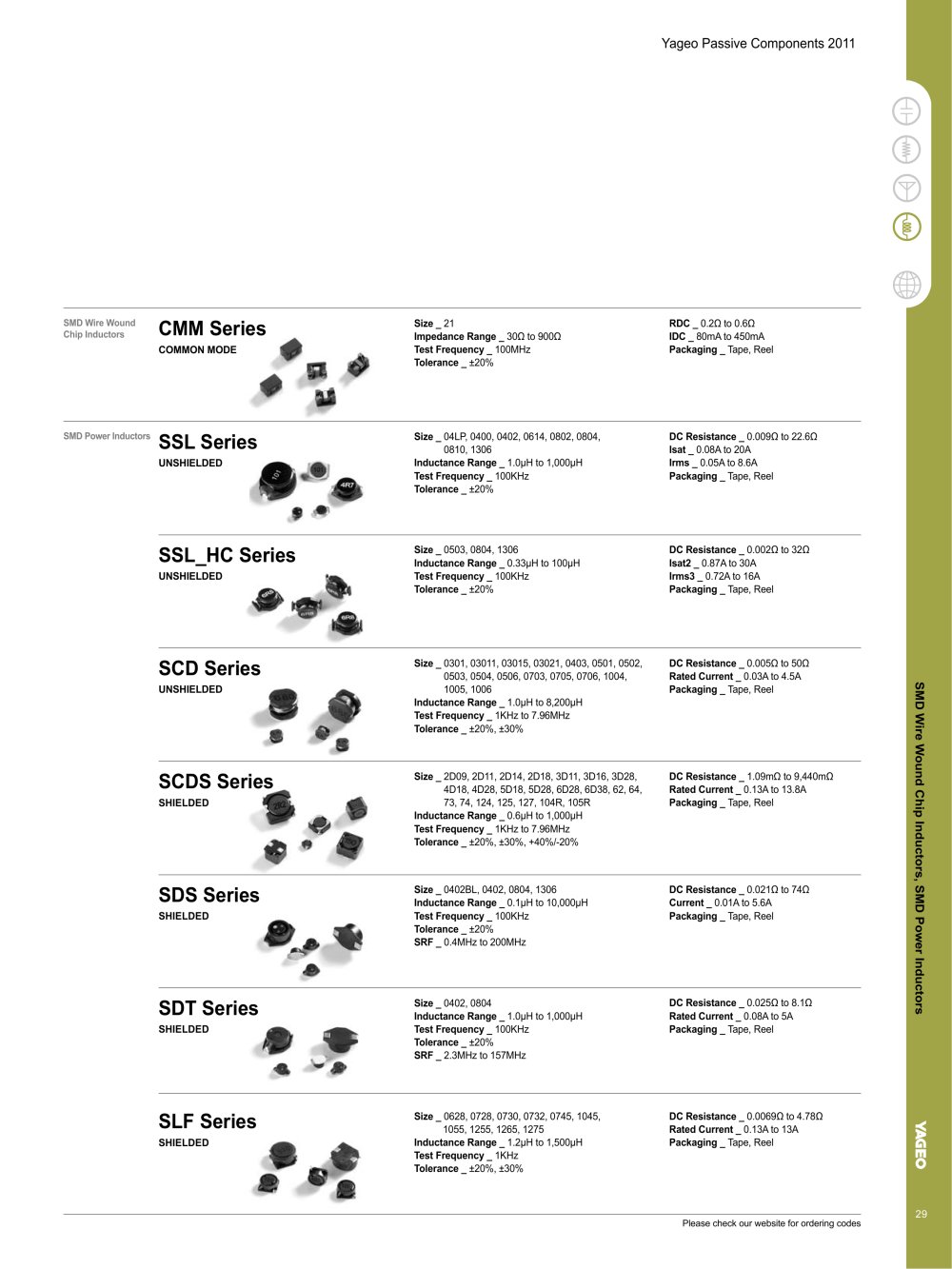

Yageo Passive Components 2011 29 Please check our website for ordering codes SMD Wire Wound Chip Inductors, SMD Power Inductors SMD Wire Wound Chip Inductors CMM Series COMMON MODE Size _ 21 Impedance Range _ 30Ù to 900Ù Test Frequency _ 100MHz Tolerance _ ±20% RDC _ 0.2Ù to 0.6Ù IDC _ 80mA to 450mA Packaging _ Tape, Reel SMD Power Inductors SSL Series UNSHIELDED Size _ 04LP, 0400, 0402, 0614, 0802, 0804, 0810, 1306 Inductance Range _ 1.0ìH to 1,000ìH Test Frequency _ 100KHz Tolerance _ ±20% DC Resistance _ 0.009Ù to 22.6Ù Isat _ 0.08A to 20A Irms _ 0.05A to 8.6A Packaging _ Tape, Reel SSL_HC Series UNSHIELDED Size _ 0503, 0804, 1306 Inductance Range _ 0.33ìH to 100ìH Test Frequency _ 100KHz Tolerance _ ±20% DC Resistance _ 0.002Ù to 32Ù Isat2 _ 0.87A to 30A Irms3 _ 0.72A to 16A Packaging _ Tape, Reel SCD Series UNSHIELDED Size _ 0301, 03011, 03015, 03021, 0403, 0501, 0502, 0503, 0504, 0506, 0703, 0705, 0706, 1004, 1005, 1006 Inductance Range _ 1.0ìH to 8,200ìH Test Frequency _ 1KHz to 7.96MHz Tolerance _ ±20%, ±30% DC Resistance _ 0.005Ù to 50Ù Rated Current _ 0.03A to 4.5A Packaging _ Tape, Reel SCDS Series SHIELDED Size _ 2D09, 2D11, 2D14, 2D18, 3D11, 3D16, 3D28, 4D18, 4D28, 5D18, 5D28, 6D28, 6D38, 62, 64, 73, 74, 124, 125, 127, 104R, 105R Inductance Range _ 0.6ìH to 1,000ìH Test Frequency _ 1KHz to 7.96MHz Tolerance _ ±20%, ±30%, +40%/-20% DC Resistance _ 1.09mÙ to 9,440mÙ Rated Current _ 0.13A to 13.8A Packaging _ Tape, Reel SDS Series SHIELDED Size _ 0402BL, 0402, 0804, 1306 Inductance Range _ 0.1ìH to 10,000ìH Test Frequency _ 100KHz Tolerance _ ±20% SRF _ 0.4MHz to 200MHz DC Resistance _ 0.021Ù to 74Ù Current _ 0.01A to 5.6A Packaging _ Tape, Reel SDT Series SHIELDED Size _ 0402, 0804 Inductance Range _ 1.0ìH to 1,000ìH Test Frequency _ 100KHz Tolerance _ ±20% SRF _ 2.3MHz to 157MHz DC Resistance _ 0.025Ù to 8.1Ù Rated Current _ 0.08A to 5A Packaging _ Tape, Reel SLF Series SHIELDED Size _ 0628, 0728, 0730, 0732, 0745, 1045, 1055, 1255, 1265, 1275 Inductance Range _ 1.2ìH to 1,500ìH Test Frequency _ 1KHz Tolerance _ ±20%, ±30% DC Resistance _ 0.0069Ù to 4.78Ù Rated Current _ 0.13A to 13A Packaging _ Tape, Reel
