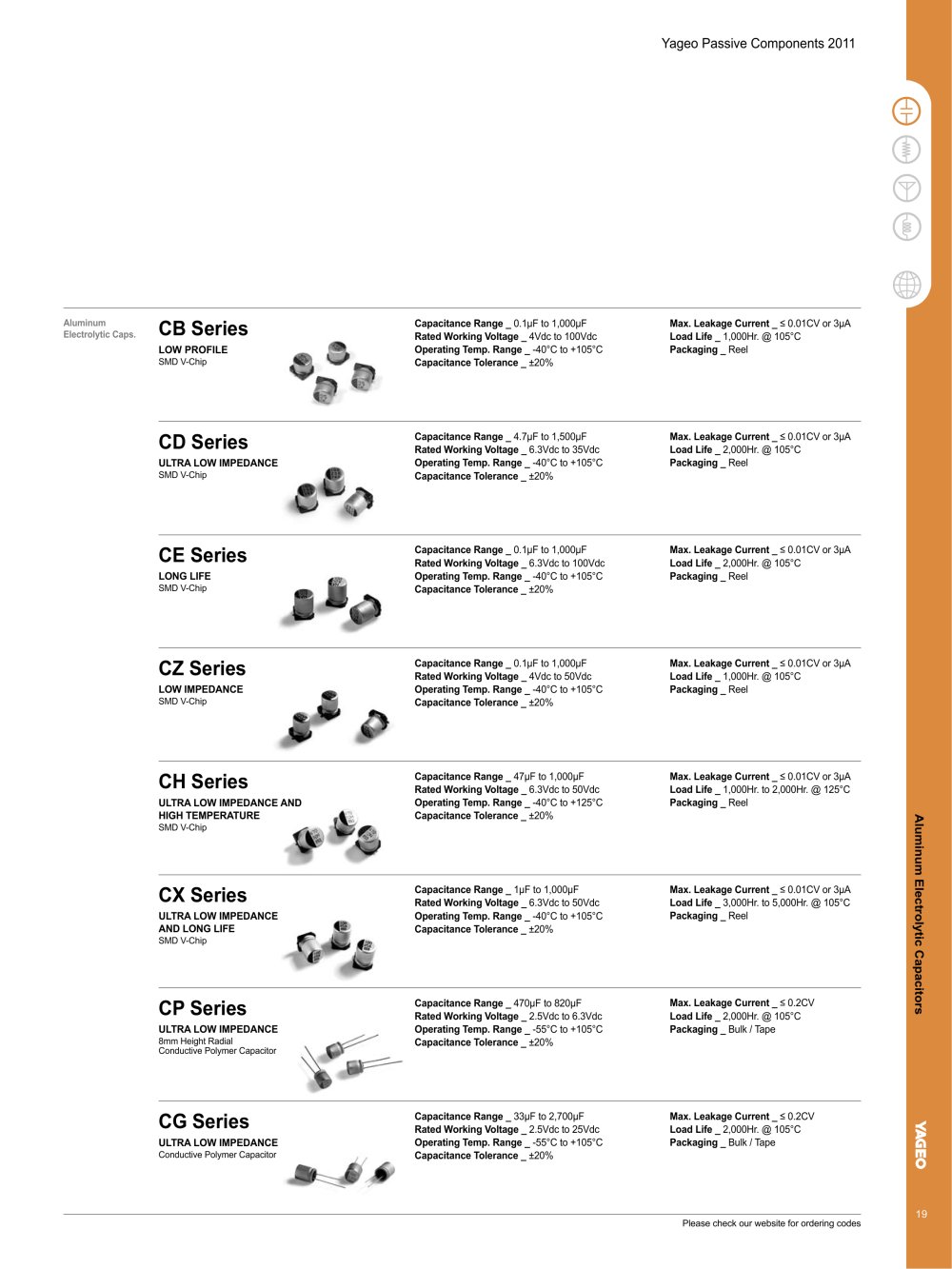

Yageo Passive Components 2011 19 Please check our website for ordering codes Aluminum Electrolytic Capacitors Aluminum Electrolytic Caps. CB Series LOW PROFILE SMD V-Chip Capacitance Range _ 0.1ìF to 1,000ìF Rated Working Voltage _ 4Vdc to 100Vdc Operating Temp. Range _ -40°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.01CV or 3ìA Load Life _ 1,000Hr. @ 105°C Packaging _ Reel CD Series ULTRA LOW IMPEDANCE SMD V-Chip Capacitance Range _ 4.7ìF to 1,500ìF Rated Working Voltage _ 6.3Vdc to 35Vdc Operating Temp. Range _ -40°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.01CV or 3ìA Load Life _ 2,000Hr. @ 105°C Packaging _ Reel CE Series LONG LIFE SMD V-Chip Capacitance Range _ 0.1ìF to 1,000ìF Rated Working Voltage _ 6.3Vdc to 100Vdc Operating Temp. Range _ -40°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.01CV or 3ìA Load Life _ 2,000Hr. @ 105°C Packaging _ Reel CZ Series LOW IMPEDANCE SMD V-Chip Capacitance Range _ 0.1ìF to 1,000ìF Rated Working Voltage _ 4Vdc to 50Vdc Operating Temp. Range _ -40°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.01CV or 3ìA Load Life _ 1,000Hr. @ 105°C Packaging _ Reel CH Series ULTRA LOW IMPEDANCE AND HIGH TEMPERATURE SMD V-Chip Capacitance Range _ 47ìF to 1,000ìF Rated Working Voltage _ 6.3Vdc to 50Vdc Operating Temp. Range _ -40°C to +125°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.01CV or 3ìA Load Life _ 1,000Hr. to 2,000Hr. @ 125°C Packaging _ Reel CX Series ULTRA LOW IMPEDANCE AND LONG LIFE SMD V-Chip Capacitance Range _ 1ìF to 1,000ìF Rated Working Voltage _ 6.3Vdc to 50Vdc Operating Temp. Range _ -40°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.01CV or 3ìA Load Life _ 3,000Hr. to 5,000Hr. @ 105°C Packaging _ Reel CP Series ULTRA LOW IMPEDANCE 8mm Height Radial Conductive Polymer Capacitor Capacitance Range _ 470ìF to 820ìF Rated Working Voltage _ 2.5Vdc to 6.3Vdc Operating Temp. Range _ -55°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.2CV Load Life _ 2,000Hr. @ 105°C Packaging _ Bulk / Tape CG Series ULTRA LOW IMPEDANCE Conductive Polymer Capacitor Capacitance Range _ 33ìF to 2,700ìF Rated Working Voltage _ 2.5Vdc to 25Vdc Operating Temp. Range _ -55°C to +105°C Capacitance Tolerance _ ±20% Max. Leakage Current _ 0.2CV Load Life _ 2,000Hr. @ 105°C Packaging _ Bulk / Tape
