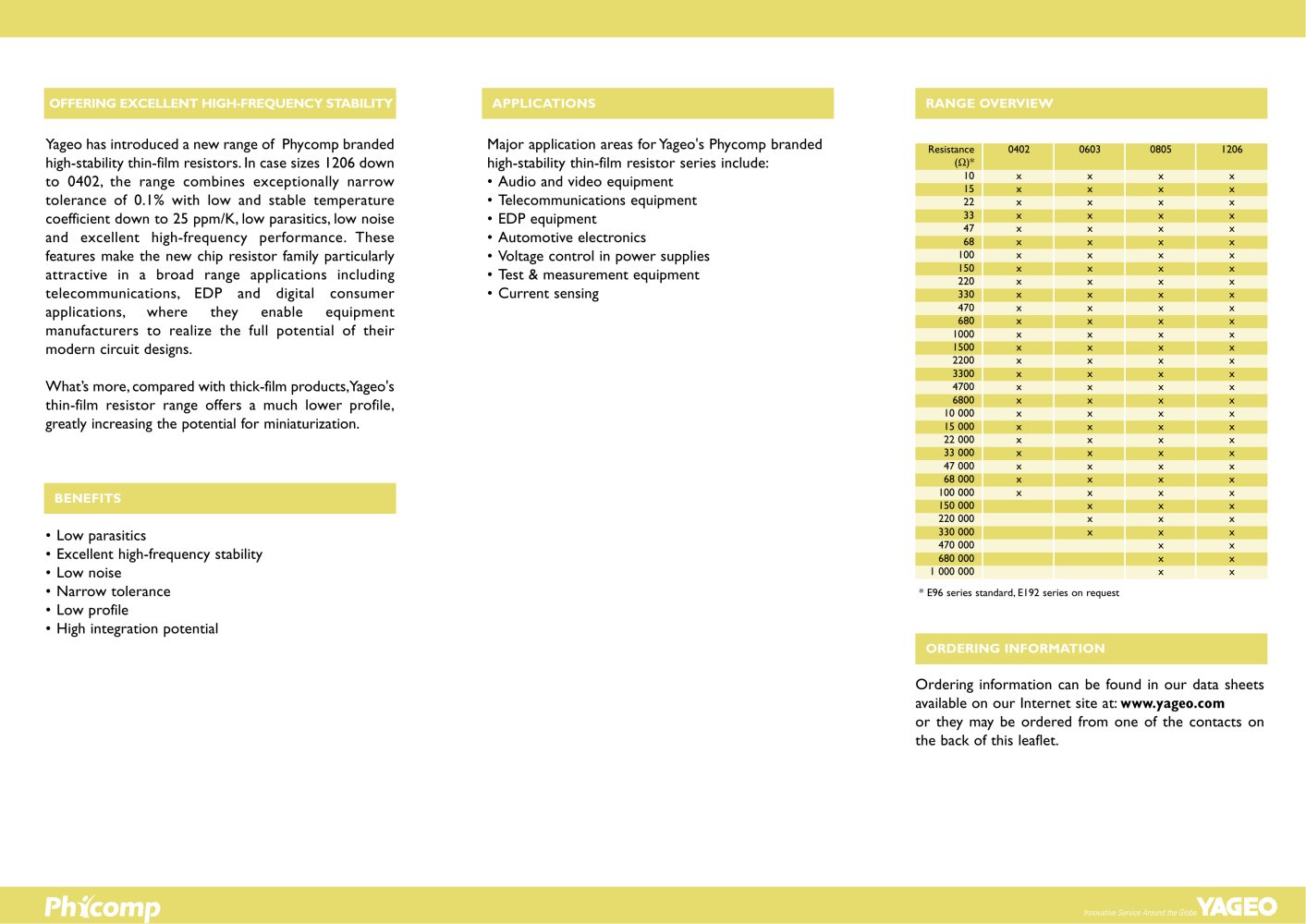

Yageo has introduced a new range of Phycomp branded high-stability thin-film resistors. In case sizes 1206 down to 0402, the range combines exceptionally narrow tolerance of 0.1% with low and stable temperature coefficient down to 25 ppm/K, low parasitics, low noise and excellent high-frequency performance. These features make the new chip resistor family particularly attractive in a broad range applications including telecommunications, EDP and digital consumer applications, where they enable equipment manufacturers to realize the full potential of their modern circuit designs.

What's more, compared with thick-film products,Yageo's thin-film resistor range offers a much lower profile, greatly increasing the potential for miniaturization.

Major application areas for Yageo's Phycomp branded high-stability thin-film resistor series include:

• Audio and video equipment

• Telecommunications equipment

• EDP equipment

• Automotive electronics

• Voltage control in power supplies

• Test & measurement equipment

• Current sensing


Resistance («)*	0402	0603	0805	1206
10	x	x	x	x
15	x	x	x	x
22	x	x	x	x
33	x	x	x	x
47	x	x	x	x
68	x	x	x	x
100	x	x	x	x
150	x	x	x	x
220	x	x	x	x
330	x	x	x	x
470	x	x	x	x
680	x	x	x	x
1000	x	x	x	x
1500	x	x	x	x
2200	x	x	x	x
3300	x	x	x	x
4700	x	x	x	x
6800	x	x	x	x
10 000	x	x	x	x
15 000	x	x	x	x
22 000	x	x	x	x
33 000	x	x	x	x
47 000	x	x	x	x
68 000	x	x	x	x
100 000	x	x	x	x
150 000		x	x	x
220 000		x	x	x
330 000		x	x	x
470 000			x	x
680 000			x	x
1 000 000			x	x

• Low parasitics

• Excellent high-frequency stability

• Low noise

• Narrow tolerance

• Low profile

• High integration potential

* E96 series standard, EI92 series on request

Ordering information can be found in our data sheets available on our Internet site at: www.yageo.com or they may be ordered from one of the contacts on the back of this leaflet.
