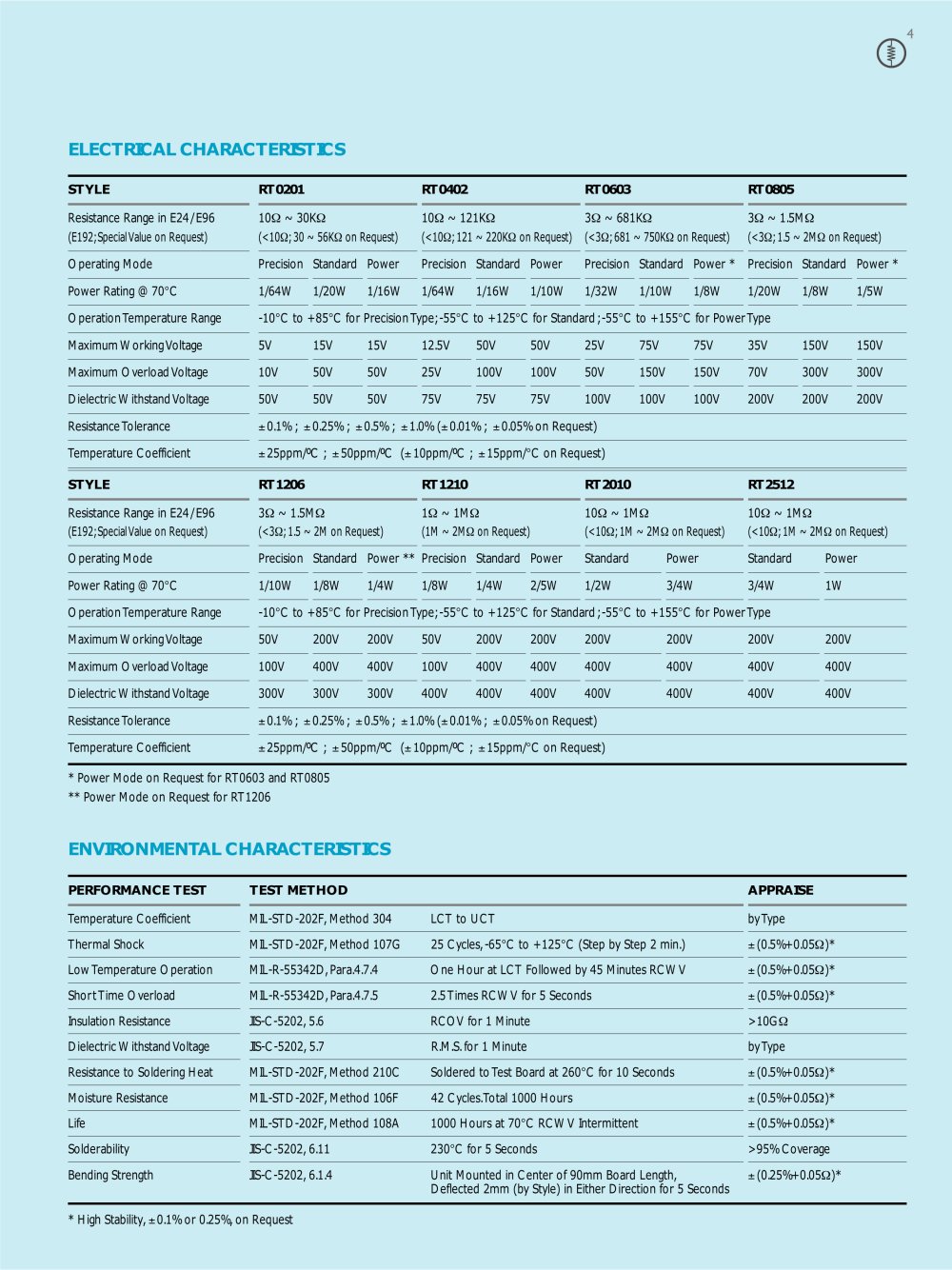

Thin Film Chip Resistors - 34786 ELECTRICAL CHARACTERISTICS

STYLERT0201RT0402RT0603RT0805 Resistance Range in E24/E9610 ~ 30K 10 ~ 121K 3 ~ 681K 3 ~ 1.5M (E192; Special Value on Request)(<10 ; 30 ~ 56K on Request)(<10 ; 121 ~ 220K on Request)(<3 ; 681 ~ 750K on Request)(<3 ; 1.5 ~ 2M on Request) Operating ModePrecisionStandardPowerPrecisionStandardPowerPrecisionStandardPower *PrecisionStandardPower * Power Rating @ 70 ° C1/64W1/20W1/16W1/64W1/16W1/10W1/32W1/10W1/8W1/20W1/8W1/5W Operation Temperature Range-10 ° C to +85 ° C for Precision Type; -55 ° C to +125 ° C for Standard; -55 ° C to +155 ° C for Power Type Maximum Working Voltage5V15V15V12.5V50V50V25V75V75V35V150V150V Maximum Overload Voltage10V50V50V25V100V100V50V150V150V70V300V300V Dielectric Withstand Voltage50V50V50V75V75V75V100V100V100V200V200V200V Resistance Tolerance ± 0.1% ; ± 0.25% ; ± 0.5% ; ± 1.0% ( ± 0.01% ; ± 0.05% on Request) Temperature Coefficient ± 25ppm/ºC ; ± 50ppm/ºC ( ± 10ppm/ºC ; ± 15ppm/ ° C on Request) STYLERT1206RT1210RT2010RT2512 Resistance Range in E24/E963 ~ 1.5M 1 ~ 1M 10 ~ 1M 10 ~ 1M (E192; Special Value on Request)(<3 ; 1.5 ~ 2M on Request)(1M ~ 2M on Request)(<10 ; 1M ~ 2M on Request)(<10 ; 1M ~ 2M on Request) Operating ModePrecisionStandardPower **PrecisionStandardPowerStandardPowerStandardPower Power Rating @ 70 ° C1/10W1/8W1/4W1/8W1/4W2/5W1/2W3/4W3/4W1W Operation Temperature Range-10 ° C to +85 ° C for Precision Type; -55 ° C to +125 ° C for Standard; -55 ° C to +155 ° C for Power Type Maximum Working Voltage50V200V200V50V200V200V200V200V200V200V Maximum Overload Voltage100V400V400V100V400V400V400V400V400V400V Dielectric Withstand Voltage300V300V300V400V400V400V400V400V400V400V Resistance Tolerance ± 0.1% ; ± 0.25% ; ± 0.5% ; ± 1.0% ( ± 0.01% ; ± 0.05% on Request) Temperature Coefficient ± 25ppm/ºC ; ± 50ppm/ºC ( ± 10ppm/ºC ; ± 15ppm/ ° C on Request)* Power Mode on Request for RT0603 and RT0805** Power Mode on Request for RT1206

ENVIRONMENTAL CHARACTERISTICS

PERFORMANCETESTTEST METHODAPPRAISE Temperature CoefficientMIL-STD-202F, Method 304LCT to UCTby Type Thermal ShockMIL-STD-202F, Method 107G25 Cycles, -65 ° C to +125 ° C (Step by Step 2 min.) ± (0.5%+0.05 )* Low Temperature OperationMIL-R-55342D, Para.4.7.4One Hour at LCT Followed by 45 Minutes RCWV ± (0.5%+0.05 )* Short Time OverloadMIL-R-55342D, Para.4.7.52.5 Times RCWV for 5 Seconds ± (0.5%+0.05 )* Insulation ResistanceJIS-C-5202, 5.6RCOV for 1 Minute>10G Dielectric Withstand VoltageJIS-C-5202, 5.7R.M.S. for 1 Minuteby Type Resistance to Soldering HeatMIL-STD-202F, Method 210CSoldered to Test Board at 260 ° C for 10 Seconds ± (0.5%+0.05 )* Moisture ResistanceMIL-STD-202F, Method 106F42 Cycles. Total 1000 Hours ± (0.5%+0.05 )* LifeMIL-STD-202F, Method 108A1000 Hours at 70 ° C RCWV Intermittent ± (0.5%+0.05 )* SolderabilityJIS-C-5202, 6.11230 ° C for 5 Seconds>95% CoverageBending StrengthJIS-C-5202, 6.1.4Unit Mounted in Center of 90mm Board Length, ± (0.25%+0.05 )* Deflected 2mm (by Style) in Either Direction for 5 Seconds* High Stability, ± 0.1% or 0.25%, on Request
