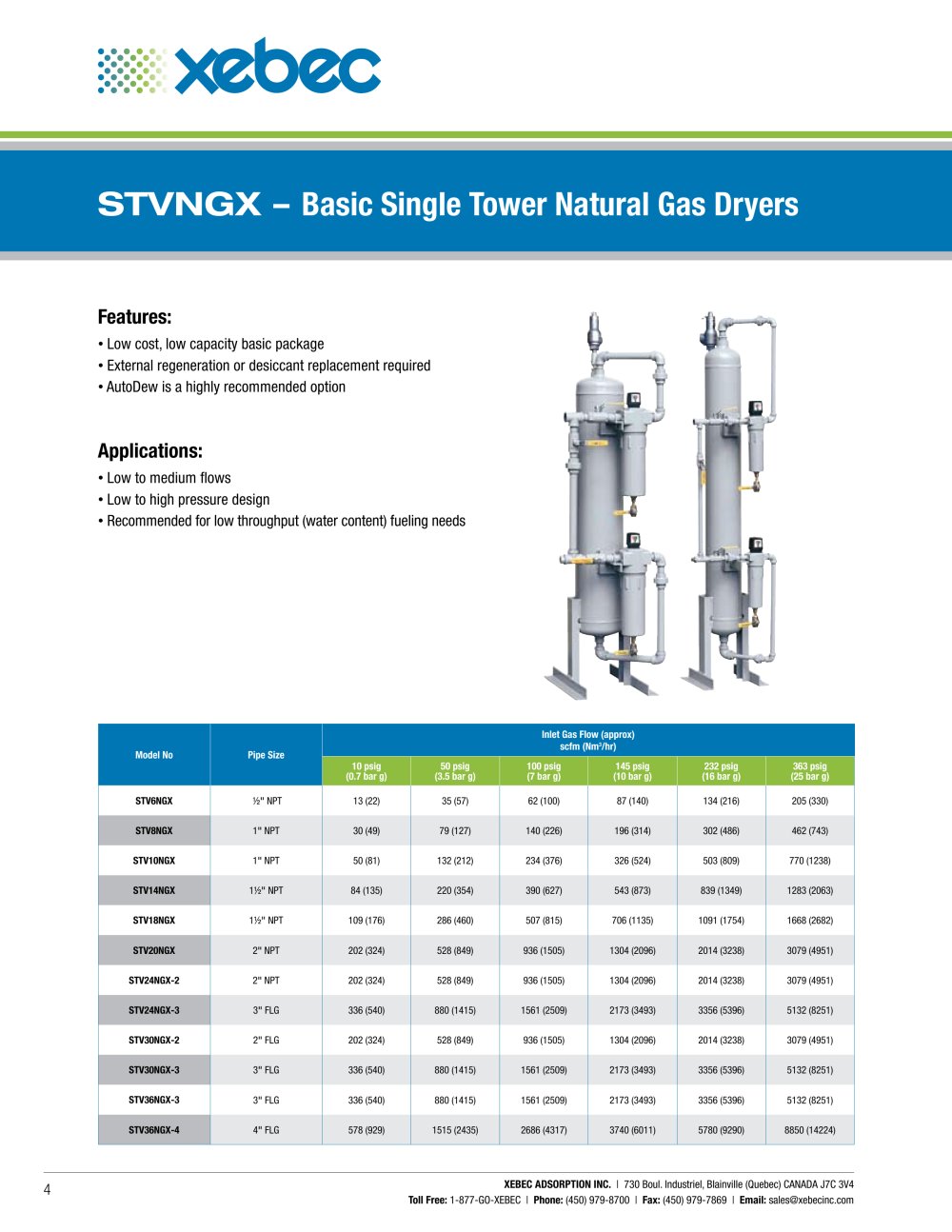

STVNGX – Basic Single Tower Natural Gas Dryers

Features:

s

Low cost, low capacity basic package

s

External regeneration or desiccant replacement required

s

AutoDew is a highly recommended option

Applications:

s

Low to medium flows

s

Low to high pressure design

s

Recommended for low throughput (water content) fueling needs

3 /hr)10 psig(0.7 bar g)50 psig(3.5 bar g)100 psig(7 bar g)145 psig(10 bar g)232 psig(16 bar g)363 psig(25 bar g) Model NoPipe SizeInlet Gas Flow (approx)scfm (Nm STV6NGX ½ " NPT13 (22)35 (57)62 (100)87 (140)134 (216)205 (330) STV8NGX 1 " NPT30 (49)79 (127)140 (226)196 (314)302 (486)462 (743) STV10NGX 1 " NPT50 (81)132 (212)234 (376)326 (524)503 (809)770 (1238) STV14NGX 1½ " NPT84 (135)220 (354)390 (627)543 (873)839 (1349)1283 (2063) STV18NGX 1½ " NPT109 (176)286 (460)507 (815)706 (1135)1091 (1754)1668 (2682) STV20NGX 2 " NPT202 (324)528 (849)936 (1505)1304 (2096)2014 (3238)3079 (4951) STV24NGX-2 2 " NPT202 (324)528 (849)936 (1505)1304 (2096)2014 (3238)3079 (4951) STV24NGX-3 3 " FLG336 (540)880 (1415)1561 (2509)2173 (3493)3356 (5396)5132 (8251) STV30NGX-2 2 " FLG202 (324)528 (849)936 (1505)1304 (2096)2014 (3238)3079 (4951) STV30NGX-3 3 " FLG336 (540)880 (1415)1561 (2509)2173 (3493)3356 (5396)5132 (8251) STV36NGX-3 3 " FLG336 (540)880 (1415)1561 (2509)2173 (3493)3356 (5396)5132 (8251) STV36NGX-4 4 " FLG578 (929)1515 (2435)2686 (4317)3740 (6011)5780 (9290)8850 (14224)

4
