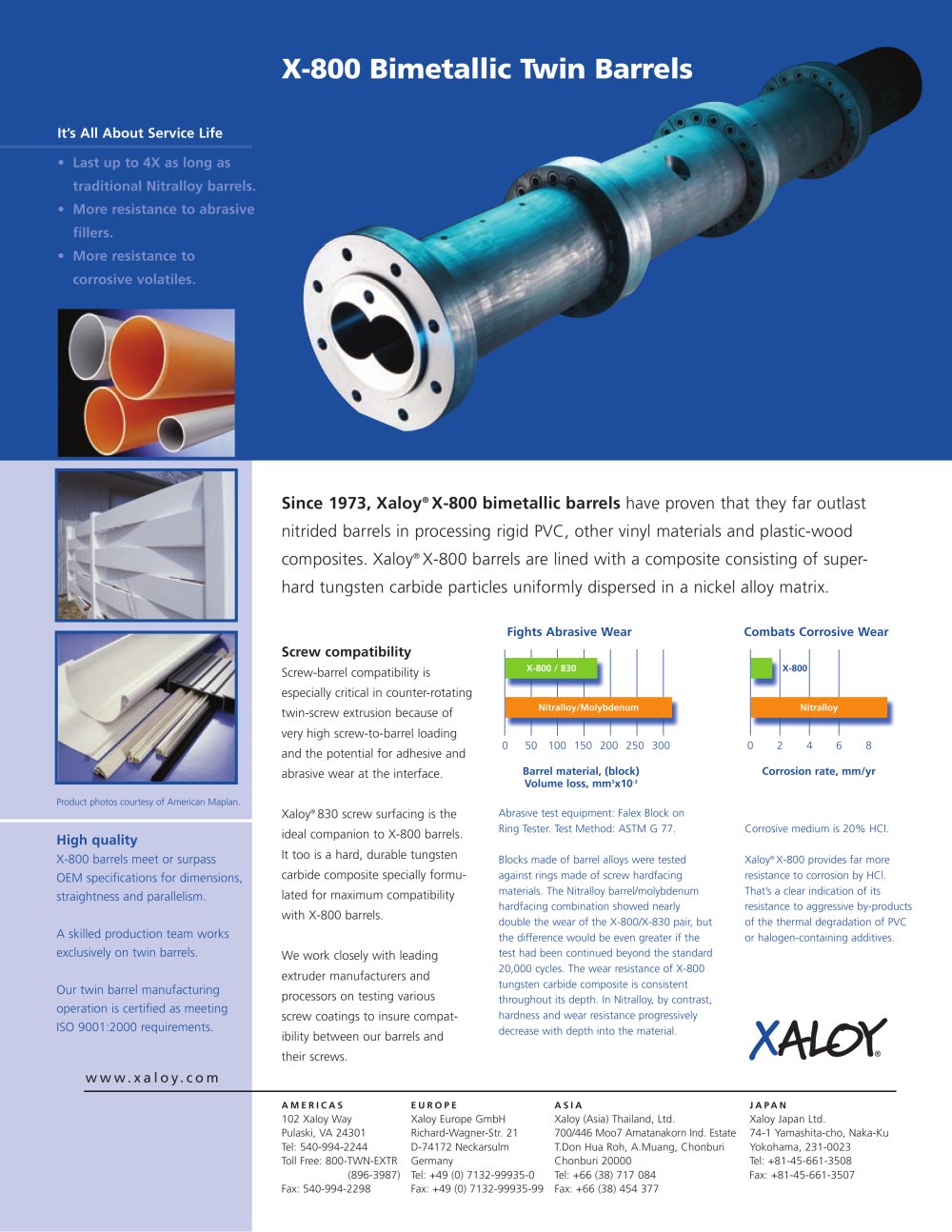

X-800 Bimetallic Twin Barrels

It’s All About Service Life •Last up to 4X as long astraditional Nitralloy barrels.•More resistance to abrasivefillers.•More resistance tocorrosive volatiles.

Since 1973, Xaloy

®

X-800 bimetallic barrels have proven that they far outlastnitrided barrels in processing rigid PVC, other vinyl materials and plastic-wood composites. Xaloy

®

X-800 barrels are lined with a composite consisting of super-hard tungsten carbide particles uniformly dispersed in a nickel alloy matrix.

Combats Corrosive WearFights Abrasive Wear

Screw compatibility

Screw-barrel compatibility isespecially critical in counter-rotating twin-screw extrusion because of very high screw-to-barrel loading and the potential for adhesive and abrasive wear at the interface.Xaloy

X-800 / 830 X-800 Nitralloy/Molybdenum Nitralloy 0 5010015020025030002468 Corrosion rate, mm/yr Barrel material, (block)Volume loss, mm
3 x10
-3 Product photos courtesy of American Maplan. ®

830 screw surfacing is theideal companion to X-800 barrels. It too is a hard, durable tungsten carbide composite specially formu- lated for maximum compatibility with X-800 barrels.We work closely with leadingextruder manufacturers and processors on testing various screw coatings to insure compat- ibility between our barrels and their screws.

Abrasive test equipment: Falex Block on Ring Tester. Test Method: ASTM G 77.Blocks made of barrel alloys were testedagainst rings made of screw hardfacing materials. The Nitralloy barrel/molybdenumhardfacing combination showed nearlydouble the wear of the X-800/X-830 pair, but the difference would be even greater if the test had been continued beyond the standard 20,000 cycles. The wear resistance of X-800tungsten carbide composite is consistentthroughout its depth. In Nitralloy, by contrast, hardness and wear resistance progressively decrease with depth into the material. Corrosive medium is 20% HCl.Xaloy

High quality

X-800 barrels meet or surpassOEM specifications for dimensions, straightness and parallelism.A skilled production team worksexclusively on twin barrels.Our twin barrel manufacturingoperation is certified as meeting ISO 9001:2000 requirements.

® X-800 provides far moreresistance to corrosion by HCl. That’s a clear indication of itsresistance to aggressive by-productsof the thermal degradation of PVC or halogen-containing additives.

www.xaloy.com

AMERICAS EUROPE ASIA JAPAN 102 Xaloy Way Pulaski, VA 24301 Tel: 540-994-2244 Toll Free: 800-TWN-EXTR (896-3987) Fax: 540-994-2298 Xaloy Europe GmbH Richard-Wagner-Str. 21 D-74172 Neckarsulm Germany Tel: +49 (0) 7132-99935-0 Fax: +49 (0) 7132-99935-99 Xaloy (Asia) Thailand, Ltd. Xaloy Japan Ltd. 74-1 Yamashita-cho, Naka-KuYokohama, 231-0023Tel: +81-45-661-3508 Fax: +81-45-661-3507 700/446 Moo7 Amatanakorn Ind. Estate T.Don Hua Roh, A.Muang, Chonburi Chonburi 20000 Tel: +66 (38) 717 084 Fax: +66 (38) 454 377
