| Benefits • Uniform polymer flow to die plate • Lower inlet pressure = increased rates • Rapid blade and die plate removal • Fast color changes • Easy clean-out • Simple start-up and operation • Improved pellet dryness • Easy dryer access and cleanibility • Insensitive to process variations Features • In-line cutter geometry • Retractable cutter head design • Open water trough • New cylindrical pellet dryer • Integral dryer blower • Fully interlocked control system • Independent pellet cut | ||||||||||||||||||||||||||

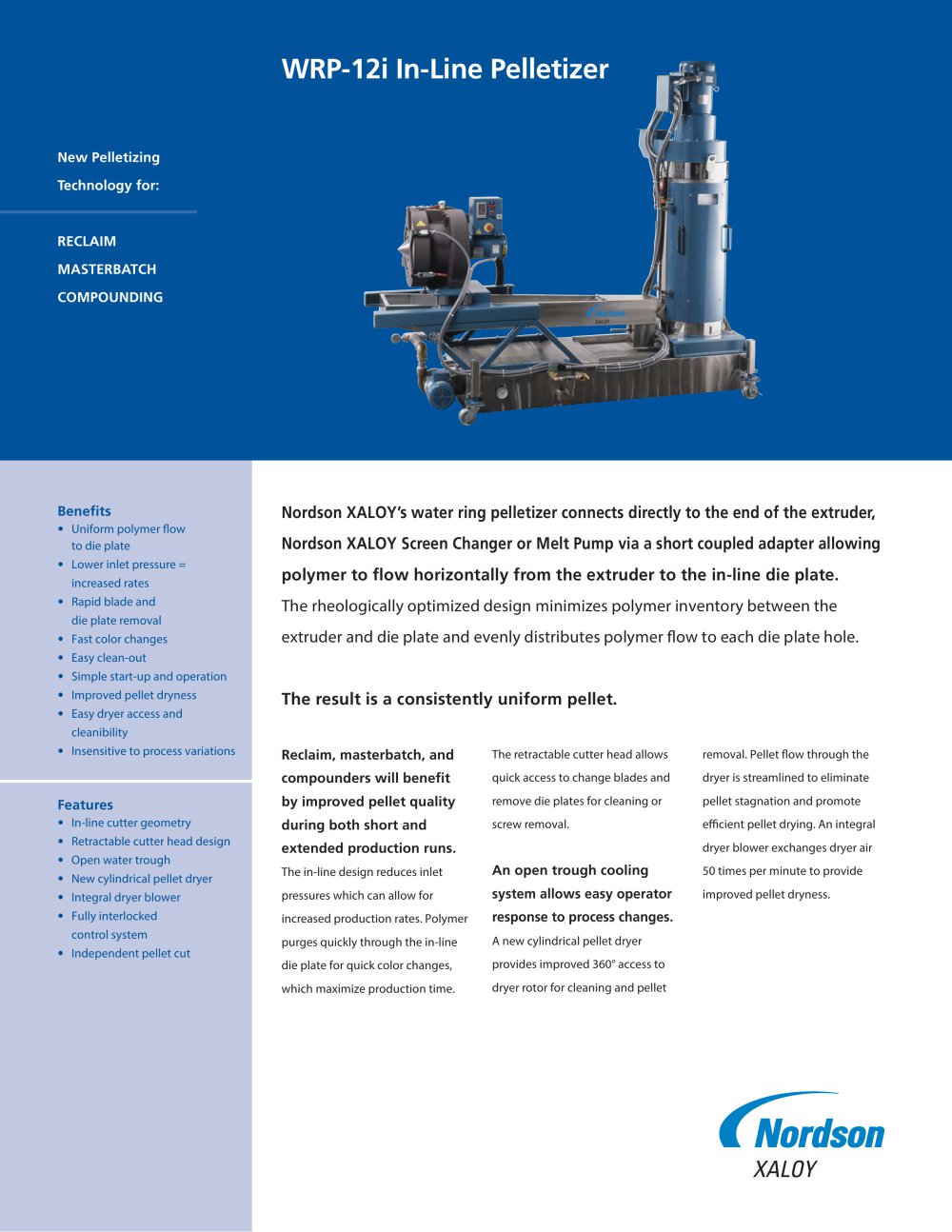

| Xaloy's water ring pelletizer connects directly to the end of the extruder, Xaloy Screen Changer or Melt Pump via a short coupled adapter allowing polymer to flow horizontally from the extruder to the in-line die plate. The rheologically optimized design minimizes polymer inventory between the extruder and die plate and evenly distributes polymer flow to each die plate hole. The result is a consistently uniform pellet. | ||||||||||||||||||||||||||
| Reclaim, masterbatch, and compounders will benefit by improved pellet quality during both short and extended production runs. The in-line design reduces inlet pressures which can allow for increased production rates. Polymer purges quickly through the in-line die plate for quick color changes, which maximize production time. | ||||||||||||||||||||||||||
| The retractable cutter head allows quick access to change blades and remove die plates for cleaning or screw removal. An open trough cooling system allows easy operator response to process changes. A new cylindrical pellet dryer provides improved 360° access to dryer rotor for cleaning and pellet | removal. Pellet flow through the dryer is streamlined to eliminate pellet stagnation and promote efficient pellet drying. An integral dryer blower exchanges dryer air 50 times per minute to provide improved pellet dryness. | |||||||||||||||||||||||||
| wax | ||||||||||||||||||||||||||
| www.xaloy.com | ||||||||||||||||||||||||||
| every pellet knows our name™ | ||||||||||||||||||||||||||
| EXTRUSION 1291 19th Street Lane NW Hickory, NC 28601 Tel: 828-326-9888 Toll-free: 800-457-7550 Fax: 828-326-8882 | INJECTION 102 Xaloy Way Pulaski, VA 24301 Tel: 540-980-7560 Toll-free: 800-816-7711 Fax: 540-980-5670 | EUROPE Xaloy GMBH Wannenąckerstrasse 24 74078 Heilbronn Germany Tel: 49-7131-20360-0 Fax: 49-7131-20360-29 | ASIA Xaloy (Asia) Thailand, Ltd. 700/446 Moo7 Amatanakorn Ind. Estate T.Don Hua Roh, A.Muang, Chonburi Chonburi 20000 Tel: +66 (38) 717 084 Fax: +66 (38) 454 377 | JAPAN Xaloy Japan Ltd. 74-1 Yamashita-cho, Naka-Ku Yokohama, 231-0023 Tel: +81-45-661-3508 Fax: +81-45-661-3507 | ||||||||||||||||||||||
