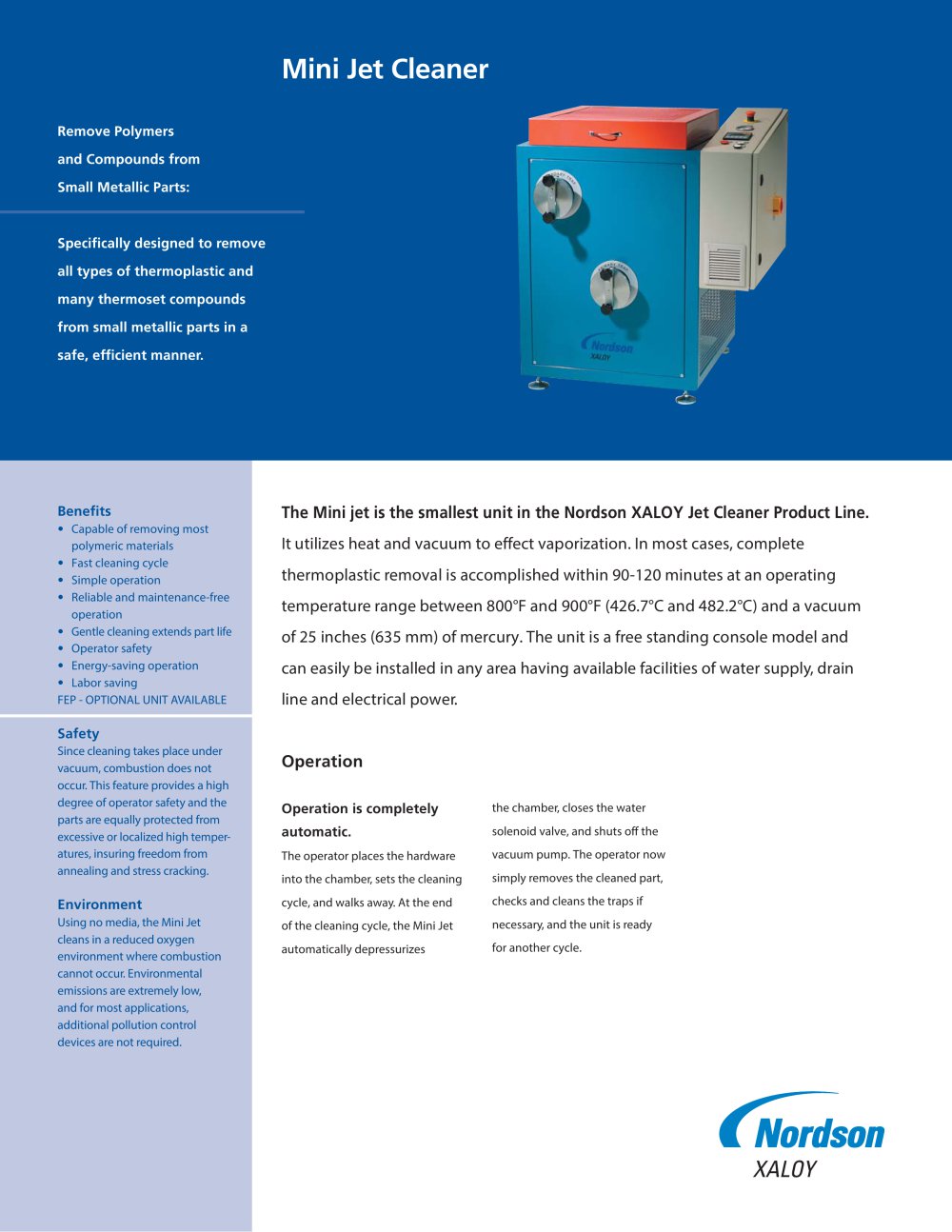

Mini Jet Cleaner

Remove Polymers and Compounds from Small Metallic Parts: Specifically designed to remove all types of thermoplastic and many thermoset compounds from small metallic parts in a safe, efficient manner.

Operation

Benefits

The Mini jet is the smallest unit in the Xaloy Jet Cleaner Product Line.

•Capable of removing mostpolymeric materials•Fast cleaning cycle •Simple operation •Reliable and maintenance-freeoperation•

It utilizes heat and vacuum to effect vaporization. In most cases, complete thermoplastic removal is accomplished within 90-120 minutes at an operating temperature range between 800°F and 900°F and a vacuum of twenty-five (25) inches of mercury. The unit is a free standing console model and can easily be installed in any area having available facilities of water supply, drain line and electrical power.

Gentle cleaning extends part life •Operator safety •Energy-saving operation •Labor saving FEP -OPTIONALUNITAVAILABLE

Safety

Since cleaning takes place under vacuum, combustion does not occur. This feature provides a high degree of operator safety and the parts are equally protected from

Operation is completelyautomatic.

excessive or localized high temper- atures, insuring freedom from annealing and stress cracking. The operator places the hardwareinto the chamber, sets the cleaning cycle, and walks away. At the end of the cleaning cycle, the Mini Jet automatically depressurizes the chamber, closes the watersolenoid valve, and shuts off the vacuum pump. The operator now simply removes the cleaned part, checks and cleans the traps if necessary, and the unit is ready for another cycle.

Environment

Using no media, the Mini Jet cleans in a reduced oxygen environment where combustion cannot occur. Environmental emissions are extremely low, and for most applications, additional pollution control devices are not required.
