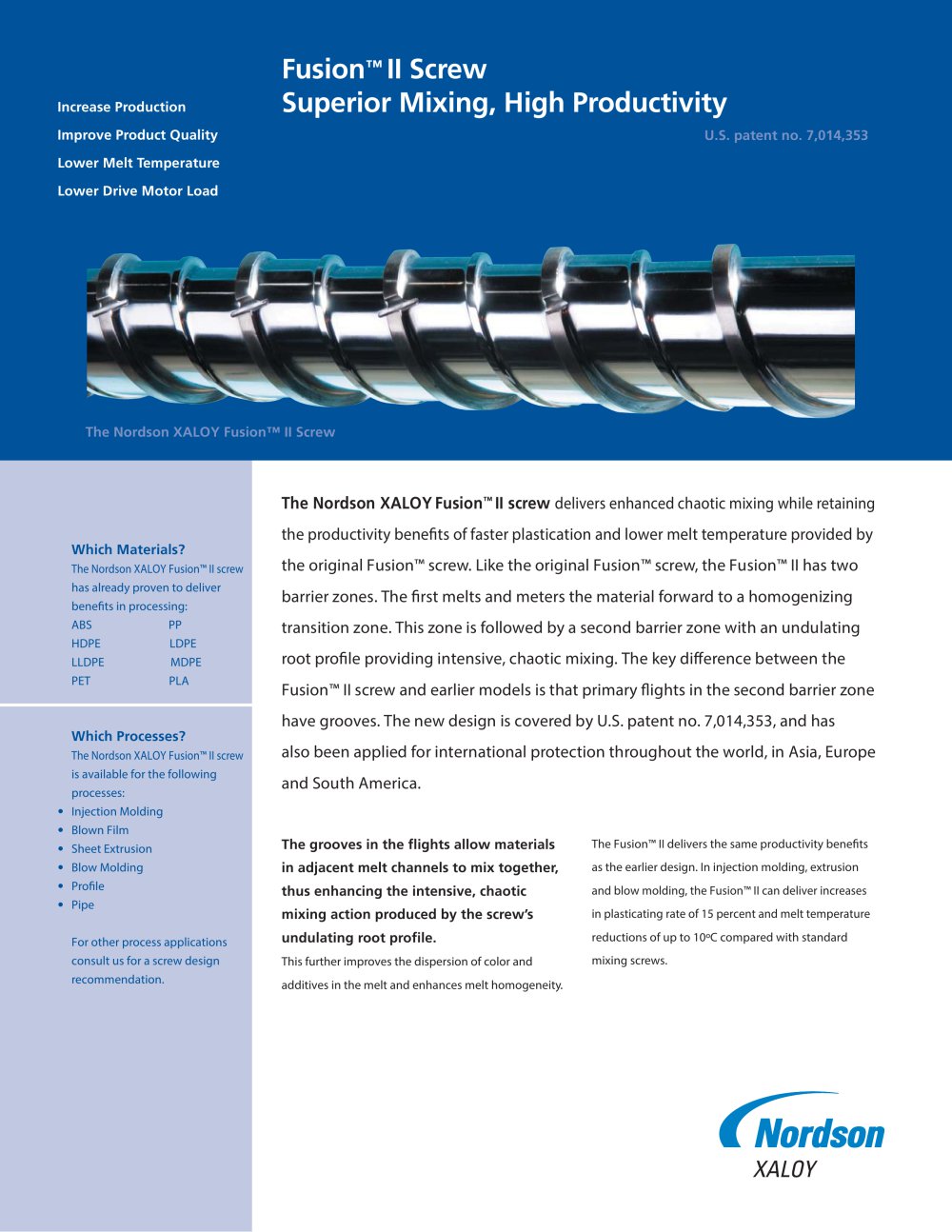

| Fusion™ II Screw Superior Mixing, High Productivity | |||||||||||||||||||||||||||||||||||||||
| Increase Production Improve Product Quality Lower Melt Temperature Lower Drive Motor Load | |||||||||||||||||||||||||||||||||||||||
| U.S. patent no. 7,014,353 | |||||||||||||||||||||||||||||||||||||||
| r—/* r | |||||||||||||||||||||||||||||||||||||||
| The Xaloy Fusion™ II Screw | |||||||||||||||||||||||||||||||||||||||
| The Xaloy® Fusion™ II screw delivers enhanced chaotic mixing while retaining the productivity benefits of faster plastication and lower melt temperature provided by the original Fusion™ screw. Like the original Fusion™ screw, the Fusion™ II has two barrier zones. The first melts and meters the material forward to a homogenizing transition zone. This zone is followed by a second barrier zone with an undulating root profile providing intensive, chaotic mixing. The key difference between the Fusion™ II screw and earlier models is that primary flights in the second barrier zone have grooves. The new design is covered by U.S. patent no. 7,014,353, and has also been applied for international protection throughout the world, in Asia, Europe and South America. | |||||||||||||||||||||||||||||||||||||||
| Which Materials? The Xaloy® Fusion™ II screw has already proven to deliver benefits in processing: ABS PP HDPE LDPE LLDPE MDPE PET PLA | |||||||||||||||||||||||||||||||||||||||
| Which Processes? The Xaloy® Fusion™ II screw Is available for the following processes: • Injection Molding • Blown Film • Sheet Extrusion • Blow Molding • Profile • Pipe | |||||||||||||||||||||||||||||||||||||||
| The grooves in the flights allow materials in adjacent melt channels to mix together, thus enhancing the intensive, chaotic mixing action produced by the screw's undulating root profile. This further improves the dispersion of color and additives in the melt and enhances melt homogeneity. | |||||||||||||||||||||||||||||||||||||||
| The Fusion™ II delivers the same productivity benefits as the earlier design. In injection molding, extrusion and blow molding, the Fusion™ II can deliver increases in plasticating rate of 15 percent and melt temperature reductions of up to 10°C compared with standard mixing screws. | |||||||||||||||||||||||||||||||||||||||
| For other process applications consult us for a screw design recommendation. | |||||||||||||||||||||||||||||||||||||||
| wax | |||||||||||||||||||||||||||||||||||||||
| www.xaloy.com | |||||||||||||||||||||||||||||||||||||||
| every pellet knows our name™ | |||||||||||||||||||||||||||||||||||||||
| EXTRUSION 1291 19th Street Lane NW Hickory, NC 28601 Tel: 828-326-9888 Toll-free: 800-457-7550 Fax: 828-326-8882 | INJECTION 102 Xaloy Way Pulaski, VA 24301 Tel: 540-980-7560 Toll-free: 800-816-7711 Fax: 540-980-5670 | EUROPE Xaloy Europe GmbH Richard-Wagner-Str. 21 D-74172 Neckarsulm Germany | ASIA Xaloy (Asia) Thailand, Ltd. 700/446 Moo7 Amatanakorn Ind. Estate T.Don Hua Roh, A.Muang, Chonburi Chonburi 20000 | JAPAN Xaloy Japan Ltd. 74-1 Yamashita-cho, Naka-Ku Yokohama, 231-0023 Tel: +81-45-661-3508 Fax: +81-45-661-3507 | |||||||||||||||||||||||||||||||||||
