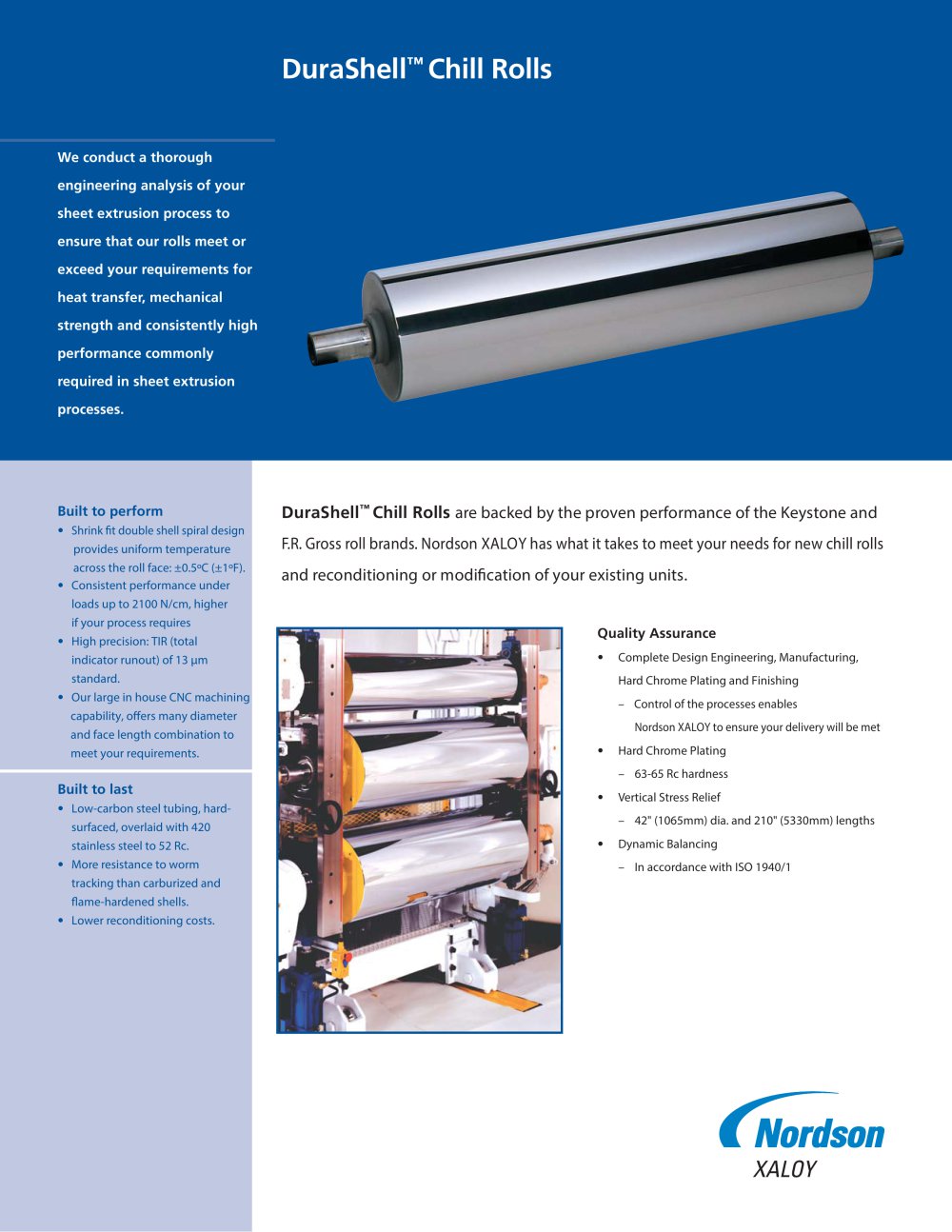

Durashell - Xaloy - #1

We conduct a thorough engineering analysis of your sheet extrusion process to ensure that our rolls meet or exceed your requirements for heat transfer, mechanical strength and consistently high performance

• Uniform temperature across the roll face: ±0.5°C (±1°F)

• Consistent performance under loads up to 1200 pli (2100 N/cm), higher if your process requires

• High precision: TIR of 0.0005 in. (13 urn) standard.

• Size: Diameter up to 48 in. (122 cm) , length up to 300 in. (762 cm)

• Low-carbon steel tubing, hard-surfaced, overlaid with 420 stainless steel (48 -52 Rc).

• More resistance to worm tracking than carburized and flame-hardened shells

• Lower reconditioning costs

Flawless Bright Standard Polish Satin Coarse Super Mirror Mirrror Finish Finish Matte

>1 1-2 2-4 6-32 Variable 125-150

Specialty finishes: water retention, flash plating over matte, pocket release, 30-50% gloss, tungsten carbide coating and engraved patterns.

• Complete manufacturing and assembly in our own plants

• Hard chrome plating

• Vertical stress relief

• Large-diameter honing

• Dynamic balancing

For more information about new rolls, reconditioning or modification of existing rolls or a quotation, contact your

Xaloy representative today. To contact a representative in your vicinity, visit xaloy.com on the Web.
