| BHP-Nozzle, Technical Documentation | ||||||||

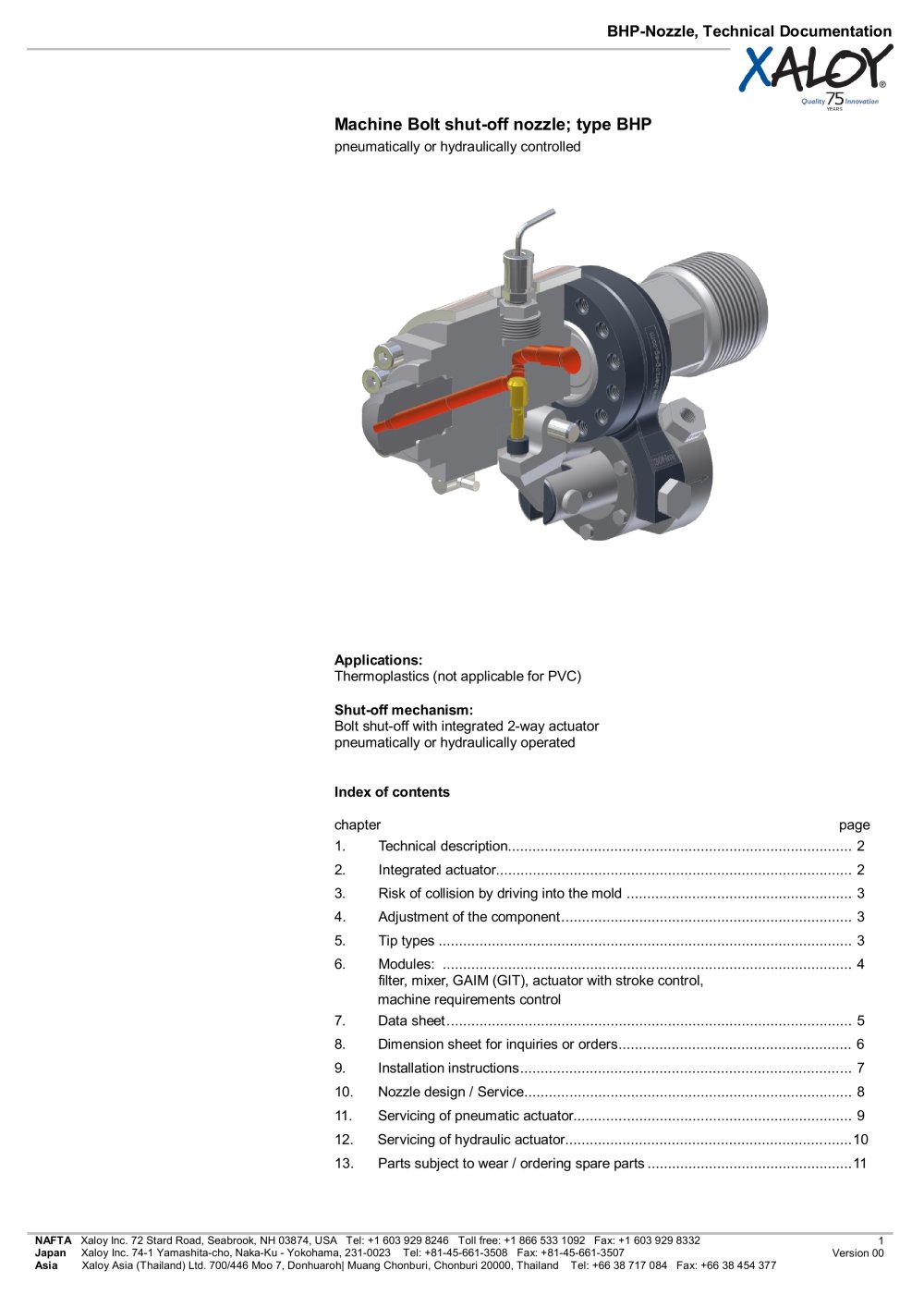

| TEARS Machine Bolt shut-off nozzle; type BHP pneumatically or hydraulically controlled Applications: Thermoplastics (not applicable for PVC) Shut-off mechanism: Bolt shut-off with integrated 2-way actuator pneumatically or hydraulically operated Index of contents chapter page 1. Technical description....................................................................................2 2. Integrated actuator....................................................................................... 2 3. Risk of collision by driving into the mold.......................................................3 4. Adjustment of the component.......................................................................3 5. Tip types.....................................................................................................3 6. Modules: ....................................................................................................4 filter, mixer, GAIM (GIT), actuator with stroke control, machine requirements control 7. Data sheet...................................................................................................5 8. Dimension sheet for inquiries or orders.........................................................6 9. Installation instructions.................................................................................7 10. Nozzle design / Service................................................................................8 11. Servicing of pneumatic actuator.................................................................... 9 12. Servicing of hydraulic actuator......................................................................10 13. Parts subject to wear / ordering spare parts..................................................11 | ||||||||
| NAFTA Xaloy Inc. 72 Stard Road, Seabrook, NH 03874, USA Tel: +1 603 929 8246 Toll free: +1 866 533 1092 Fax: +1 603 929 8332 1 Japan Xaloy Inc. 74-1 Yamashita-cho, Naka-Ku - Yokohama, 231-0023 Tel: +81-45-661-3508 Fax: +81-45-661-3507 Version 00 Asia Xaloy Asia (Thailand) Ltd. 700/446 Moo 7, Donhuaroh| Muang Chonburi, Chonburi 20000, Thailand Tel: +66 38 717 084 Fax: +66 38 454 377 | ||||||||
