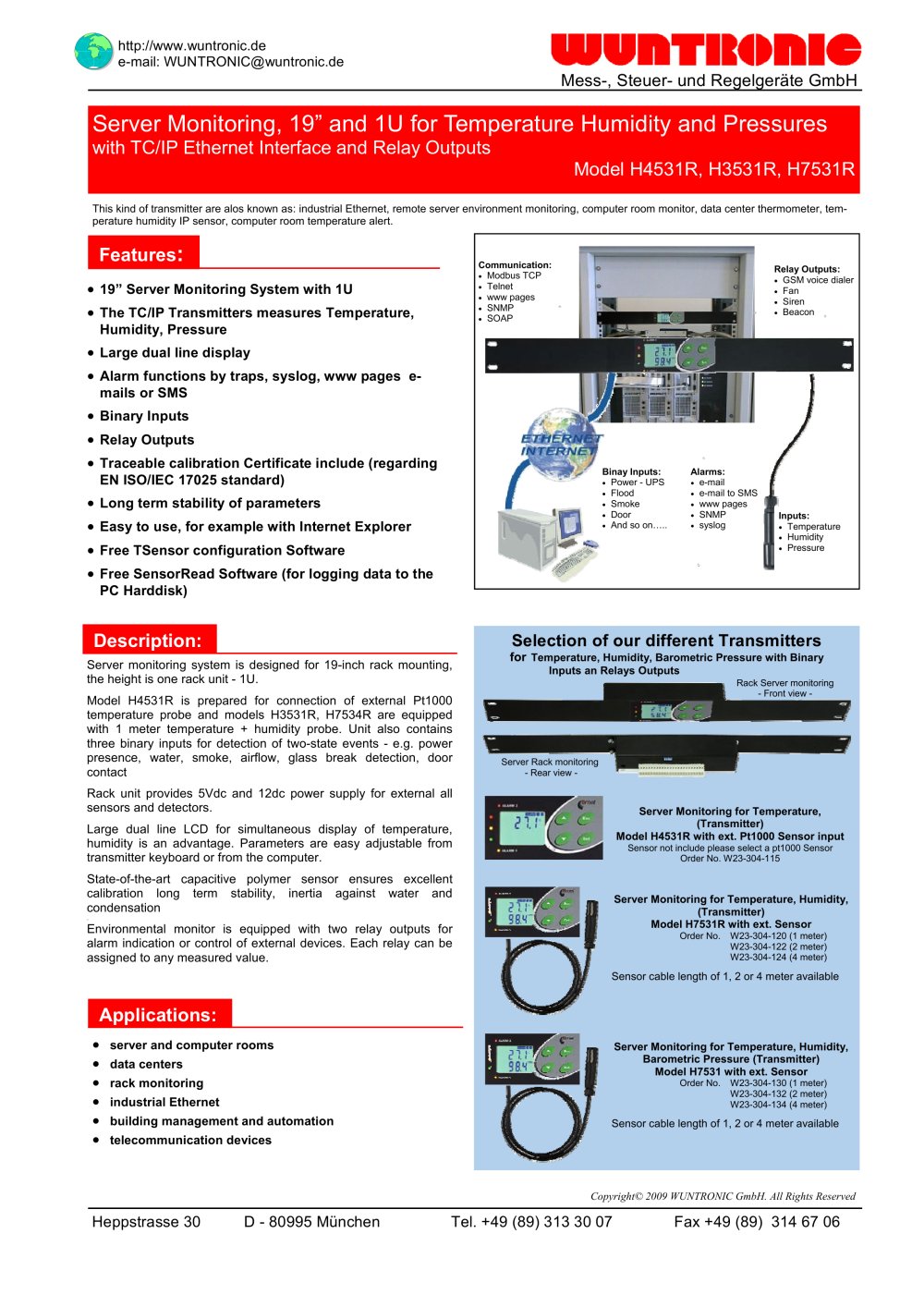

Server Monitoring, 19” and 1U for Temperature Humidity and Pressures
with TC/IP Ethernet Interface and Relay Outputs
Model H4531R, H3531R, H7531R
Server monitoring system is designed for 19-inch rack mounting,
the height is one rack unit - 1U.
Model H4531R is prepared for connection of external Pt1000
temperature probe and models H3531R, H7534R are equipped
with 1 meter temperature + humidity probe. Unit also contains
three binary inputs for detection of two-state events - e.g. power
presence, water, smoke, airflow, glass break detection, door
contact
Rack unit provides 5Vdc and 12dc power supply for external all
sensors and detectors.
Large dual line LCD for simultaneous display of temperature,
humidity is an advantage. Parameters are easy adjustable from
transmitter keyboard or from the computer.
State-of-the-art capacitive polymer
sensor ensures excellent
calibration long term stability, inertia against water and
condensation
.
Environmental monitor is equipped with two relay outputs for
alarm indication or control of external devices. Each relay can be
assigned to any measured value.
„hƒn 19” Server Monitoring System with 1U
„hƒnThe TC/IP Transmitters measures Temperature,
Humidity, Pressure
„hƒnLarge dual line display
„hƒnAlarm functions by traps, syslog, www pages emails
or SMS
„hƒnBinary Inputs
„hƒnRelay Outputs
„hƒnTraceable calibration Certificate include (regarding
EN ISO/IEC 17025 standard)
„hƒnLong term stability of parameters
„hƒnEasy to use, for example with Internet Explorer
„hƒnFree TSensor configuration Software
„hƒnFree SensorRead Software (for logging data to the
PC Harddisk)
Features:
Description:
„hƒn server and computer rooms
„hƒn data centers
„hƒn rack monitoring
„hƒn industrial Ethernet
„hƒn building management and automation
„hƒn telecommunication devices
Applications:
Server Monitoring for Temperature,
(Transmitter)
Model H4531R with ext. Pt1000 Sensor input
Sensor not include please select a pt1000 Sensor
Order No. W23-304-115
This kind of transmitter are alos known as: industrial Ethernet, remote server environment monitoring, computer room monitor, data center thermometer, temperature
humidity IP
sensor, computer room temperature alert.
Selection of our different Transmitters
for Temperature, Humidity, Barometric Pressure with Binary
Inputs an Relays Outputs
Server Monitoring for Temperature, Humidity,
Barometric Pressure (Transmitter)
Model H7531 with ext. Sensor
Order No. W23-304-130 (1 meter)
W23-304-132 (2 meter)
W23-304-134 (4 meter)
Sensor cable length of 1, 2 or 4 meter available
Communication:
„hƒn Modbus TCP
„hƒn Telnet
„hƒn www pages
„hƒn SNMP
„hƒn SOAP
Relay Outputs:
„hƒn GSM voice dialer
„hƒn Fan
„hƒn Siren
„hƒn Beacon
Alarms:
„hƒn e-mail
„hƒn e-mail to SMS
„hƒn www pages
„hƒn SNMP
„hƒn syslog
Binay Inputs:
„hƒn Power - UPS
„hƒn Flood
„hƒn Smoke
„hƒn Door
„hƒn And so on…..
Inputs:
„hƒn Temperature
„hƒn Humidity
„hƒn Pressure
Server Monitoring for Temperature, Humidity,
(Transmitter)
Model H7531R with ext. Sensor
Order No. W23-304-120 (1 meter)
W23-304-122 (2 meter)
W23-304-124 (4 meter)
Sensor cable length of 1, 2 or 4 meter available
Rack Server monitoring
- Front view -
Server Rack monitoring
- Rear view -
