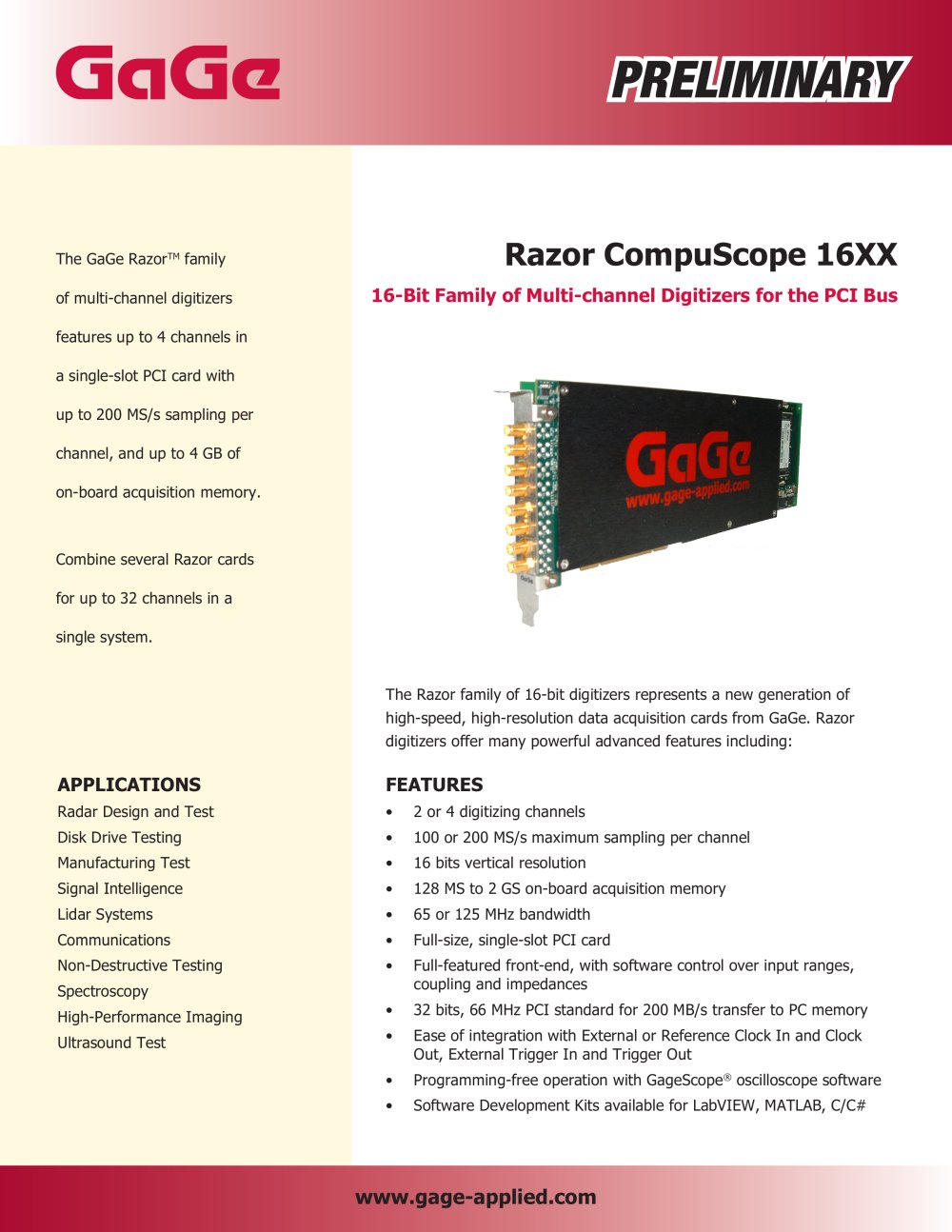

Razor CompuScope 16XX 16-Bit Family of Multi-channel Digitizers for the PCI Bus - WUNTRONIC - #1

Text version of the page

Features 2 or 4 digitizing channels 100 or 200 MS/s maximum sampling per channel 16 bits vertical resolution 128 MS to 2 GS on-board acquisition memory 65 or 125 MHz bandwidth Full-size, single-slot PCI card Full-featured front-end, with software control over input ranges, coupling and impedances 32 bits, 66 MHz PCI standard for 200 MB/s transfer to PC memory Ease of integration with External or Reference Clock In and Clock Out, External Trigger In and Trigger Out Programming-free operation with GageScope® oscilloscope software Software Development Kits available for LabVIEW, MATLAB, C/C# • • • • • • • • • • • The Razor family of 16-bit digitizers represents a new generation of high-speed, high-resolution data acquisition cards from GaGe. Razor digitizers offer many powerful advanced features including: APPLICATIONS Radar Design and Test Disk Drive Testing Manufacturing Test Signal Intelligence Lidar Systems Communications Non-Destructive Testing Spectroscopy High-Performance Imaging Ultrasound Test www.gage-applied.com Razor CompuScope 16XX 16-Bit Family of Multi-channel Digitizers for the PCI Bus The GaGe RazorTM family of multi-channel digitizers features up to 4 channels in a single-slot PCI card with up to 200 MS/s sampling per channel, and up to 4 GB of on-board acquisition memory. Combine several Razor cards for up to 32 channels in a single system.PRELIMINARY
