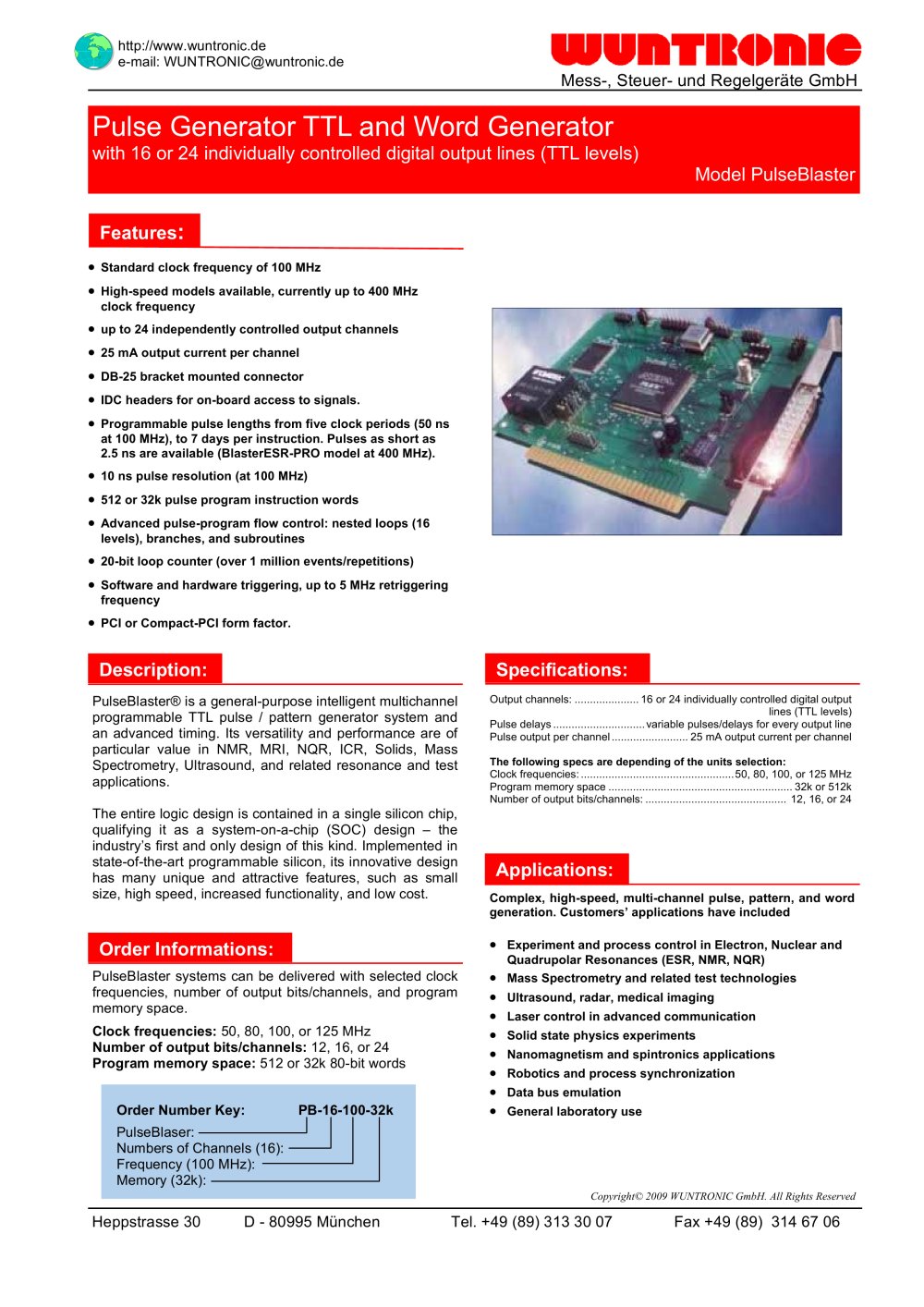

Pulse Generator - WUNTRONIC - (Version JPG) - PDF Catalogue | Technical Documentation

See other catalogues for WUNTRONIC

Remote monitoring system, PCI Express interface card, PCI, Acquisition card, Converter

Text version of the page

http://www.wuntronic.de

e-mail: WUNTRONIC@wuntronic.de

Mess-, Steuer- und Regelgeräte GmbH

ator

with 16 or 24 individually controlled digital output lines (TTL levels)

Model PulseBlaster

Features:

• Standard clock frequency of 100 MHz

• High-speed models available, currently up to 400 MHz clock frequency

• up to 24 independently controlled output channels

• 25 mA output current per channel

• DB-25 bracket mounted connector

• IDC headers for on-board access to signals.

• Programmable pulse lengths from five clock periods (50 ns at 100 MHz), to 7 days per instruction. Pulses as short as 2.5 ns are available (BlasterESR-PRO model at 400 MHz).

• 10 ns pulse resolution (at 100 MHz)

• 512 or 32k pulse program instruction words

• Advanced pulse-program flow control: nested loops (16 levels), branches, and subroutines

• 20-bit loop counter (over 1 million events/repetitions)

• Software and hardware triggering, up to 5 MHz retriggering frequency

• PCI or Compact-PCI form factor.

cifications:

Description:

Output channels:.....................16 or 24 individually controlled digital output

lines (TTL levels)

Pulse delays..............................variable pulses/delays for every output line

Pulse output per channel.........................25 mA output current per channel

The following specs are depending of the units selection:

Clock frequencies:..................................................50, 80, 100, or 125 MHz

Program memory space............................................................32k or 512k

Number of output bits/channels:.............................................. 12, 16, or 24

PulseBlaster® is a general-purpose intelligent multichannel programmable TTL pulse / pattern generator system and an advanced timing. Its versatility and performance are of particular value in NMR, MRI, NQR, ICR, Solids, Mass Spectrometry, Ultrasound, and related resonance and test applications.

The entire logic design is contained in a single silicon chip, qualifying it as a system-on-a-chip (SOC) design - the industry's first and only design of this kind. Implemented in state-of-the-art programmable silicon, its innovative design has many unique and attractive features, such as small size, high speed, increased functionality, and low cost.

Applications:

Complex, high-speed, multi-channel pulse, pattern, and word generation. Customers' applications have included

Experiment and process control in Electron, Nuclear and

Quadrupolar Resonances (ESR, NMR, NQR)

Mass Spectrometry and related test technologies

Ultrasound, radar, medical imaging

Laser control in advanced communication

Solid state physics experiments

Nanomagnetism and spintronics applications

Robotics and process synchronization

Data bus emulation

General laboratory use

Order Informations:

•

PulseBlaster systems can be delivered with selected clock frequencies, number of output bits/channels, and program memory space.

Clock frequencies: 50, 80, 100, or 125 MHz Number of output bits/channels: 12, 16, or 24 Program memory space: 512 or 32k 80-bit words

Order Number Key:

PulseBlaser:-

PB-16-100-32k

. . .

Numbers of Channels (16):

Frequency (100 MHz): -

Memory (32k):-

Heppstrasse 30

D- 80995 München

Tel. +49 (89) 313 30 07

Fax +49 (89) 314 67 06
