The Wolf Flameproof Leadlampis a lightweight portable Floodlight for use in potentially explosive atmospheres. It complies with the ATEXDirective (94/9/EC) and has been certified to the European EN50014 series of standards bythe German test house DMT, foruse in zones 1 and 2, group II (surface industry) hazardous area applications. It is approved for safe use in all potentiallyexplosive gas, vapour and mist atmospheres to gas group IIC,where the T3/T4 temperatureclass permits.Three different versions of theLeadlamp are available, with the option of powering from a 12, 24or 42 Volt supply. Bulb ratingsvary from 55 to 70 Watts, all versions offering unparalleledlight output over an extremelywide 100°solid cone of light, ideal for confined space operations.The Flameproof Leadlamp has a die cast aluminium alloyconstruction making the productlightweight and portable, ideal for carrying during extended shifts in offshore and onshore cleaningoperations. The Leadlamp is constructed as a flameproofenclosure, containing thehalogen bulb, switch and connecting wires. A flameproof threaded joint allows internalaccess, making bulbreplacement and other minor maintenance a quick and simple operation. A large hexagonalrubber moulded guard is fitted to the outside of the head of the lamp, ensuring the glass lens and the flameproof threaded joint areboth protected from drop orimpact damage. The handle is moulded in tough high impactplastic and fitted with a cableclamp, and provides protection for the increased safety clamped cable terminals.Flameproof leadlamps are usedextensively in many explosiveatmosphere applications,particularly in cleaning, grit blasting and painting operationsin tanks, silos and pipelines.Cables and plugs of theappropriate rating and duty must be used. In explosiveatmospheres ‘Ex’ component certified plugs, sockets andsuitable fusing are required.A leather carrying strap issupplied with each Lamp unit.

Flameproof Leadlamp - 31894 Wolf Flameproof Leadlamp

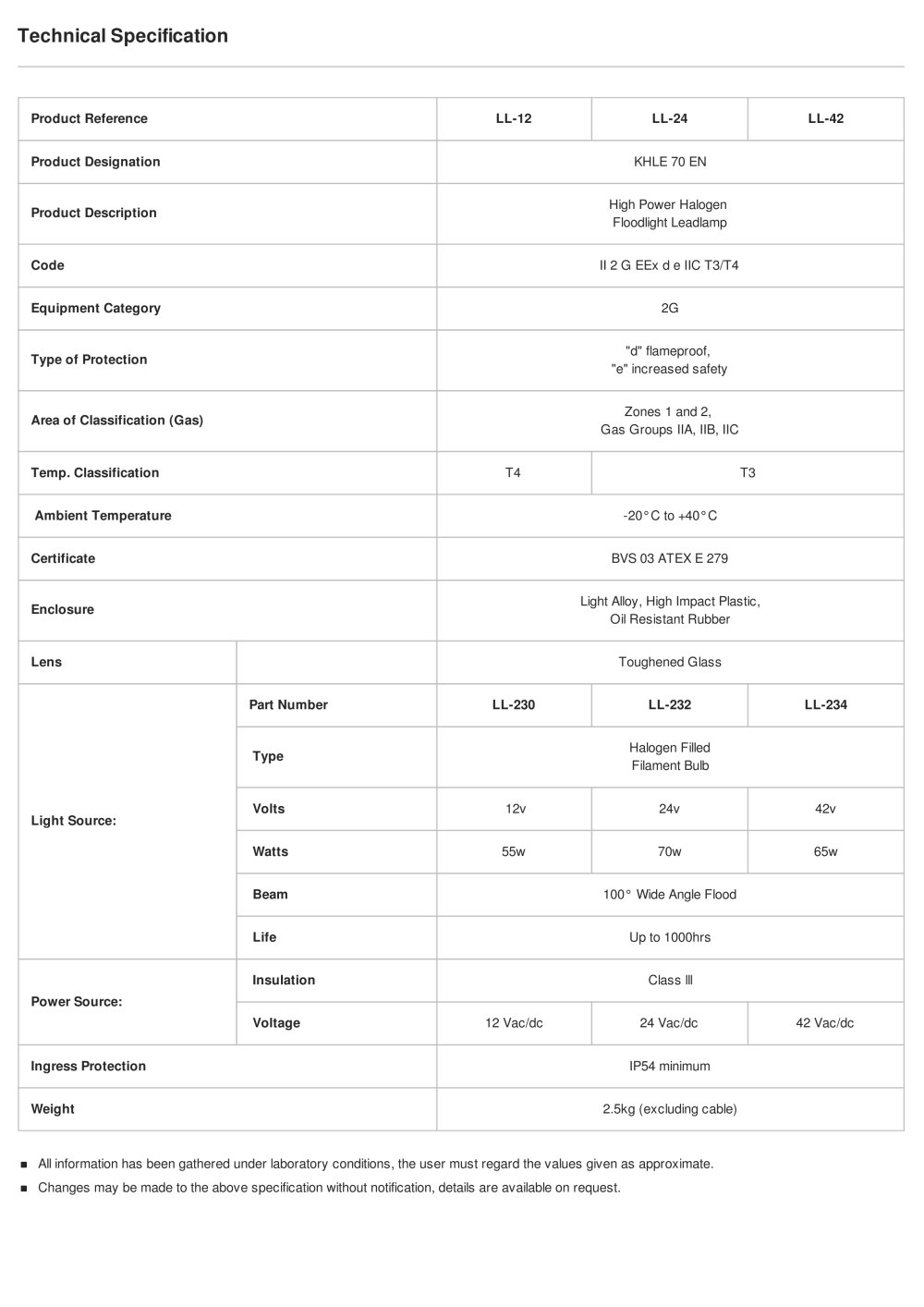

Technical Specification

Product referenceLL-12LL-24LL-42 Product designation KHLE 70 EN Product description High power halogen floodlight leadlamp Code II 2 G EEx d e IIC T3/T4 Equipment category 2G Apparatus standard EN50014, EN50018, EN50019 Type of protection ‘d’ flameproof, ‘e’ increased safety Area of classification (gases) Zones 1 and 2, gas groups IIA, IIB and IIC Temp. classification (gases) T4T3T3 Ambient temperature -20°C to +40°C Certification DMT03ATEXE279 Enclosure Light alloy, high impact plastic, oil resistant rubber Lens Toughened glass Light source: Pt. no. LL-230LL-232LL-234 TypeHalogen filament lamp Volts12V24V42V Watts55W70W65W Beam100°wide angle flood LifeUp to 1000 hrs Power source: InsulationClass III Voltage12 Vac/dc24 Vac/dc42 Vac/dc Ingress Protection IP54 minimum Weight 2.5 Kg (excluding cable)
Note: All information has been gathered under laboratory conditions, the user must regard the values given as approximate. The Company reserves the right to alter product specifications without prior notice.

WOLF SAFETY LAMP COMPANY

Saxon Road Works, Sheffield S8 0YA, England
Tel: +44 114 255 1051 Fax: +44 114 255 7988E-mail: info@wolf-safety.co.uk Website: www.wolf-safety.co.uk Wolf Safety Lamp Company SL004 issue 01MMD/WK/10.04/3K
