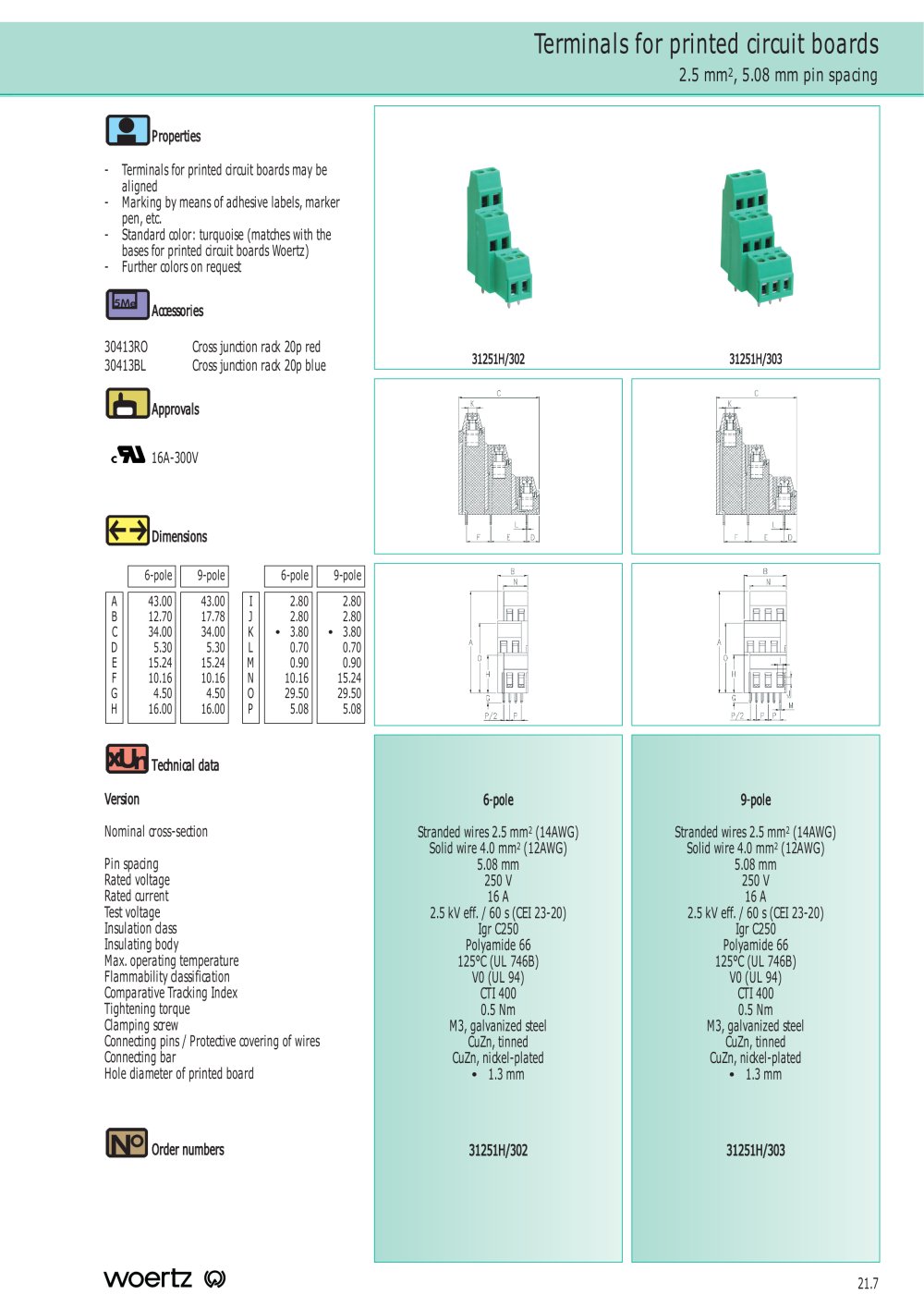

Terminals for printed circuit boards

2.5 mm², 5.08 mm pin spacing

Properties

Terminals for printed circuit boards may be aligned

Marking by means of adheSve labels marker pen, etc

Standard color: turquoise (matches with the bases for printed circuit boards Woertz) Further colors on request

bad

Accessories

30413FO 30413BL

Cross junction rack 20p red Cross junction rack 20p blue

31251hK302

31251H/303

Approvals

c5tt 16A-300V

□maisons


	6-pole	9-pole		6-pole	9-pole

A	43.00	43.00	I	2.80	2.80
B	12.70	17.78	J	2.80	2.80
C	34.00	34.00	K	• 3.80	• 3.80
□	5.30	5.30	L	0.70	0.70
E	15.24	15.24	M	0.90	0.90
F	10.16	10.16	N	10.16	15.24
G	4.50	4.50	O	29.50	29.50
H	16.00	16.00	P	5.08	5.08

Technical data

Versoi

6-pole

Stranded wires 2.5 mmf^!(14AWQ Solid wre 4.0 mm²(12AWG) 5.08 mm 250 V

16 A

2.5 kV eff. / 60 s (CE 23-20) Igr C250

Polyamide 66

125°C (UL 746B) V0 (UL 94)

CTI 400

0.5 Nm M3, galvanized steel

CuZn, tinned CuZn, nickel-plated

• 1.3 mm

9-pole

Stranded Wres 2.5 mmf^!(14AWQ Solid Wre 4.0 mm²(12AWG)

5.08 mm 250 V 16 A

2.5 kV eff. / 60 s (CE 23-20)

Igr C250 Polyamide 66 125°C (UL 746B) V0 (UL 94) CTI 400 0.5 Nm M3, galvanized steel

CuZn, tinned CuZn, nickel-plated • 1.3 mm

Nominal cross-section

Pin spacing

Rated voltage

Rated current

Test voltage

Insulation class

Insulating body

Max operating temperature

Flammability cassfication

Comparative Tracking Index

Tightening torque

Clamping screw

Connecting pins / Protective covering of wres Connecting bar

Hole diameter of printed board

I Order numbers

31251H/302

31251H/303

woertz <q»

21.7
