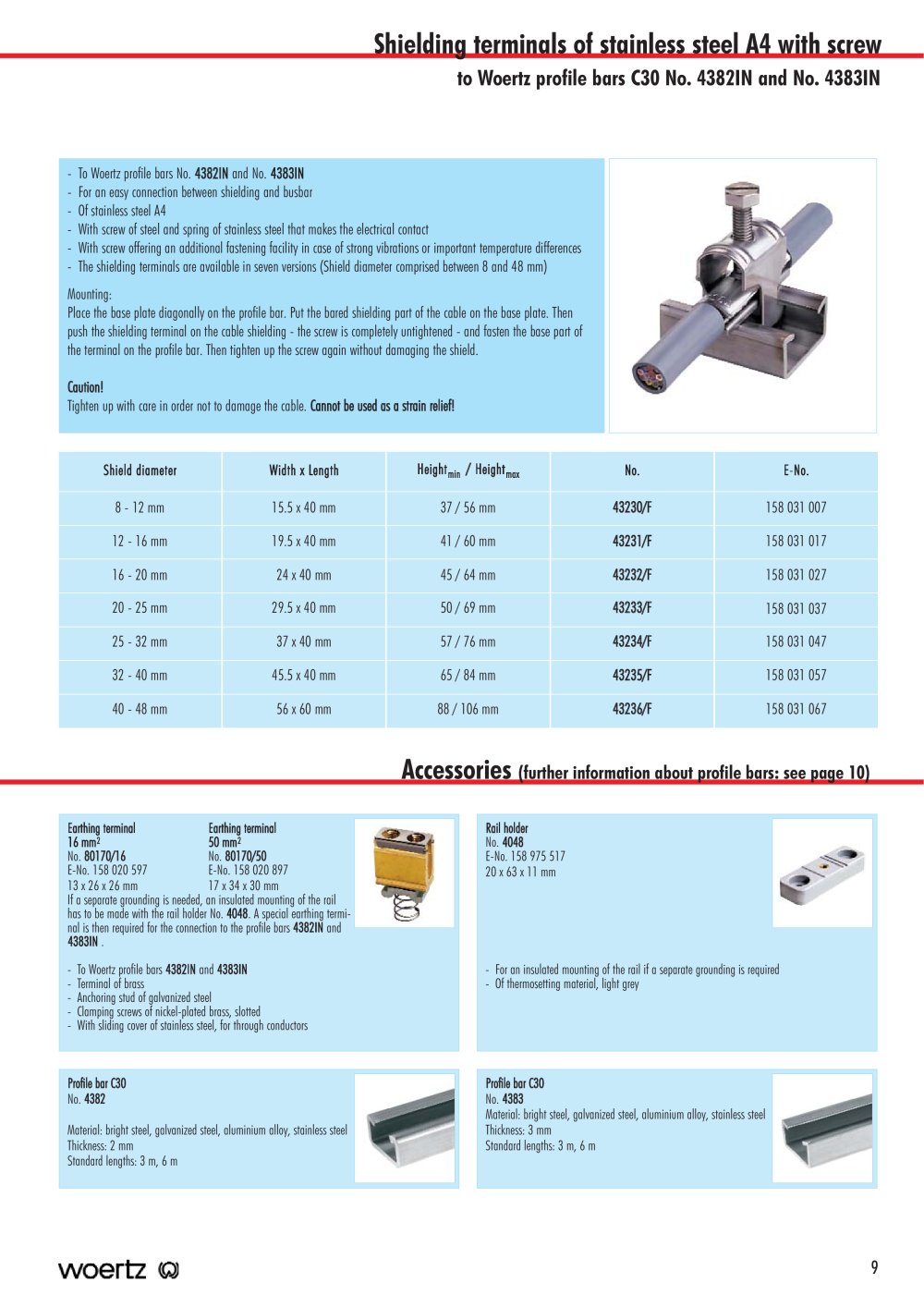

Shielding terminals of stainless steel A4 with screw Accessories

to Woertz profile bars C30 No. 4382IN and No. 4383IN

- To Woertz profile bars No. 4382IN and No. 4383IN - For an easy connection between shielding and busbar- Of stainless steel A4 - With screw of steel and spring of stainless steel that makes the electrical contact - With screw offering an additional fastening facility in case of strong vibrations or important temperature differences - The shielding terminals are available in seven versions (Shield diameter comprised between 8 and 48 mm)Mounting:Place the base plate diagonally on the profile bar. Put the bared shielding part of the cable on the base plate. Then push the shielding terminal on the cable shielding - the screw is completely untightened - and fasten the base part of the terminal on the profile bar. Then tighten up the screw again without damaging the shield. Caution! Tighten up with care in order not to damage the cable. Cannot b be u used a as a a s strain r relief!
Shield d diameter Width x x L Length Height min /
Height max No. E -N No. 8 - 12 mm 15.5 x 40 mm 37 / 56 mm 43230/F 158 031 007 12 - 16 mm 19.5 x 40 mm 41 / 60 mm 43231/F 158 031 017 16 - 20 mm 24 x 40 mm 45 / 64 mm 43232/F 158 031 027 20 - 25 mm 29.5 x 40 mm 50 / 69 mm 43233/F 158 031 037 25 - 32 mm 37 x 40 mm 57 / 76 mm 43234/F 158 031 047 32 - 40 mm 45.5 x 40 mm 65 / 84 mm 43235/F 158 031 057 40 - 48 mm 56 x 60 mm 88 / 106 mm 43236/F 158 031 067

(further information about profile bars: see page 10)

Earthing t terminalEarthing t terminal16 Rail h holder m mm 2 50 m mm 2 No. 4048 No. 80170/16 No. 80170/50 E-No. 158 975 51720 x 63 x 11 mm- For an insulated mounting of the rail if a separate grounding is required- Of thermosetting material, light grey E-No. 158 020 597E-No. 158 020 89713 x 26 x 26 mm17 x 34 x 30 mmIf a separate grounding is needed, an insulated mounting of the rail has to be made with the rail holder No. 4048 . A special earthing termi-nal is then required for the connection to the profile bars 4382IN and 4383IN .- To Woertz profile bars 4382IN and 4383IN - Terminal of brass- Anchoring stud of galvanized steel - Clamping screws of nickel-plated brass, slotted - With sliding cover of stainless steel, for through conductors Profile b bar C C30 Profile b bar C C30 No. 4382 No. 4383 Material: bright steel, galvanized steel, aluminium alloy, stainless steelThickness: 3 mmStandard lengths: 3 m, 6 m Material: bright steel, galvanized steel, aluminium alloy, stainless steelThickness: 2 mm Standard lengths: 3 m, 6 m
