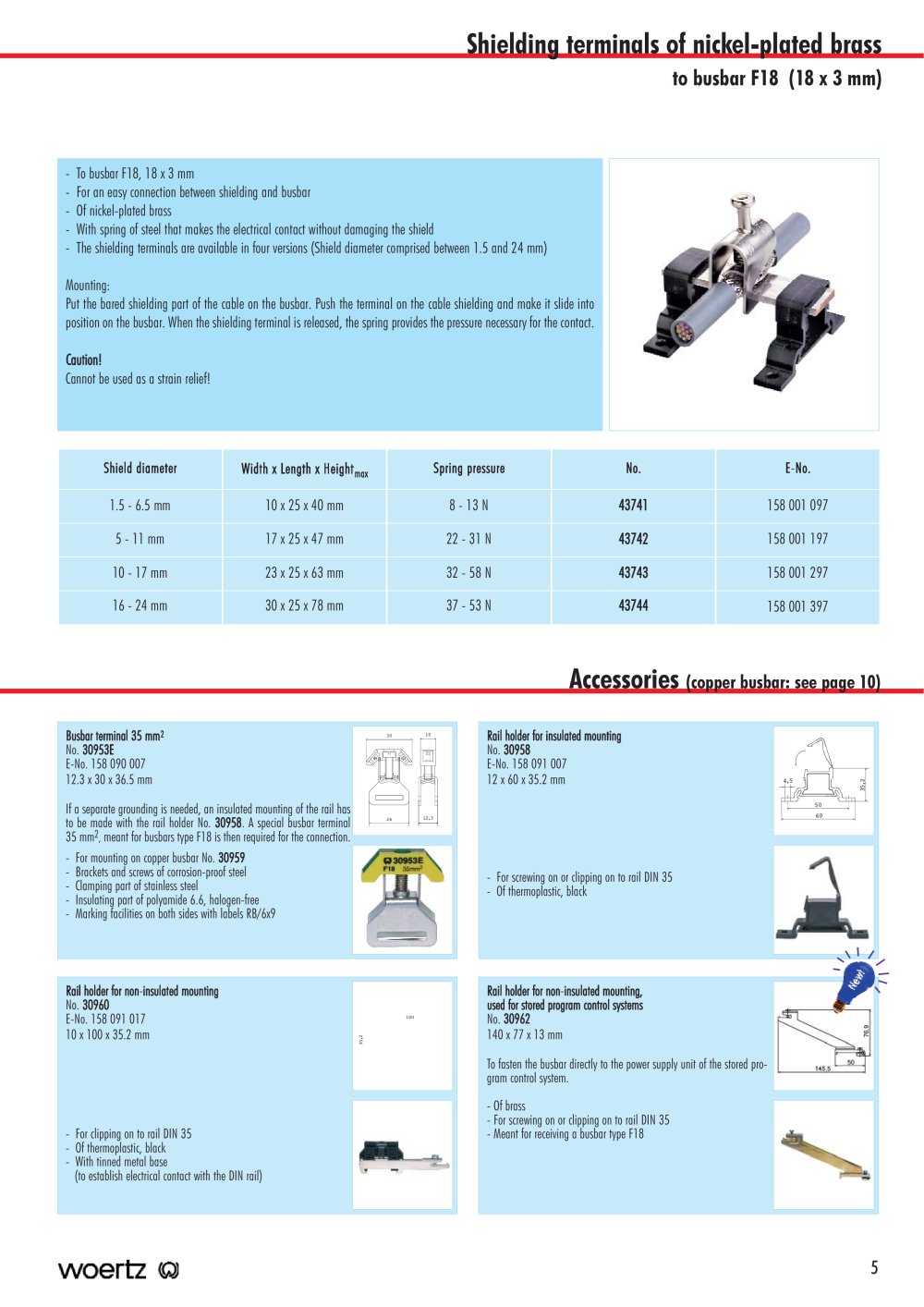

Shielding terminals of nickel-plated brass

to busbar F18 (18 x 3 mm)

- To busbar F18, 18 x 3 mm- For an easy connection between shielding and busbar - Of nickel-plated brass - With spring of steel that makes the electrical contact without damaging the shield - The shielding terminals are available in four versions (Shield diameter comprised between 1.5 and 24 mm)Mounting:Put the bared shielding part of the cable on the busbar. Push the terminal on the cable shielding and make it slide into position on the busbar. When the shielding terminal is released, the spring provides the pressure necessary for the contact. Caution! Cannot be used as a strain relief!

Shield d diameter Width x x L Length x x H Height

max

Spring p pressure No. E -N No.

1.5 - 6.5 mm 10 x 25 x 40 mm 8 - 13 N 43741 158 001 097 5 - 11 mm 17 x 25 x 47 mm 22 - 31 N 43742 158 001 197 10 - 17 mm 23 x 25 x 63 mm 32 - 58 N 43743 158 001 297 16 - 24 mm 30 x 25 x 78 mm 37 - 53 N 43744 158 001 397

Accessories

(copper busbar: see page 10)

Busbar t terminal 3 35 m mm
2 3010 26 Rail h holder f for i insulated m mounting No. 30953E No. 30958 E-No. 158 090 00712.3 x 30 x 36.5 mmIf a separate grounding is needed, an insulated mounting of the rail hasto be made with the rail holder No. E-No. 158 091 00712 x 60 x 35.2 mm- For screwing on or clipping on to rail DIN 35- Of thermoplastic, black
4,5 35,2 50 30958
12,3 60 2, . A special busbar terminal35 mm meant for busbars type F18 is then required for the connection.- For mounting on copper busbar No. 30959 - Brackets and screws of corrosion-proof steel- Clamping part of stainless steel - Insulating part of polyamide 6.6, halogen-free - Marking facilities on both sides with labels RB/6x9 Rail h holder f for n non -i insulated m mounting Rail h holder f for n non -i insulated m mounting, No. 30960 used f for s stored p program c control s systems E-No. 158 091 01710 x 100 x 35.2 mm- For clipping on to rail DIN 35- Of thermoplastic, black - With tinned metal base(to establish electrical contact with the DIN rail)
100 No. 30962
35,2 140 x 77 x 13 mmTo fasten the busbar directly to the power supply unit of the stored pro-gram control system.- Of brass- For screwing on or clipping on to rail DIN 35 - Meant for receiving a busbar type F18
