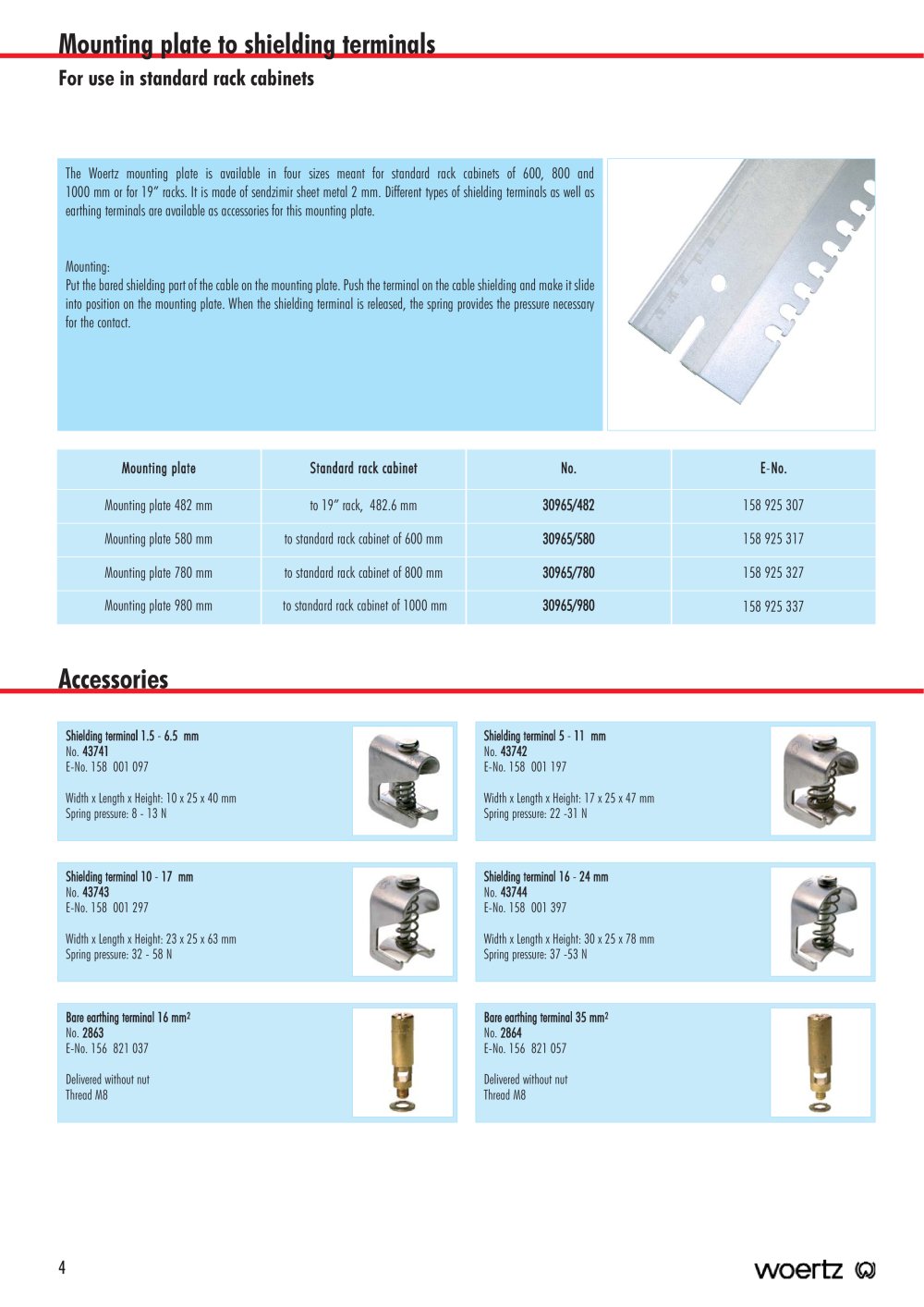

Mounting plate to shielding terminals Accessories

For use in standard rack cabinets

The Woertz mounting plate is available in four sizes meant for standard rack cabinets of 600, 800 and1000 mm or for 19” racks. It is made of sendzimir sheet metal 2 mm. Different types of shielding terminals as well as earthing terminals are available as accessories for this mounting plate.Mounting:Put the bared shielding part of the cable on the mounting plate. Push the terminal on the cable shielding and make it slide into position on the mounting plate. When the shielding terminal is released, the spring provides the pressure necessary for the contact. Mounting p plate Standard r rack c cabinet No. E -N No. Mounting plate 482 mm to 19” rack, 482.6 mm 30965/482 158 925 307 Mounting plate 580 mm to standard rack cabinet of 600 mm 30965/580 158 925 317 Mounting plate 780 mm to standard rack cabinet of 800 mm 30965/780 158 925 327 Mounting plate 980 mm to standard rack cabinet of 1000 mm 30965/980 158 925 337

Shielding t terminal 1 1.5 - 6 6.5 m mm Shielding t terminal 5 5 - 1 11 m mm No. 43741 No. 43742 E-No. 158 001 097Width x Length x Height: 10 x 25 x 40 mmSpring pressure: 8 - 13 N E-No. 158 001 197Width x Length x Height: 17 x 25 x 47 mmSpring pressure: 22 -31 N Shielding t terminal 1 10 - 1 17 m mm Shielding t terminal 1 16 - 2 24 m mm No. 43743 No. 43744 E-No. 158 001 297Width x Length x Height: 23 x 25 x 63 mmSpring pressure: 32 - 58 N E-No. 158 001 397Width x Length x Height: 30 x 25 x 78 mmSpring pressure: 37 -53 N Bare e earthing t terminal 1 16 m mm
2 Bare e earthing t terminal 3 35 m mm
2 No. 2863 No. 2864 E-No. 156 821 037Delivered without nutThread M8 E-No. 156 821 057Delivered without nutThread M8

4
