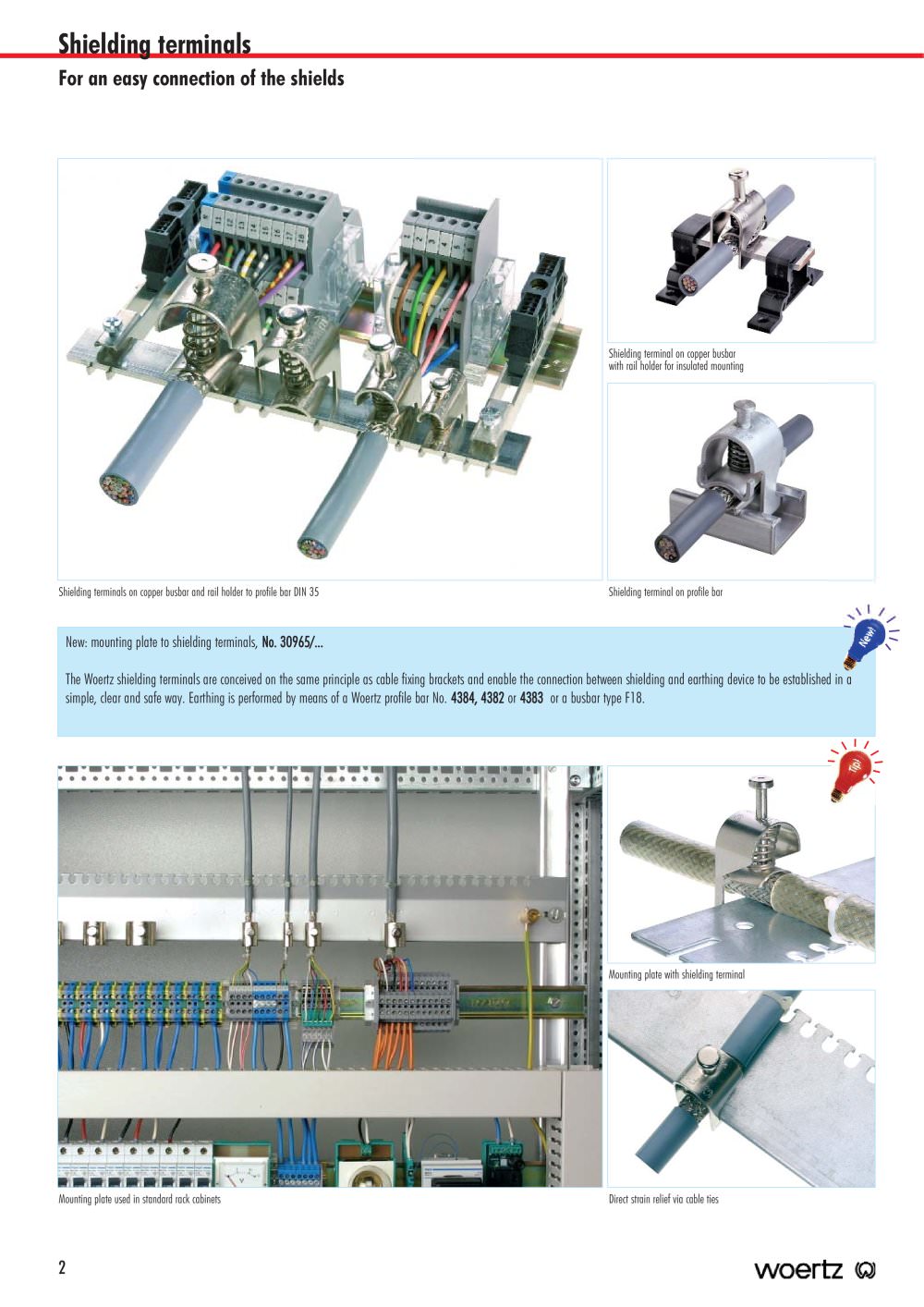

Shielding terminals

For an easy connection of the shields

Shielding terminals on copper busbar and rail holder to profile bar DIN 35Shielding terminal on profile bar Shielding terminal on copper busbar with rail holder for insulated mounting Mounting plate used in standard rack cabinetsDirect strain relief via cable ties Mounting plate with shielding terminal

New: mounting plate to shielding terminals, No. 3 30965/... The Woertz shielding terminals are conceived on the same principle as cable fixing brackets and enable the connection between shielding and earthing device to be established in asimple, clear and safe way. Earthing is performed by means of a Woertz profile bar

No. 4384, 4 4382 or 4383

or a busbar type F18

.

2
