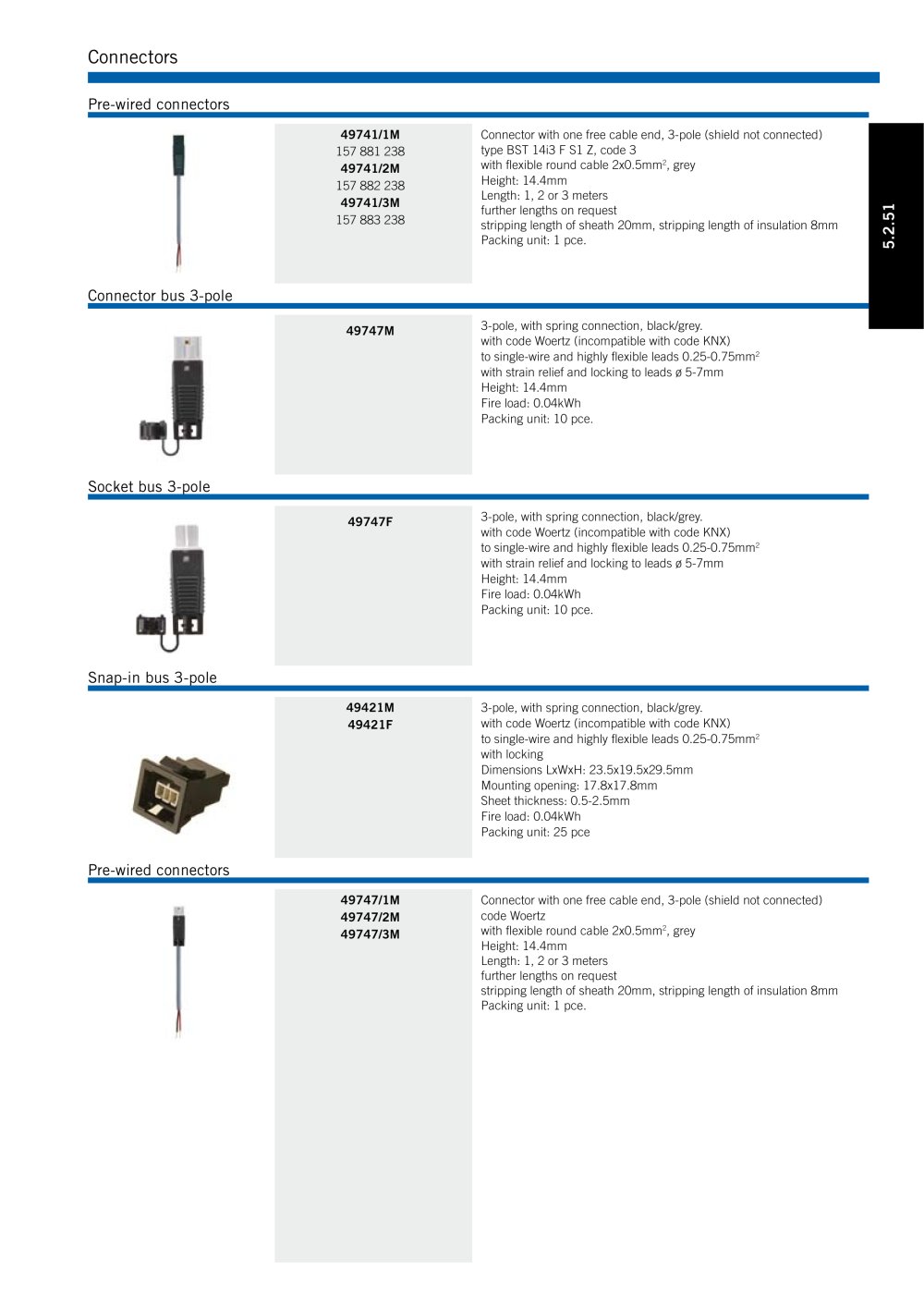

5.2.51 Connectors Pre-wired connectors 49741/1M 157 881 238 49741/2M 157 882 238 49741/3M 157 883 238 Connector with one free cable end, 3-pole (shield not connected) type BST 14i3 F S1 Z, code 3 with flexible round cable 2x0.5mm2, grey Height: 14.4mm Length: 1, 2 or 3 meters further lengths on request stripping length of sheath 20mm, stripping length of insulation 8mm Packing unit: 1 pce. Connector bus 3-pole 49747M 3-pole, with spring connection, black/grey. with code Woertz (incompatible with code KNX) to single-wire and highly flexible leads 0.25-0.75mm2 with strain relief and locking to leads ø 5-7mm Height: 14.4mm Fire load: 0.04kWh Packing unit: 10 pce. Socket bus 3-pole 49747F 3-pole, with spring connection, black/grey. with code Woertz (incompatible with code KNX) to single-wire and highly flexible leads 0.25-0.75mm2 with strain relief and locking to leads ø 5-7mm Height: 14.4mm Fire load: 0.04kWh Packing unit: 10 pce. Snap-in bus 3-pole 49421M 49421F 3-pole, with spring connection, black/grey. with code Woertz (incompatible with code KNX) to single-wire and highly flexible leads 0.25-0.75mm2 with locking Dimensions LxWxH: 23.5x19.5x29.5mm Mounting opening: 17.8x17.8mm Sheet thickness: 0.5-2.5mm Fire load: 0.04kWh Packing unit: 25 pce Pre-wired connectors 49747/1M 49747/2M 49747/3M Connector with one free cable end, 3-pole (shield not connected) code Woertz with flexible round cable 2x0.5mm2, grey Height: 14.4mm Length: 1, 2 or 3 meters further lengths on request stripping length of sheath 20mm, stripping length of insulation 8mm Packing unit: 1 pce.
