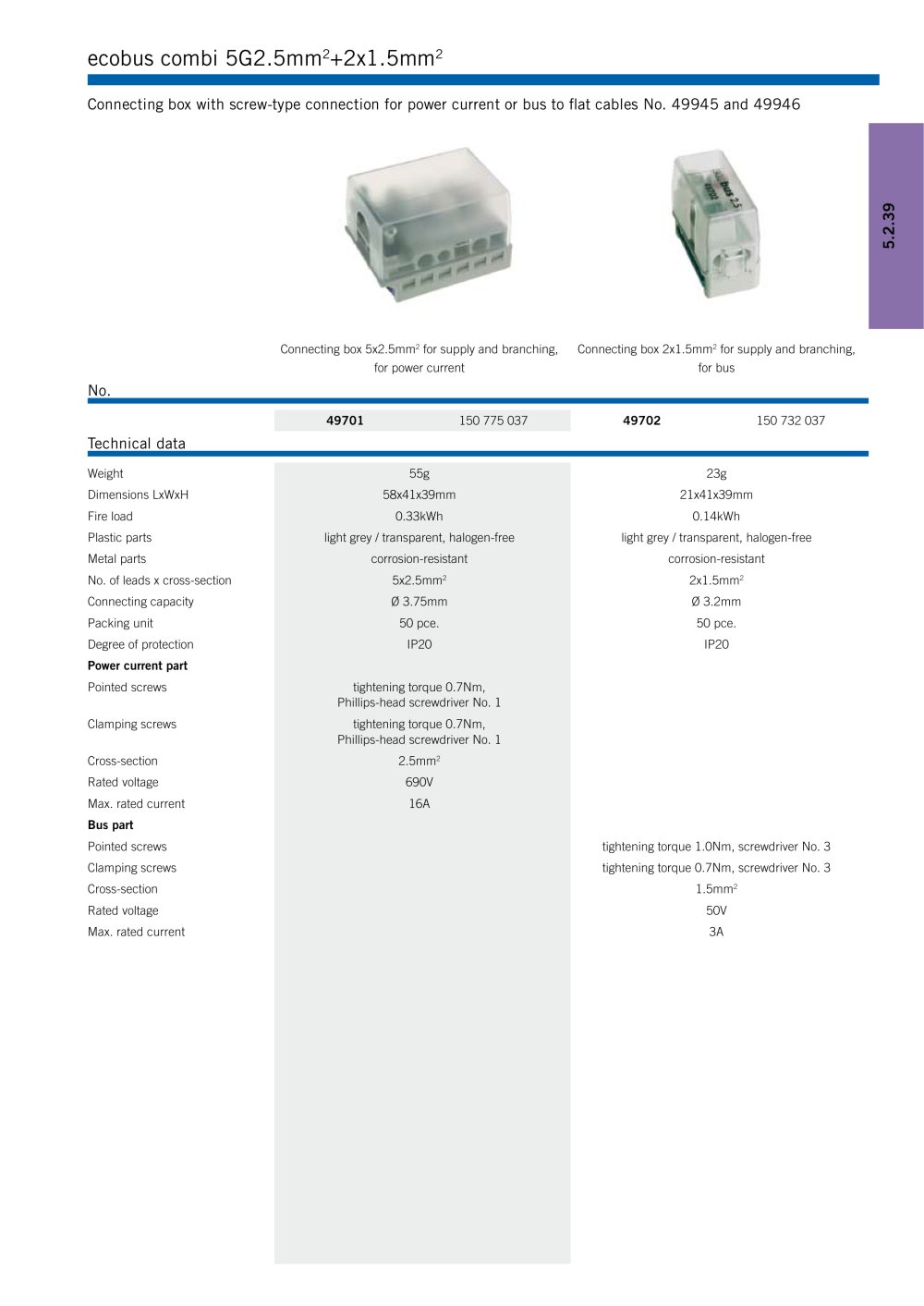

ecobus combi 5G2.5mm2+2x1.5mm2 Connecting box with screw-type connection for power current or bus to flat cables No. 49945 and 49946 en Connecting box 5x2.5mm2 for supply and branching, Connecting box 2x1.5mm2 for supply and branching, for power current for bus No. Technical data Weight Dimensions LxWxH Fire load Plastic parts Metal parts No. of leads x cross-section Connecting capacity Packing unit Degree of protection Power current part Pointed screws Clamping screws Cross-section Rated voltage Max. rated current Bus part Pointed screws Clamping screws Cross-section Rated voltage Max. rated current 49701 150 775 037 49702 150 732 037 55g 58x41x39 mm 0.33kWh light grey / transparent, halogen-free corrosion-resistant 5x2.5mm2 0 3.75mm 50 pce. IP20 tightening torque 0.7Nm, Phillips-head screwdriver No. 1 tightening torque 0.7Nm, Phillips-head screwdriver No. 1 2.5mm2 690V 16A 23g 21x41x39mm 0.14kWh light grey / transparent, halogen-free corrosion-resistant 2x1.5mm2 0 3.2mm 50 pce. IP20 tightening torque 1.0Nm, screwdriver No. 3 tightening torque 0.7Nm, screwdriver No. 3 1.5mm2 50V 3A
