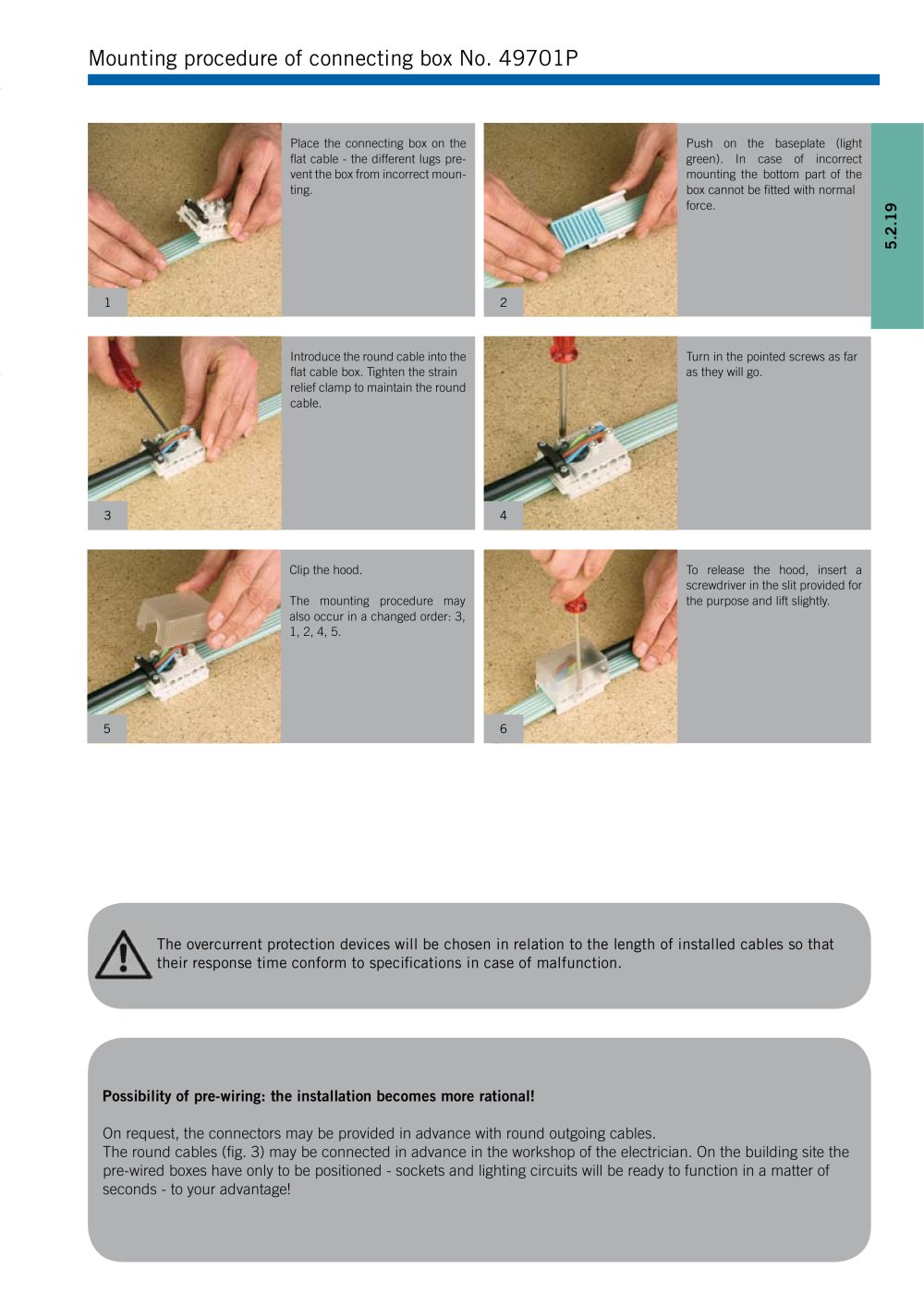

Mounting procédure of Connecting box No. 49701P Place the Connecting box on the flat cable - the different lugs pre-vent the box from incorrect mounting. Push on the baseplate (light green). In case of incorrect mounting the bottom part of the box cannot be fitted with normal force. en i—i 1 2 Introduce the round cable into the flat cable box. Tighten the strain relief clamp to maintain the round cable. 3 Clip the hood. The mounting procedure may also occur in a changed order: 3, 1, 2, 4, 5. To release the hood, insert a screwdriver in the slit provided for the purpose and lift slightly. 5 6 The overcurrent protection devices will be chosen in relation to the length of installée! cables so that / \ \ their response time conform to spécifications in case of malfunction. Possibility of pre-wiring: the installation becomes more rational! On request, the connectors may be provided in advance with round outgoing cables. The round cables (fig. 3) may be connected in advance in the workshop of the electrician. On the building site the pre-wired boxes have only to be positioned - sockets and lighting circuits will be ready to function in a matter of seconds - to your advantage!
