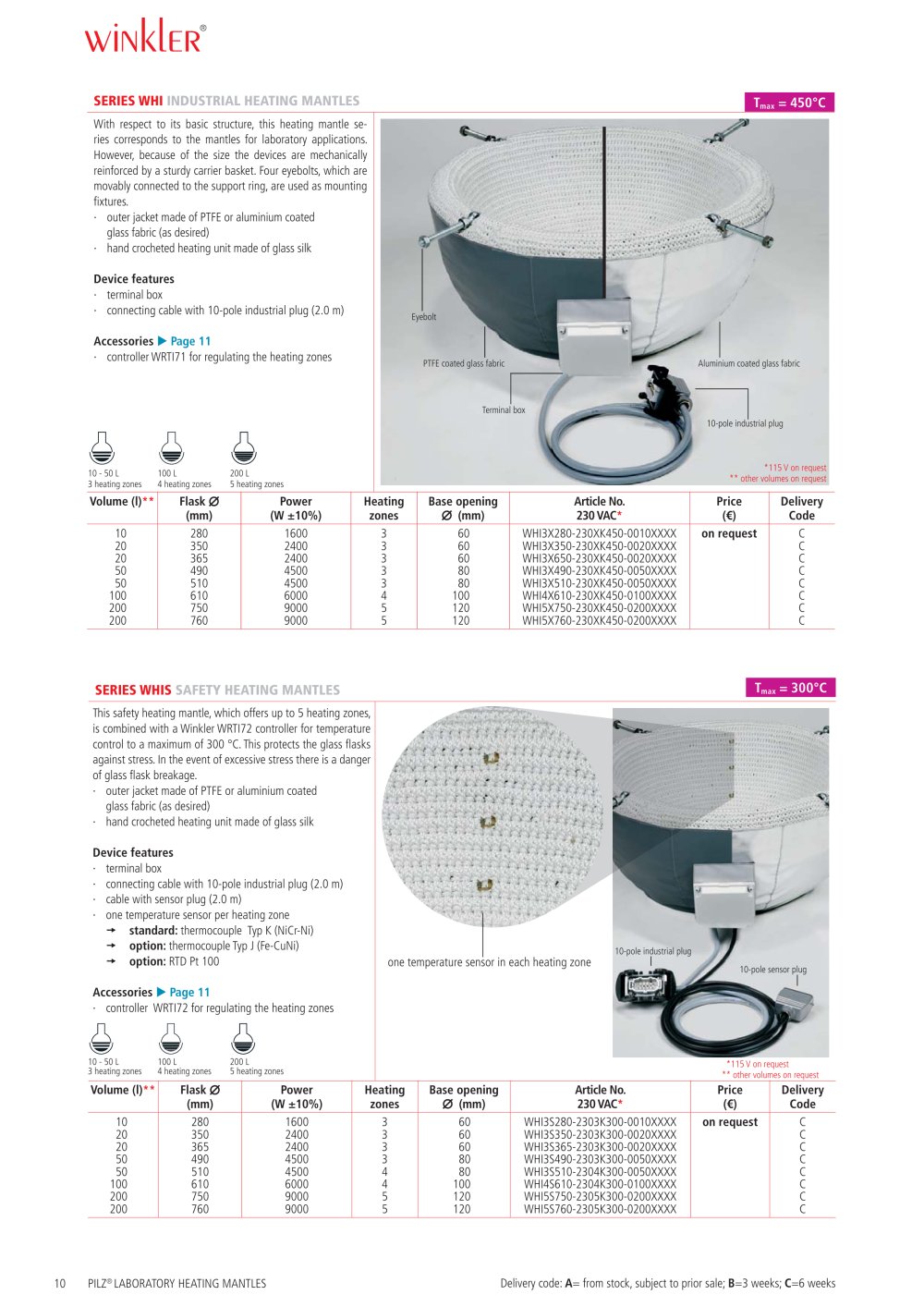

SERIES WHI INDUSTRIAL HEATING MANTLES

With respect to its basic structure, this heating mantle series corresponds to the mantles for laboratory applications. However, because of the size the devices are mechanically reinforced by a sturdy carrier basket. Four eyebolts, which are movably connected to the support ring, are used as mounting fixtures.

■ outer jacket made of PTFE or aluminium coated glass fabric (as desired)

■ hand crocheted heating unit made of glass silk

Device features

■ terminal box

• connecting cable with 10-pole industrial plug (2.0 m) Accessories ► Page 11

■ controller WRTI71 for regulating the heating zones

max = 450°C

Eyebolt

Aluminium coated glass fabric

10-pole industrial plug

*115 V on request ** other volumes on request

10 - 50 L 100 L 200 L

3 heating zones 4 heating zones 5 heating zones


Volume (l)**	FlaskJ} (mm)	Power (W ±10%)	Heating zones	Base opening 0 (mm)	Article No. 230 VAC*	Price	Delivery Code
10	280	1600	3	60	WHI3X280-230XK450-0010XXXX	on request	C
20	350	2400	3	60	WHI3X350-230XK450-0020XXXX	on request	C
20	365	2400	3	60	WHI3X650-230XK450-0020XXXX		C
50	490	4500	3	80	WHI3X490-230XK450-0050XXXX		C
50	510	4500	3	80	WHI3X510-230XK450-0050XXXX		C
100	610	6000	4	100	WHI4X610-230XK450-0100XXXX		C
200	750	9000	5	120	WHI5X750-230XK450-0200XXXX		C
200	760	9000	5	120	WHI5X760-230XK450-0200XXXX		C

max = 300°C

SERIES WHIS SAFETY HEATING MANTLES

This safety heating mantle, which offers up to 5 heating zones, is combined with a Winkler WRTI72 controller for temperature control to a maximum of 300 °C. This protects the glass flasks against stress. In the event of excessive stress there is a danger of glass flask breakage.

• outer jacket made of PTFE or aluminium coated glass fabric (as desired)

• hand crocheted heating unit made of glass silk

Device features

• terminal box

• connecting cable with 10-pole industrial plug (2.0 m)

• cable with sensor plug (2.0 m)

• one temperature sensor per heating zone

■+ standard: thermocouple Typ K (NiCr-Ni) ■+ option: thermocouple Typ J (Fe-CuNi) ■+ option: RTD Pt 100

Accessories ► Page 11

■ controller WRTI72 for regulating the heating zones

one temperature sensor in each heating zone

10 - 50 L 100 L 200 L

3 heating zones 4 heating zones 5 heating zones

*115 V on request ** other volumes on request


Volume (l)**	Flask 0	Power	Heating	Base opening	Article No.	Price	Delivery
	(mm)	(W ±10%)	zones	0 (mm)	230 VAC*		Code
10	280	1600	3	60	WHI3S280-2303K300-0010XXXX	on request	C
20	350	2400	3	60	WHI3S350-2303K300-0020XXXX	on request	C
20	365	2400	3	60	WHI3S365-2303K300-0020XXXX		C
50	490	4500	3	80	WHI3S490-2303K300-0050XXXX		C
50	510	4500	4	80	WHI3S510-2304K300-0050XXXX		C
100	610	6000	4	100	WHI4S610-2304K300-0100XXXX		C
200	750	9000	5	120	WHI5S750-2305K300-0200XXXX		C
200	760	9000	5	120	WHI5S760-2305K300-0200XXXX		C

Delivery code: A= from stock, subject to prior sale; B=3 weeks; C=6 weeks
