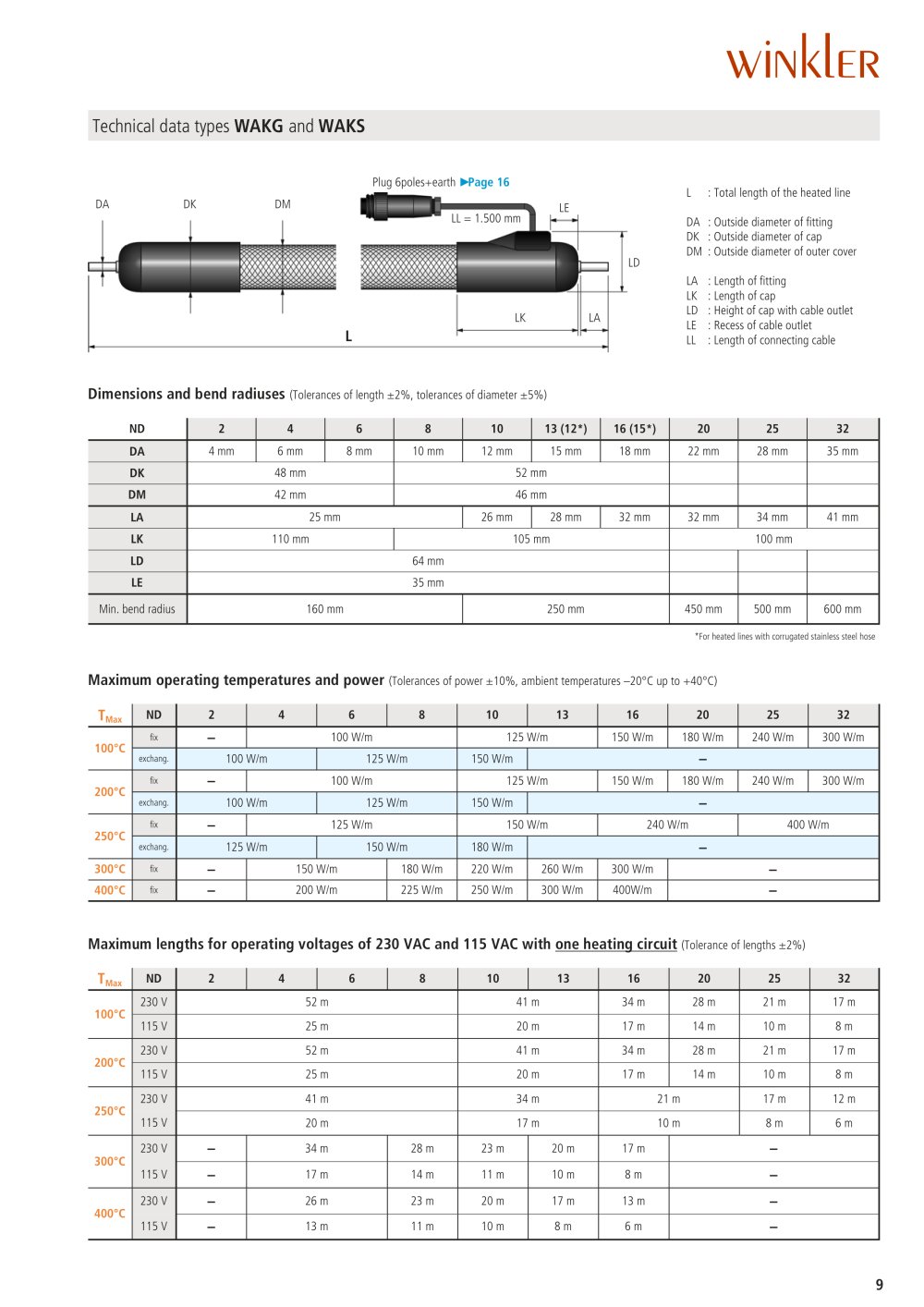

Technical data types WAKG and WAKS

Plug 6poles+earth Page 16 L : Total length of the heated line DA : Outside diameter of fitting DK : Outside diameter of cap DA DK DM LE LL = 1.500 mm DM : Outside diameter of outer cover LD LA : Length of fitting LK : Length of cap LD : Height of cap with cable outlet LE : Recess of cable outlet LL : Length of connecting cable LK LA

L Dimensions and bend radiuses

(Tolerances of length ±2%, tolerances of diameter ±5%) ND 2 4 6 8 10 13 (12*) 16 (15*) 20 25 32 DA 4 mm 6 mm 8 mm 10 mm 12 mm 15 mm 18 mm 22 mm 28 mm 35 mm DK 48 mm 52 mm DM 42 mm 46 mm LA 25 mm 26 mm 28 mm 32 mm 32 mm 34 mm 41 mm LK 110 mm 105 mm 100 mm LD 64 mm LE 35 mm Min. bend radius 160 mm 250 mm 450 mm 500 mm 600 mm
*For heated lines with corrugated stainless steel hose

Maximum operating temperatures and power

(Tolerances of power ±10%, ambient temperatures –20°C up to +40°C)

T

Max ND 2 4 6 8 10 13 16 20 25 32
fix 100 W/m 125 W/m 150 W/m 180 W/m 240 W/m 300 W/m 100°C

–

exchang. 100 W/m 125 W/m 150 W/m

–

fix 100 W/m 125 W/m 150 W/m 180 W/m 240 W/m 300 W/m 200 C

–

exchang. 100 W/m 125 W/m 150 W/m

–

fix 125 W/m 150 W/m 240 W/m 400 W/m 250 C

–

exchang. 125 W/m 150 W/m 180 W/m

–

300 C
fix

–

150 W/m 180 W/m 220 W/m 260 W/m 300 W/m

–

400 C
fix

–

200 W/m 225 W/m 250 W/m 300 W/m 400W/m

– Maximum lengths for operating voltages of 230 VAC and 115 VAC with one heating circuit

(Tolerance of lengths ±2%)

T

Max ND 2 4 6 8 10 13 16 20 25 32 230 V 52 m 41 m 34 m 28 m 21 m 17 m 100°C 115 V 25 m 20 m 17 m 14 m 10 m 8 m 230 V 52 m 41 m 34 m 28 m 21 m 17 m 200°C 115 V 25 m 20 m 17 m 14 m 10 m 8 m 230 V 41 m 34 m 21 m 17 m 12 m 250°C 115 V 20 m 17 m 10 m 8 m 6 m 230 V

–

34 m 28 m 23 m 20 m 17 m

–

300°C 115 V

–

17 m 14 m 11 m 10 m 8 m

–

230 V 26 m 23 m 20 m 17 m 13 m 400 C

– –

115 V

–

13 m 11 m 10 m 8 m 6 m

– 9
