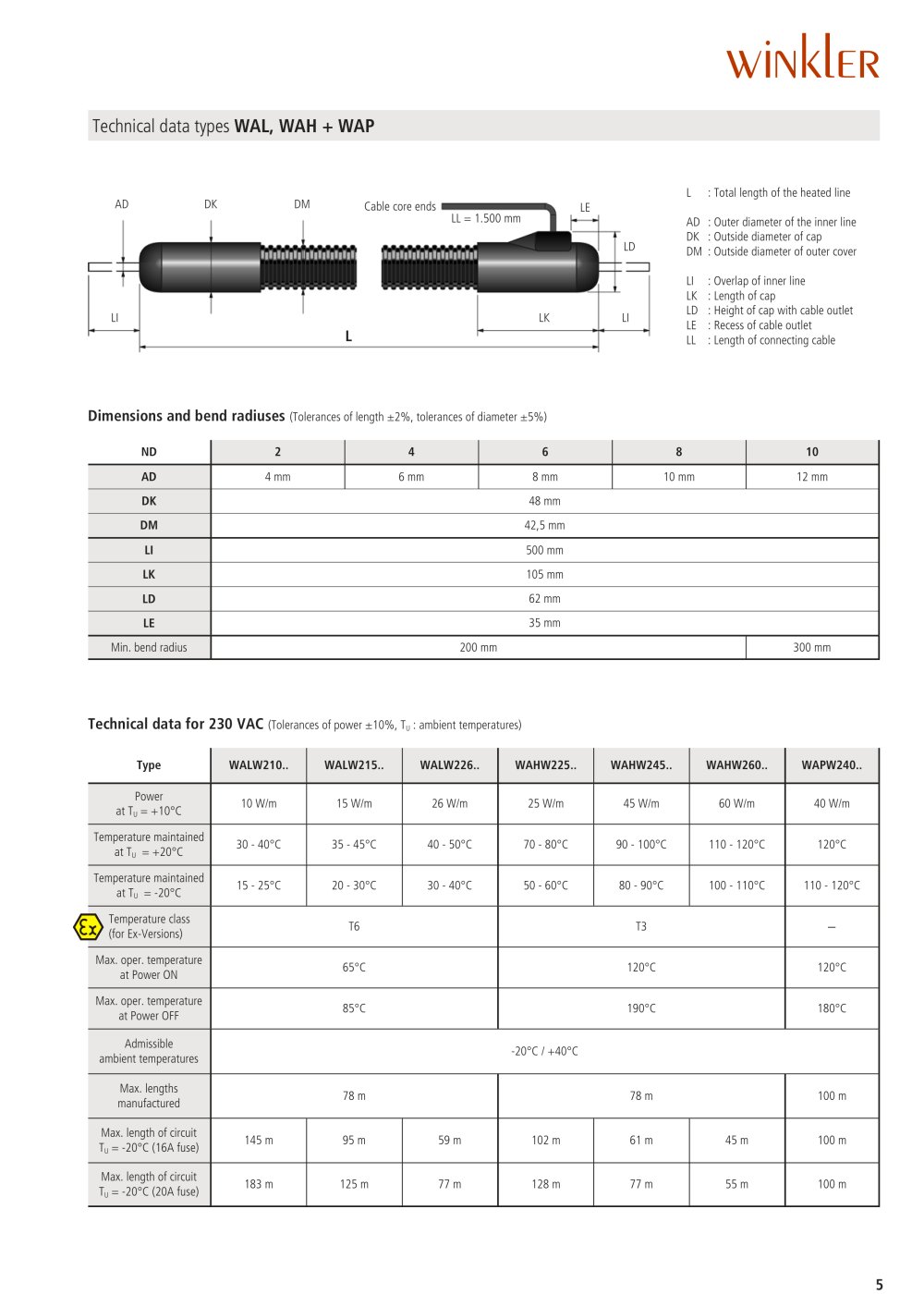

Technical data types WAL, WAH + WAP

L : Total length of the heated line AD : Outer diameter of the inner line DK : Outside diameter of cap AD DK DM Cable core ends LE LL = 1.500 mm LD DM : Outside diameter of outer cover LI : Overlap of inner line LK : Length of cap LD : Height of cap with cable outlet LE : Recess of cable outlet LL : Length of connecting cable LI LK LI

L Dimensions and bend radiuses

(Tolerances of length ±2%, tolerances of diameter ±5%) ND 2 4 6 8 10 AD 4 mm 6 mm 8 mm 10 mm 12 mm DK 48 mm DM 42,5 mm LI 500 mm LK 105 mm LD 62 mm LE 35 mm Min. bend radius 200 mm 300 mm

Technical data for 230 VAC

(Tolerances of power ±10%, T
U : ambient temperatures) Type WALW210.. WALW215.. WALW226.. WAHW225.. WAHW245.. WAHW260.. WAPW240.. Power at T
U = +10°C 10 W/m 15 W/m 26 W/m 25 W/m 45 W/m 60 W/m 40 W/m Temperature maintained at T
U = +20°C 30 - 40°C 35 - 45°C 40 - 50°C 70 - 80°C 90 - 100°C 110 - 120°C 120°C Temperature maintained at T
U = -20°C 15 - 25°C 20 - 30°C 30 - 40°C 50 - 60°C 80 - 90°C 100 - 110°C 110 - 120°C Temperature class (for Ex-Versions) T6 T3

–

Max. oper. temperature at Power ON 65°C 120°C 120°C Max. oper. temperature at Power OFF 85°C 190°C 180°C Admissible ambient temperatures -20°C / +40°C Max. lengths manufactured 78 m 78 m 100 m Max. length of circuit T
U = -20°C (16A fuse) 145 m 95 m 59 m 102 m 61 m 45 m 100 m Max. length of circuit T
U = -20°C (20A fuse) 183 m 125 m 77 m 128 m 77 m 55 m 100 m
