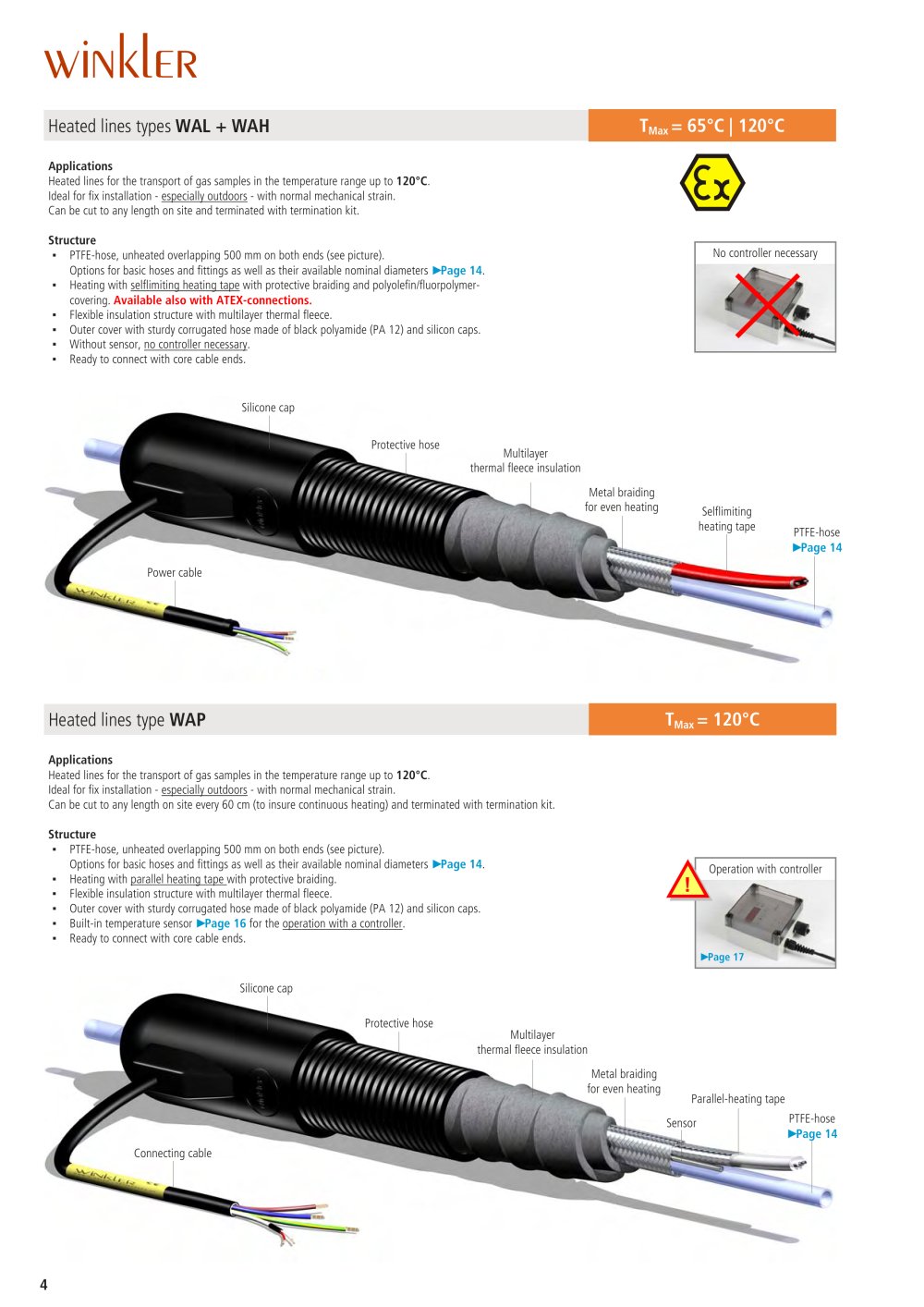

Heated lines types WAL + WAH T

Max

= 65°C | 120°C

Applications Heated lines for the transport of gas samples in the temperature range up to 120°C . Ideal for fix installation - especially outdoors - with normal mechanical strain. Can be cut to any length on site and terminated with termination kit. Structure PTFE-hose, unheated overlapping 500 mm on both ends (see picture). Options for basic hoses and fittings as well as their available nominal diameters No controller necessary Page 14 . Heating with selflimiting heating tape with protective braiding and polyolefin/fluorpolymer- covering. Available also with ATEX-connections. Flexible insulation structure with multilayer thermal fleece. Outer cover with sturdy corrugated hose made of black polyamide (PA 12) and silicon caps. Without sensor, no controller necessary . Ready to connect with core cable ends. Silicone cap Protective hose Multilayer thermal fleece insulation Metal braiding for even heating Selflimiting heating tape PTFE-hose Page 14 Power cable

Heated lines type WAP T

Max

= 120°C

Applications Heated lines for the transport of gas samples in the temperature range up to 120°C . Ideal for fix installation - especially outdoors - with normal mechanical strain. Can be cut to any length on site every 60 cm (to insure continuous heating) and terminated with termination kit. Structure PTFE-hose, unheated overlapping 500 mm on both ends (see picture). Options for basic hoses and fittings as well as their available nominal diameters Page 14 . Operation with controller Heating with parallel heating tape with protective braiding. Flexible insulation structure with multilayer thermal fleece.

Catalogue Heated Lines - 21326 !

Outer cover with sturdy corrugated hose made of black polyamide (PA 12) and silicon caps. Built-in temperature sensor Page 16 for the operation with a controller . Ready to connect with core cable ends.
Page 17 Silicone cap Protective hose Multilayer thermal fleece insulation Metal braiding for even heating Parallel-heating tape Sensor PTFE-hose Page 14 Connecting cable

4
