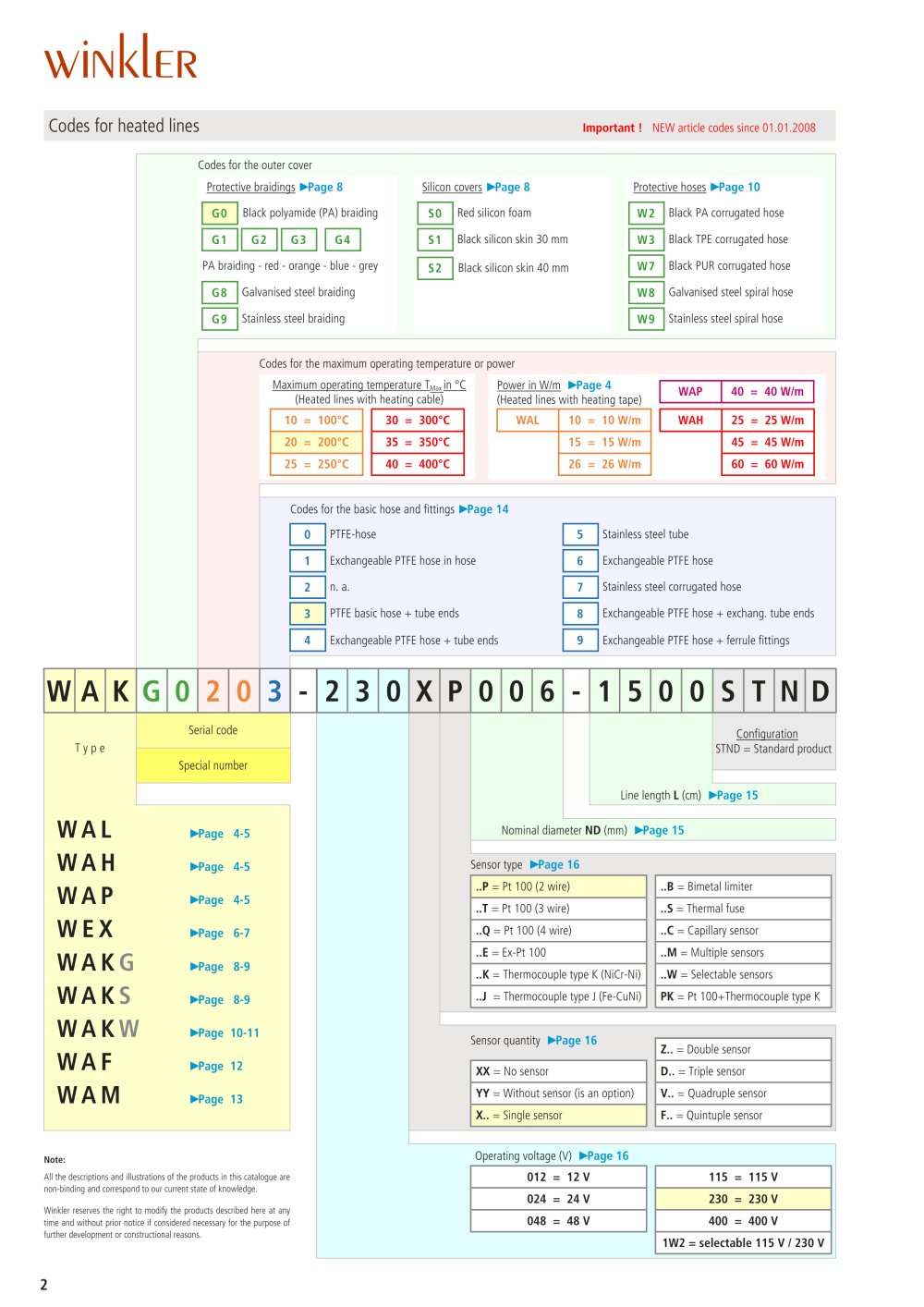

Codes for heated lines

Important ! NEW article codes since 01.01.2008 Codes for the outer cover Protective braidings Page 8 Silicon covers Page 8 Protective hoses Page 10 G0 Black polyamide (PA) braiding S0 Red silicon foam W2 Black PA corrugated hose G1 G2 G3 G4 S1 Black silicon skin 30 mm W3 Black TPE corrugated hose PA braiding - red - orange - blue - grey S2 Black silicon skin 40 mm W7 Black PUR corrugated hose G8 Galvanised steel braiding W8 Galvanised steel spiral hose G9 Stainless steel braiding W9 Stainless steel spiral hose Codes for the maximum operating temperature or power Maximum operating temperature T
Max in °C (Heated lines with heating cable) Power in W/m Page 4 (Heated lines with heating tape) WAP 40 = 40 W/m 10 = 100°C 30 = 300°C WAL 10 = 10 W/m WAH 25 = 25 W/m 20 = 200°C 35 = 350°C 15 = 15 W/m 45 = 45 W/m 25 = 250°C 40 = 400°C 26 = 26 W/m 60 = 60 W/m Codes for the basic hose and fittings Page 14 PTFE-hose 5 Stainless steel tube 1 Exchangeable PTFE hose in hose 6 Exchangeable PTFE hose 2 n. a. 7 Stainless steel corrugated hose 3 PTFE basic hose + tube ends 8 Exchangeable PTFE hose + exchang. tube ends 4 Exchangeable PTFE hose + tube ends 9 Exchangeable PTFE hose + ferrule fittings

W A K G 2 3

Catalogue Heated Lines - 21326 -

2 3 X P 6

-

1 5 S T N D

Serial code Configuration STND = Standard product T y p e Special number Line length L (cm) Page 15

WAL

Page 4-5 Nominal diameter ND (mm) Page 15

WAH

Page 4-5 Sensor type Page 16

WAP

..P = Pt 100 (2 wire) ..B = Bimetal limiter Page 4-5 ..T = Pt 100 (3 wire) ..S = Thermal fuse

WEX

Page 6-7

WAKG

..Q = Pt 100 (4 wire) ..C = Capillary sensor ..E = Ex-Pt 100 ..M = Multiple sensors Page 8-9 ..K = Thermocouple type K (NiCr-Ni) ..W = Selectable sensors

WAKS

Page 8-9 ..J = Thermocouple type J (Fe-CuNi) PK = Pt 100+Thermocouple type K

WAKW

Page 10-11 Sensor quantity Page 16

WAF

Z.. = Double sensor Page 12 XX = No sensor D.. = Triple sensor

WAM

Page 13 YY = Without sensor (is an option) V.. = Quadruple sensor X.. = Single sensor F.. = Quintuple sensor
Note: Operating voltage (V) Page 16
All the descriptions and illustrations of the products in this catalogue are non-binding and correspond to our current state of knowledge. Winkler reserves the right to modify the products described here at any time and without prior notice if considered necessary for the purpose of further development or constructional reasons. 012 = 12 V 115 = 115 V 024 = 24 V 230 = 230 V 048 = 48 V 400 = 400 V 1W2 = selectable 115 V / 230 V

2
