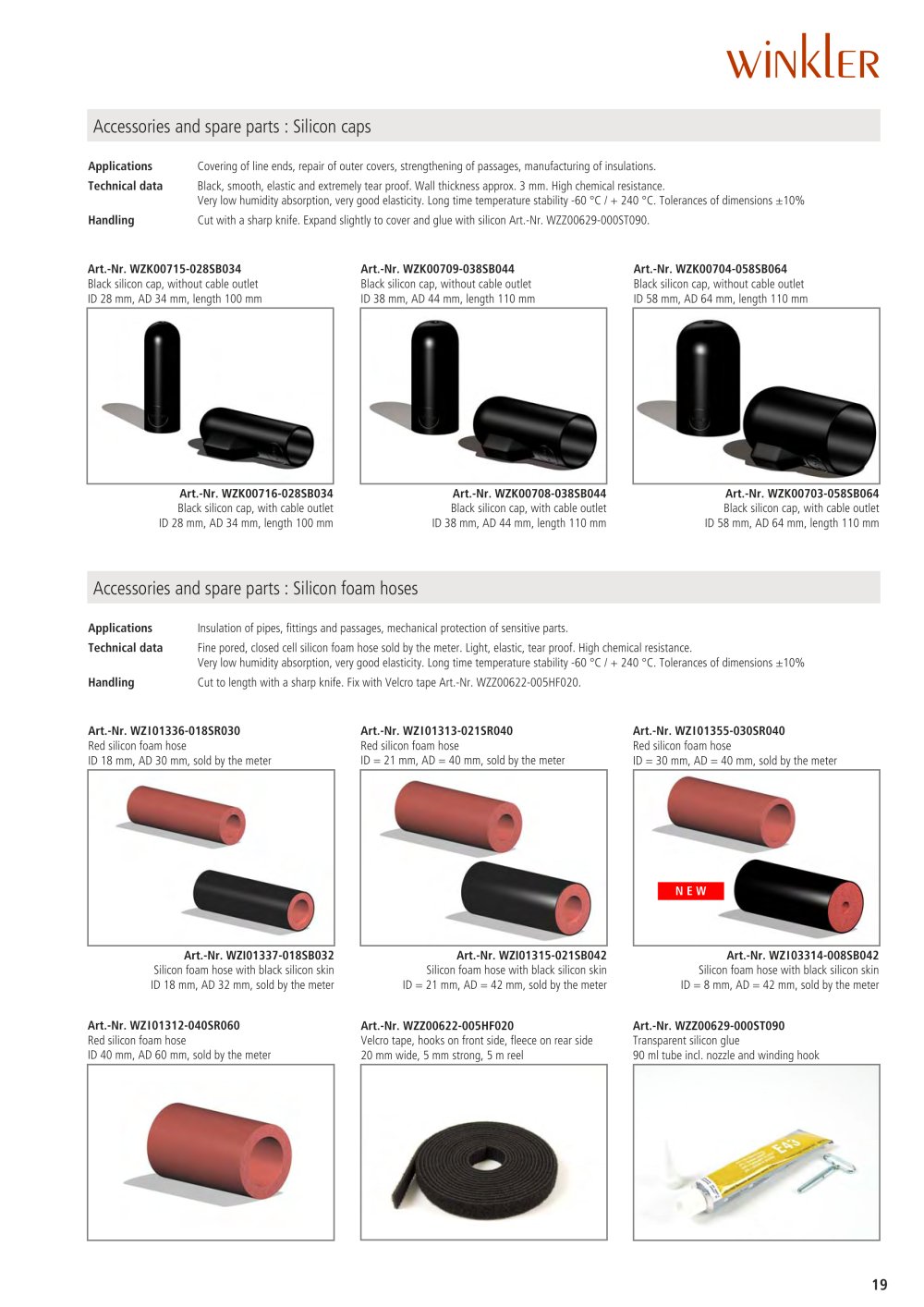

Accessories and spare parts : Silicon caps
Applications Covering of line ends, repair of outer covers, strengthening of passages, manufacturing of insulations. Technical data Black, smooth, elastic and extremely tear proof. Wall thickness approx. 3 mm. High chemical resistance. Very low humidity absorption, very good elasticity. Long time temperature stability -60 °C / + 240 °C. Tolerances of dimensions ±10% Handling Cut with a sharp knife. Expand slightly to cover and glue with silicon Art.-Nr. WZZ00629-000ST090. Art.-Nr. WZK00715-028SB034 Art.-Nr. WZK00709-038SB044 Art.-Nr. WZK00704-058SB064 Black silicon cap, without cable outlet ID 28 mm, AD 34 mm, length 100 mm Black silicon cap, without cable outlet ID 38 mm, AD 44 mm, length 110 mm Black silicon cap, without cable outlet ID 58 mm, AD 64 mm, length 110 mm Art.-Nr. WZK00716-028SB034 Art.-Nr. WZK00708-038SB044 Art.-Nr. WZK00703-058SB064 Black silicon cap, with cable outlet ID 28 mm, AD 34 mm, length 100 mm Black silicon cap, with cable outlet ID 38 mm, AD 44 mm, length 110 mm Black silicon cap, with cable outlet ID 58 mm, AD 64 mm, length 110 mm
Accessories and spare parts : Silicon foam hoses
Applications Insulation of
pipes, fittings and passages, mechanical protection of sensitive parts. Technical data Fine pored, closed cell silicon foam
hose sold by the meter. Light, elastic, tear proof. High chemical resistance. Very low humidity absorption, very good elasticity. Long time temperature stability -60 °C / + 240 °C. Tolerances of dimensions ±10% Handling Cut to length with a sharp knife. Fix with Velcro tape Art.-Nr. WZZ00622-005HF020. Art.-Nr. WZI01336-018SR030 Art.-Nr. WZI01313-021SR040 Art.-Nr. WZI01355-030SR040 Red silicon foam
hose ID 18 mm, AD 30 mm, sold by the meter Red silicon foam
hose ID = 21 mm, AD = 40 mm, sold by the meter Red silicon foam
hose ID = 30 mm, AD = 40 mm, sold by the meter N E W Art.-Nr. WZI01337-018SB032 Art.-Nr. WZI01315-021SB042 Art.-Nr. WZI03314-008SB042 Silicon foam
hose with black silicon skin ID 18 mm, AD 32 mm, sold by the meter Silicon foam
hose with black silicon skin ID = 21 mm, AD = 42 mm, sold by the meter Silicon foam
hose with black silicon skin ID = 8 mm, AD = 42 mm, sold by the meter Art.-Nr. WZI01312-040SR060 Art.-Nr. WZZ00622-005HF020 Art.-Nr. WZZ00629-000ST090 Red silicon foam
hose ID 40 mm, AD 60 mm, sold by the meter Velcro tape, hooks on front side, fleece on rear side 20 mm wide, 5 mm strong, 5 m reel Transparent silicon glue 90 ml tube incl. nozzle and winding hook
19
