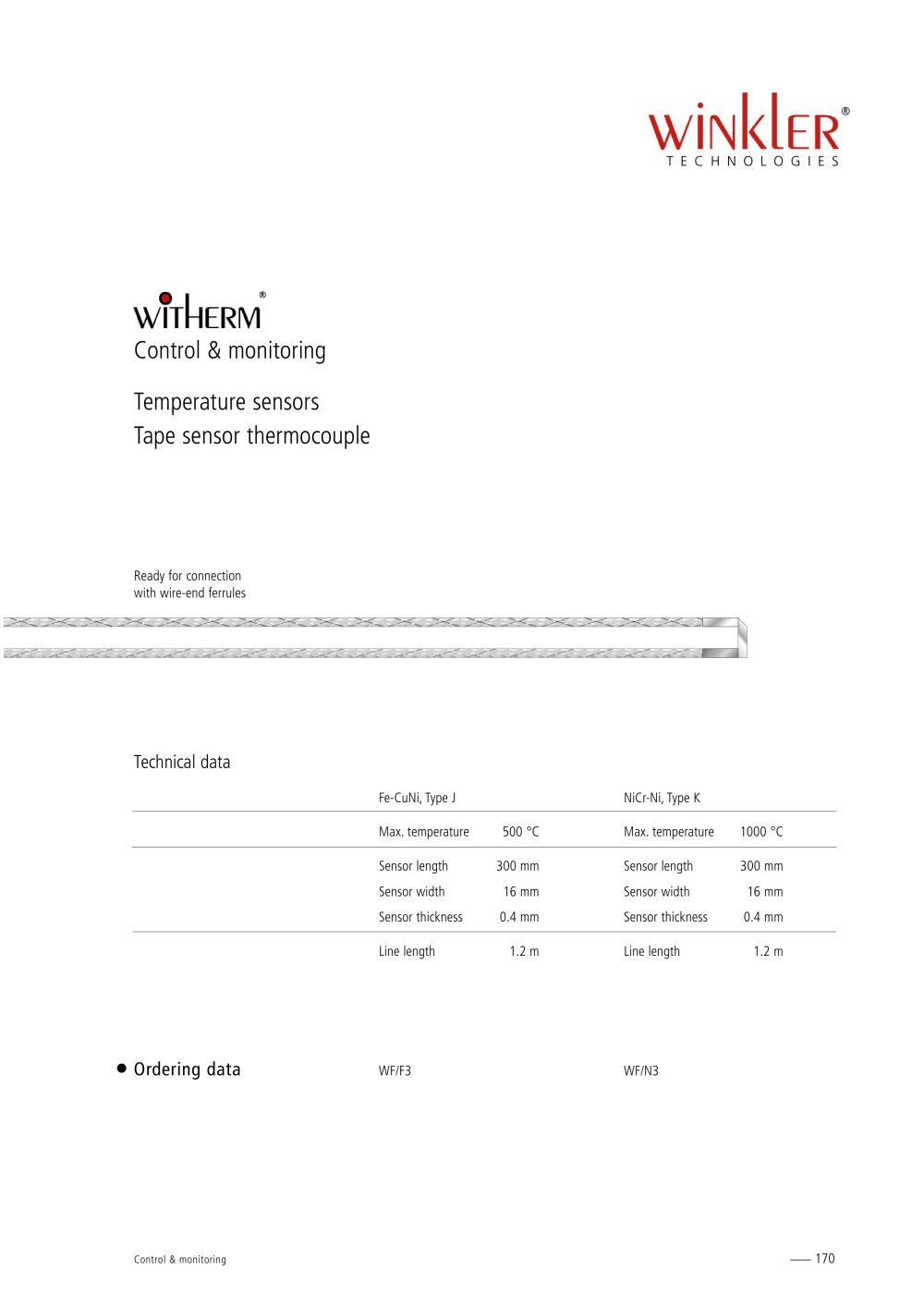

Catalogue Control Monitoring - 21326 Control & monitoring Temperature sensorsTape sensor thermocouple

Ready for connectionwith wire-end ferrules

Technical data

Fe-CuNi,Type JMax.temperature500 °CSensor length300 mmSensor width16 mm Sensor thickness0.4 mmLine length1.2 m NiCr-Ni,Type KMax.temperature1000 °CSensor length300 mmSensor width16 mm Sensor thickness0.4 mmLine length1.2 m

Ordering data

WF/F3 WF/N3
Control & monitoring ___ 170
