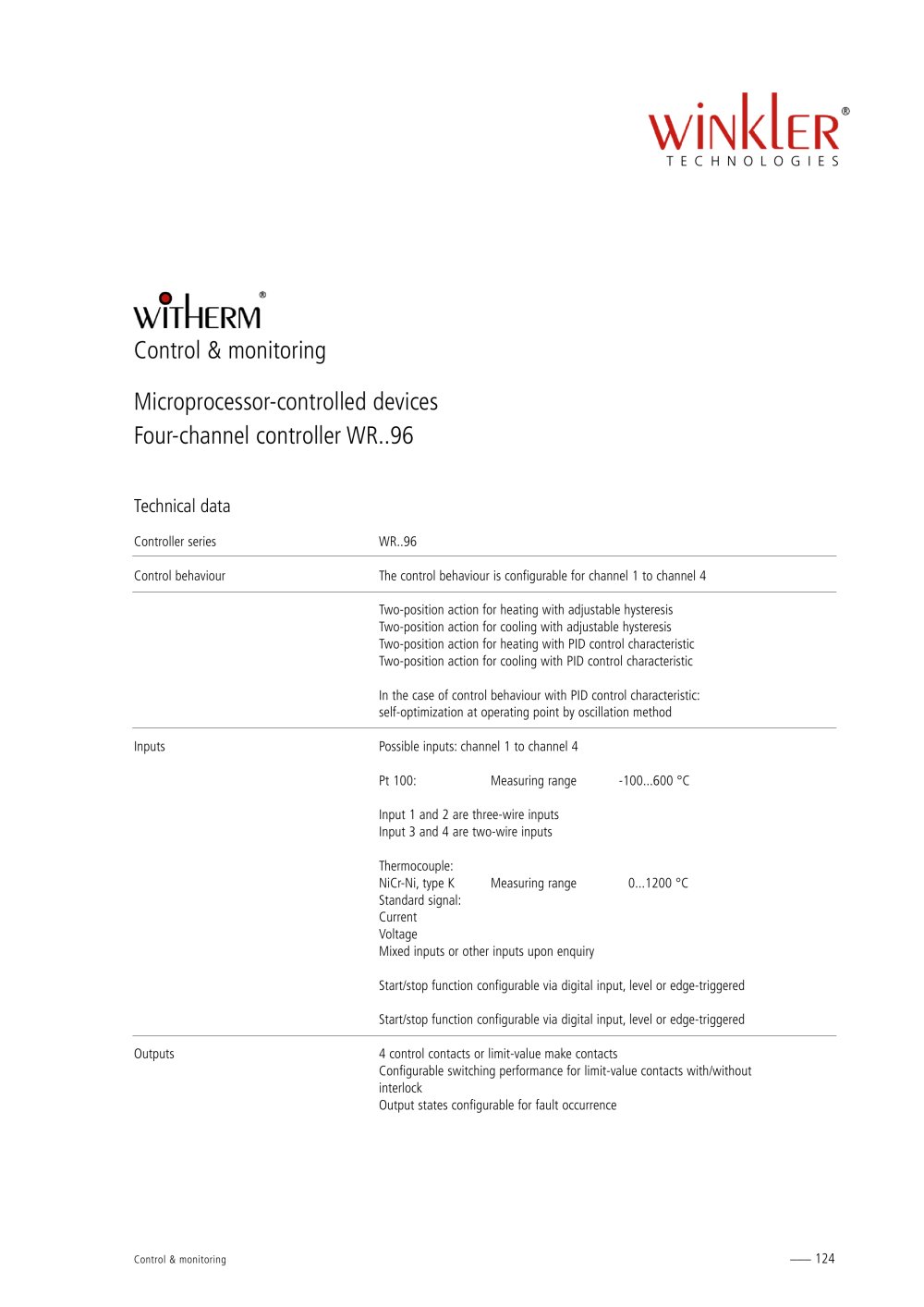

| WiNklER TECHNOLOGIES | |||||||||||||||||||
| wTtIherm Control & monitoring Microprocessor-controlled devices Four-channel controller WR..96 | |||||||||||||||||||
| Technical data Controller series WR..96 | |||||||||||||||||||
| Control behaviour The control behaviour is configurable for channel 1 to channel 4 | |||||||||||||||||||
| Two-position action for heating with adjustable hysteresis Two-position action for cooling with adjustable hysteresis Two-position action for heating with PID control characteristic Two-position action for cooling with PID control characteristic In the case of control behaviour with PID control characteristic: self-optimization at operating point by oscillation method | |||||||||||||||||||
| Inputs Possible inputs: channel 1 to channel 4 Pt 100: Measuring range -100...600 °C Input 1 and 2 are three-wire inputs Input 3 and 4 are two-wire inputs Thermocouple: NiCr-Ni, type K Measuring range 0...1200 °C Standard signal: Current Voltage Mixed inputs or other inputs upon enquiry Start/stop function configurable via digital input, level or edge-triggered Start/stop function configurable via digital input, level or edge-triggered | |||||||||||||||||||
| Outputs 4 control contacts or limit-value make contacts Configurable switching performance for limit-value contacts with/without interlock Output states configurable for fault occurrence | |||||||||||||||||||
| 124 | |||||||||||||||||||
| Control & monitoring | |||||||||||||||||||
