TECHNOLOGIES

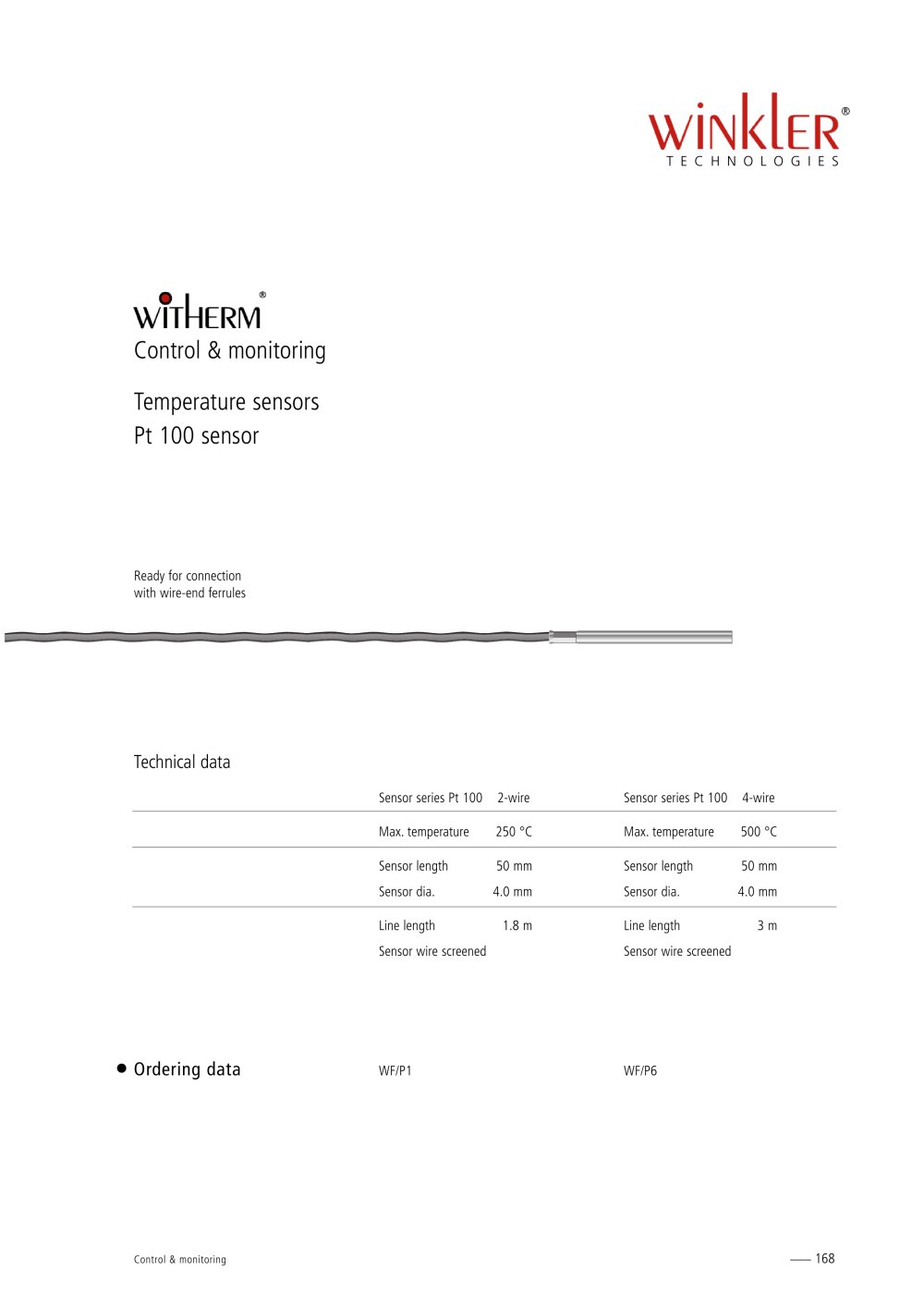

Catalogue Control Monitoring - 21326 Control & monitoring Temperature sensorsPt 100 sensor

Ready for connectionwith wire-end ferrules

Technical data

Sensor series Pt 100 2-wireMax.temperature250 °CSensor length50 mmSensor dia.4.0 mmLine length1.8 mSensor wire screened Sensor series Pt 100 4-wireMax.temperature500 °CSensor length50 mmSensor dia.4.0 mmLine length3 mSensor wire screened

Ordering data

WF/P1 WF/P6
Control & monitoring ___ 168
