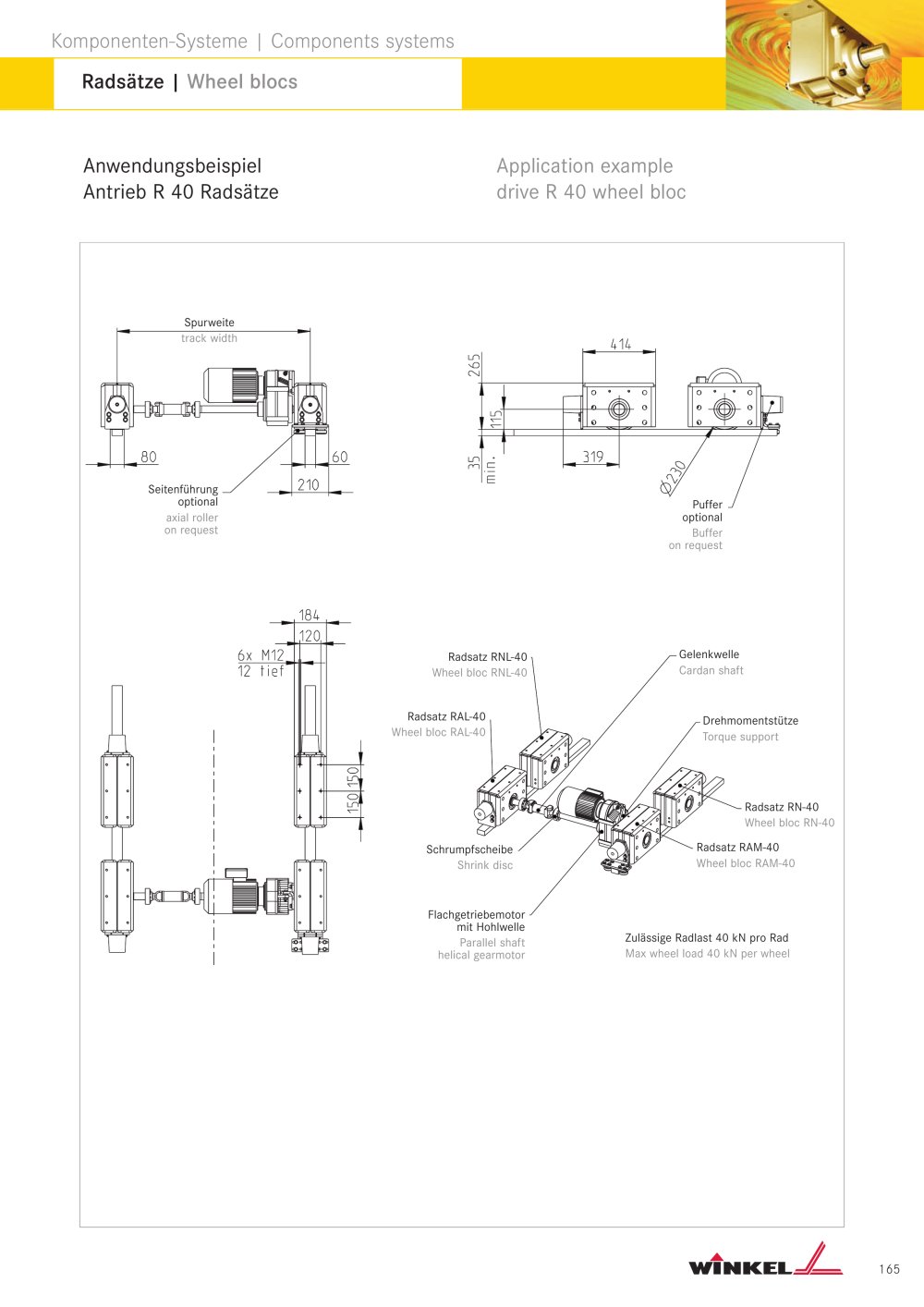

165 Spurweite track width Seitenführung optional axial roller on request Puffer optional Buffer on request Radsatz RNL-40 Wheel bloc RNL-40 Gelenkwelle Cardan shaft Drehmomentstütze Torque support Radsatz RAL-40 Wheel bloc RAL-40 Schrumpfscheibe Shrink disc Flachgetriebemotor mit Hohlwelle Parallel shaft helical gearmotor Radsatz RN-40 Wheel bloc RN-40 Radsatz RAM-40 Wheel bloc RAM-40 Zulässige Radlast 40 kN pro Rad Max wheel load 40 kN per wheel Anwendungsbeispiel Antrieb R 40 Radsätze Application example drive R 40 wheel bloc Komponenten-Systeme | Components systems Radsätze | Wheel blocs
