189
kg
mm
mm
mm
m/s
kW
W-PH1-500
500
600
1200
520
0,1 0,2 0,5
0,75 1,2 3,0
W-PH1-1000
1000
900
2000
1120
0,1 0,2 0,5
1,5 3,0 7,5
W-PH1-1500
1500
600
2000
1120
0,1 0,2
2,2 4,0
W-PH1-2500
2500
1000
2000
1120
0,1 0,2
4,0 7,5
kg
mm
mm
mm
m/s
kW
W-PH1-500
500
600
1200
520
0.1 0.2 0.5
0.75 1.2 3.0
W-PH1-1000
1000
900
2000
1120
0.1 0.2 0.5
1.5 3.0 7.5
W-PH1-1500
1500
600
2000
1120
0.1 0.2
2.2 4.0
W-PH1-2500
2500
1000
2000
1120
0.1 0.2
4.0 7.5

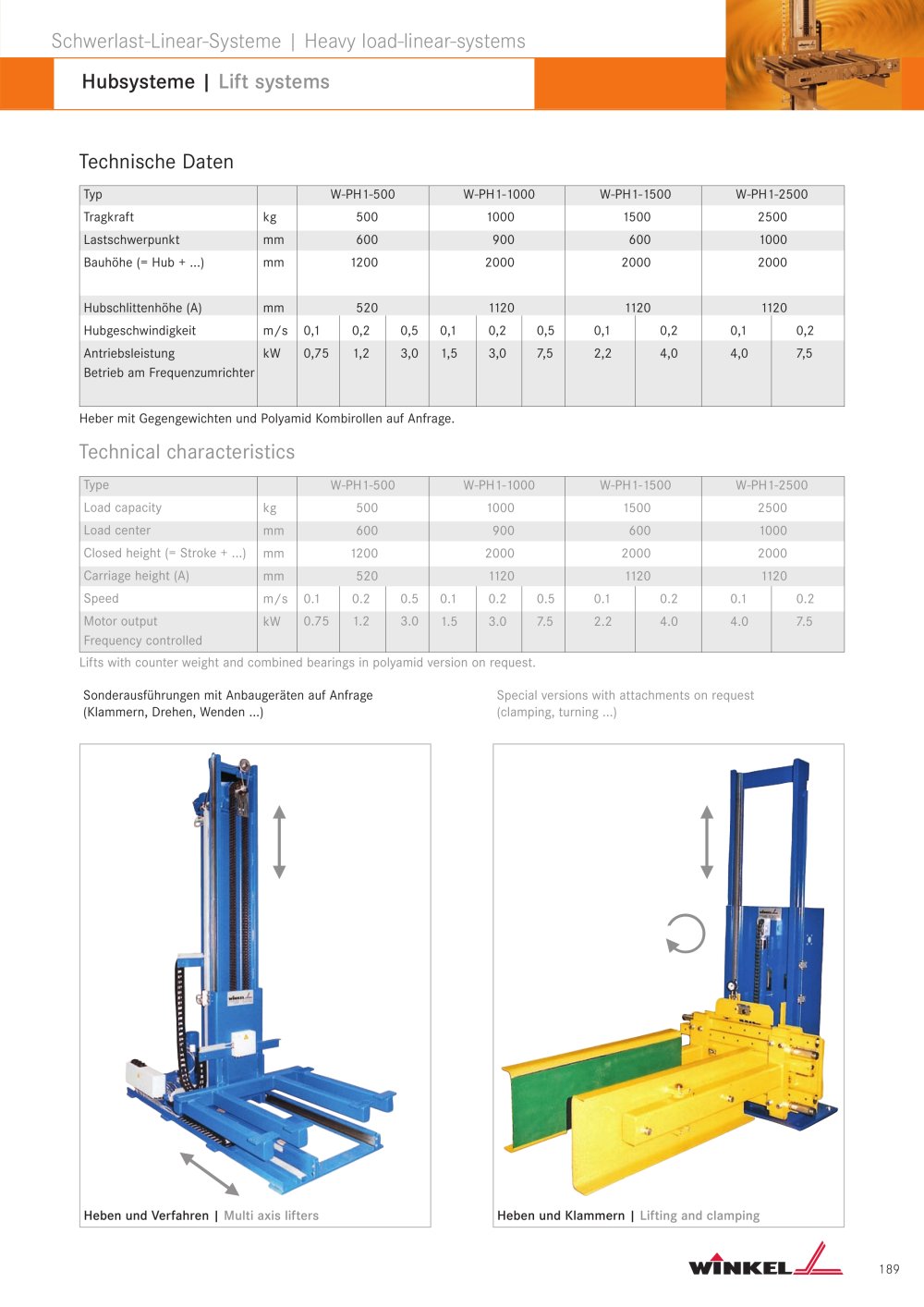

Schwerlast-Linear-Systeme | Heavy load-linear-systems
Hubsysteme | Lift systems
Technische Daten
Heben und Verfahren | Multi axis lifters Heben und Klammern | Lifting and clamping
Sonderausführungen mit Anbaugeräten auf Anfrage
(Klammern, Drehen, Wenden ...)
Heber mit Gegengewichten und Polyamid Kombirollen auf Anfrage.
Lifts with counter weight and combined bearings in polyamid version on request.
Special versions with attachments on request
(clamping, turning ...)
Technical characteristics
Typ
Tragkraft
Lastschwerpunkt
Bauhöhe (= Hub + ...)
Hubschlittenhöhe (A)
Hubgeschwindigkeit
Antriebsleistung
Betrieb am Frequenzumrichter
Type
Load capacity
Load center
Closed height (= Stroke + ...)
Carriage height (A)
Speed
Motor output
Frequency controlled
