307
343
280
108
Bestellcode | Order code
Typ Größe Antriebsart Horizontal Hublänge Gesamtlänge Zubehör
Type Size Driving-system Horizontal Stroke Overall-length Accessories
SLE 1 ZS H mm mm
Schwerlast-Linear-Systeme | Heavy load-linear-systems
Mehrachs-Linearsysteme | Multi-axis-units

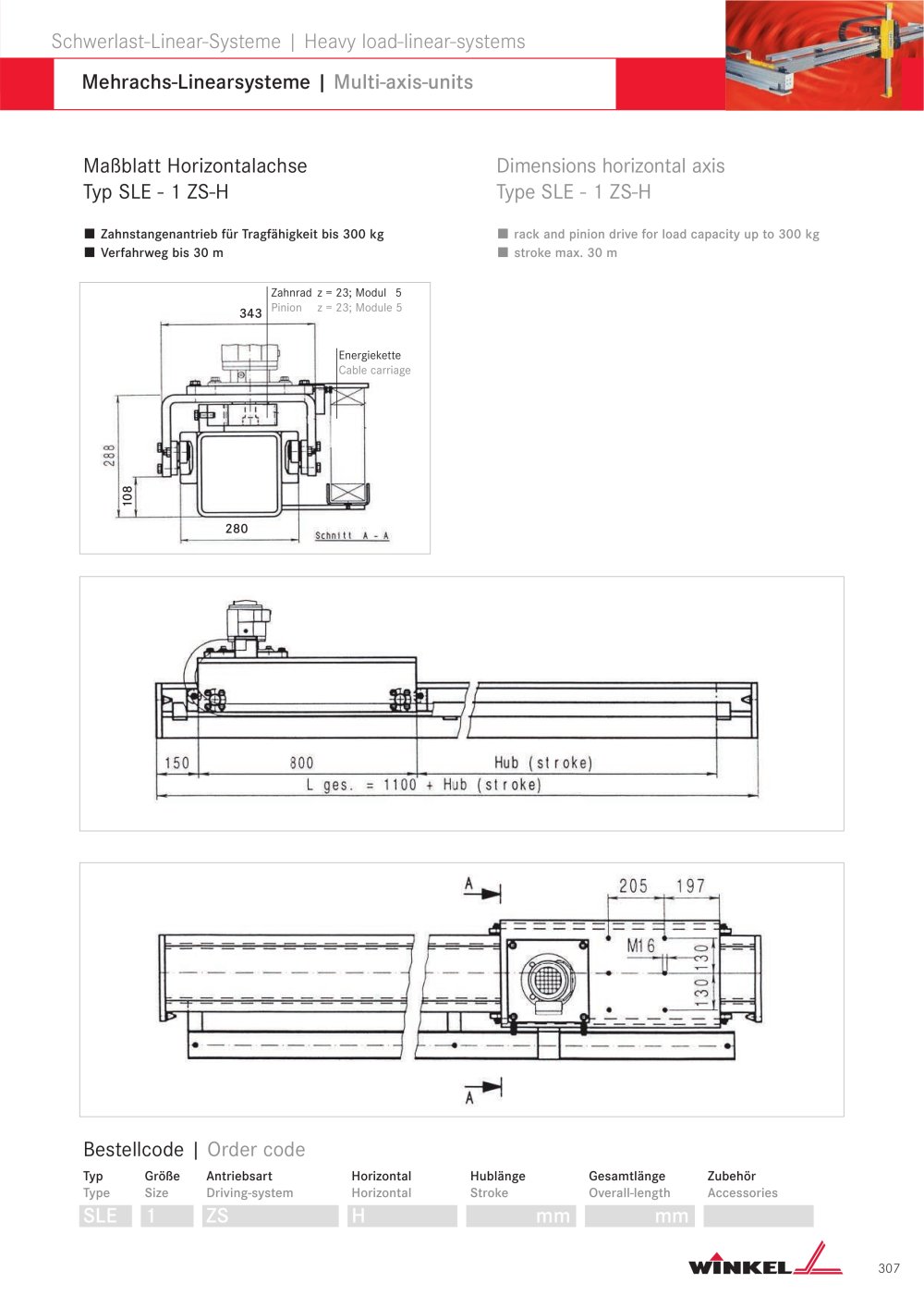

Maßblatt Horizontalachse
Typ SLE - 1 ZS-H
Zahnstangenantrieb für Tragfähigkeit bis 300 kg
Verfahrweg bis 30 m
Dimensions horizontal axis
Type SLE - 1 ZS-H
rack and pinion drive for load capacity up to 300 kg
stroke max. 30 m
Zahnrad z = 23; Modul 5
Pinion z = 23; Module 5
Energiekette
Cable carriage
